JF506E [02-UP] Automatic Transmission Master Rebuild Kit w/ Frictions

JF506E 09A Master Rebuild Kit for .09A and (JF506E) automatic transmissions, 2002 and later. Includes frictions, steels and gasket and seal set for a complete overhaul. 29 pieces in 8 components.

• Addresses clutch slip and seal failure by combining a full overhaul gasket set with six distinct friction packs and a steel clutch pack in a single order.
• This kit does NOT include bands, bushings, washers, pistons, or an Automatic Transmission Filter. Review your rebuild checklist and order those components separately before beginning teardown.
• Six friction packs covering low, low-reverse, direct, high, 2-4 brake, and reverse clutches are consolidated here, eliminating the need to source each pack from a different supplier.
• Contents: 7 R4AXEL low clutch frictions, 7 low-reverse frictions, 4 direct clutch frictions, 4 high clutch frictions, 3 2-4 brake frictions, 2 reverse frictions, 1 overhaul gasket kit, 1 steel clutch pack. 29 pcs, 13.66 lb.
• Before purchasing, confirm your unit code matches JF506E and that your application falls within the 02-UP range covered by the friction and gasket components in this kit.

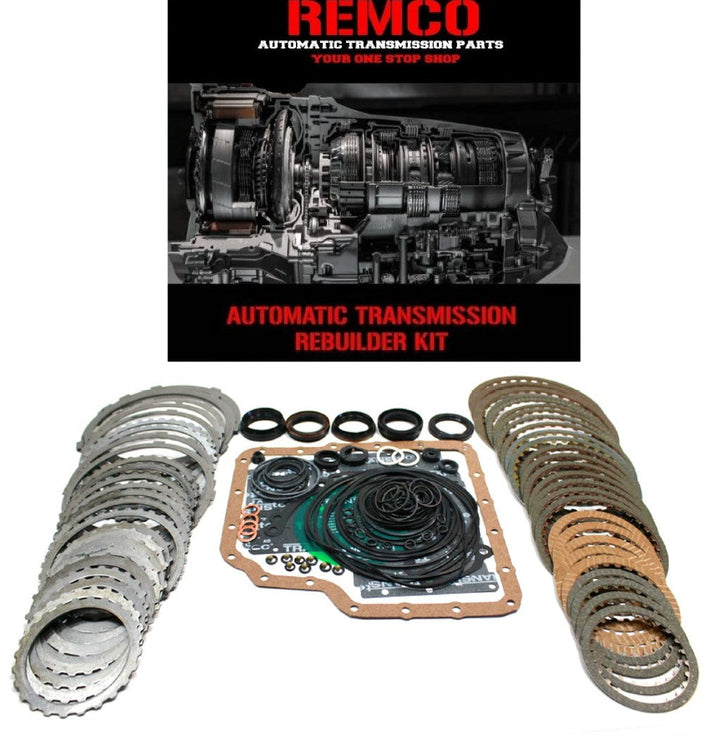

What's in the box

• 7 x Friction Clutch Plate, R4AXEL Low [.070 in Thick] 30 Teeth [5 7 16 OD]
• 7 x Friction Clutch Plate, Low Reverse [.071 in Thick] 32 Teeth [6.500 in OD] RE4F04A 4F20E
• 4 x Friction Clutch Plate, Direct [.069 in Thick] 24 Teeth [4 OD]
• 4 x Friction Clutch Plate, High [.063 in Thick] 24 Teeth [4.400 in OD]
• 3 x Friction Clutch Plate, 2-4 Brake [.063 in Thick] 32 Teeth [7 1-2od]
• 2 x Friction Clutch Plate, Reverse [.063 in Thick] 32 Teeth [6-1 8 OD]
• 1 x Steel Clutch Pack, JF506 High Performance
• 1 x Overhaul Gasket Kit

Compatible vehicles

• Fits Golf [02-05], GTI [02-05], Jetta [02-05], Sharan [00-10].
