RE5R05A [01-UP] Automatic transmission rebuild kit Woverhault kit clutches front band pistons pump bushing and filter

$434.99

re5r05a (v6) Automatic transmission rebuild kit Woverhault kit clutches front band pistons pump bushing and filter: Default Title

Default Title
Add to Wishlist

american expressapple paymasterpaypalshopify payvisa
Ask a Question
SKU: ark-dk12300
Availability: In Stock Pre order Out of stock
Categories: RE5R05A-V6 RE5R05A-V8 Smart Products Filter Index - Do not delete
Tags: re5r05a transmission rebuild kit automatic transmission
Description

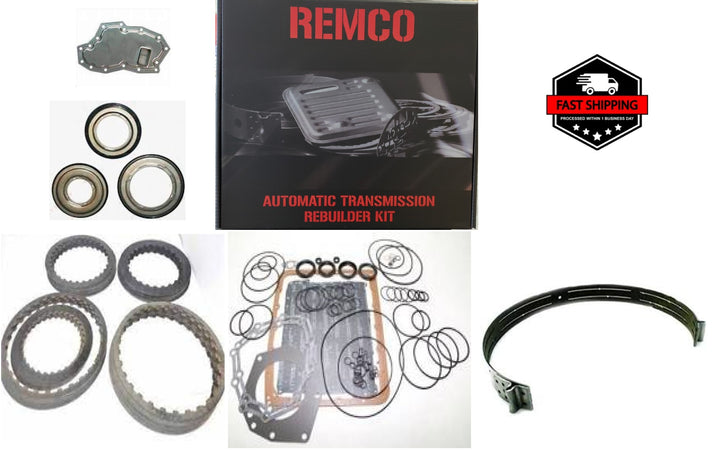

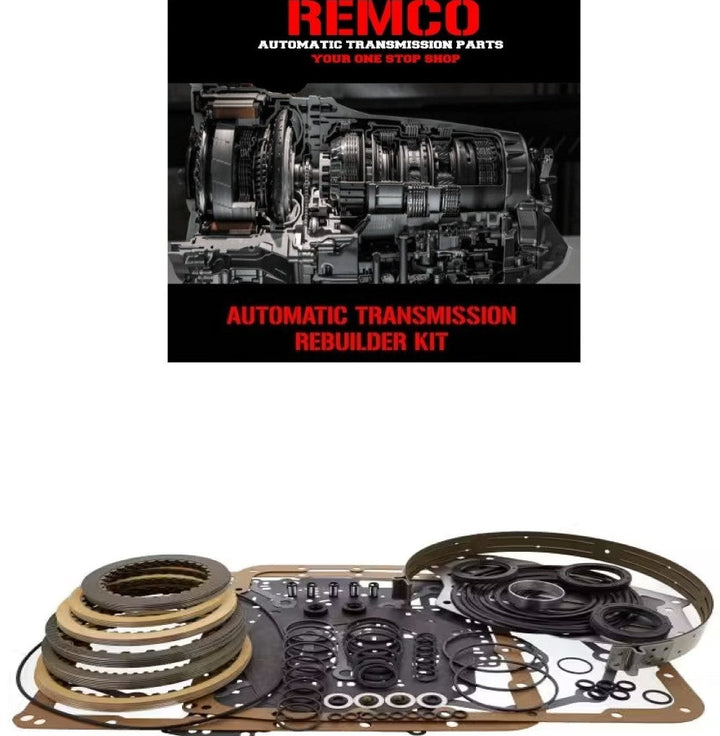

WHAT'S IN THE BOX:
QTY= 7 PART NO.= ADP-002155 DESCRIPTION= friction input interm clutch (.069)(60 teeth)(6 3 8od) 2005-up 5eat Automatic transmission
QTY= 4 PART NO.= ADP-002158 DESCRIPTION= friction low coast clutch (.063)(30 teeth)(5.216 od) 2005-up 5eat Automatic transmission
QTY= 5 PART NO.= ADP-002159 DESCRIPTION= re5r05a forward clutch .061 39t 5.784od 2002-up friction Automatic transmission
QTY= 6 PART NO.= ADP-002160 DESCRIPTION= friction direct clutch (.071) (24 teeth)(6 1 4 od) 2005-up 5eat Automatic transmission
QTY= 6 PART NO.= ADP-002729 DESCRIPTION= friction reverse cl .069 50 teeth 6.660 od 2002-up re5r05a Automatic transmission
QTY= 5 PART NO.= ADP-002759 DESCRIPTION= re5r05a high-low rev clutch 0.63 30t 4.915od 2002-up friction Automatic transmission
QTY= 1 PART NO.= BOX1 DESCRIPTION= box 16*16*2 Automatic transmission
QTY= 1 PART NO.= CBF-123700 DESCRIPTION= band flex overdrive (or coast)(1 1 4 wide) (flex) 2002-up re5r05a Automatic transmission
QTY= 1 PART NO.= CFI-005934 DESCRIPTION= Filter (2WD & 4x4) (16 Bolt Holes) With Rectangle Pick-Up 516 Tall 02-Up RE5R05A
QTY= 1 PART NO.= PK-K123000A DESCRIPTION= re5r05a bonded piston kit 3-pistons 2002-up Automatic transmission
QTY= 1 PART NO.= TED-T173002A DESCRIPTION= RE5R05A RE5R05A-V8 [01-UP] STK Automatic Transmission Overhaul Gasket Kit - Complete Set with High-Quality Seals Gaskets & Components

  • Transmission Rebuild Kit for re5r05a - replacement component designed for proper fit and function
  • Designed to support proper friction engagement, piston stroke and case sealing during a full transmission rebuild
  • Package Includes: one transmission rebuild kit as described, supplied loose for a full transmission rebuild
  • Steel and friction plate construction with formed rubber seals - designed for dependable service in the intended application. Ships at 10.65 lb, 16x16x2 in
  • Intended for rebuilders performing a complete overhaul. Soak the friction material in the specified fluid before assembly and set to the service manual range
