REMCO U660E Master Kit Less Steels Automatic Transmission [06-18]

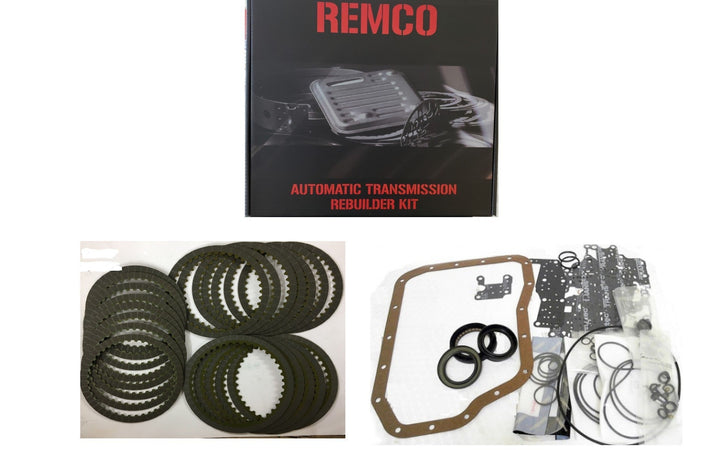

When a U660E automatic transmission needs friction and sealing work, this Master Kit Less Steels puts all 19 friction discs and the overhaul gasket kit in one box, without bundling steel plates you may already have on the bench. The three friction sets inside are cut to the published thickness and outside-diameter specs for this unit, so the stack heights land where the engineering calls for them, not close enough.

The B3 3-5-reverse brake set carries seven frictions at .07440 inch thick and 6.982 inch OD. The C2 2-clutch set, which handles the 4-5-6 drive apply, also runs seven discs. The B2 1st-reverse brake set rounds out the count with five frictions at .06240 inch thick and 7.242 inch OD. That adds up to 19 friction discs total. The fourth line item is the overhaul gasket kit for the U660E, which seals the transmission without pistons, since those are not part of this kit.

REMCO has been assembling transmission kits since 1991. Every order is built here by hand, piece by piece against the part list, and the same list ships inside the box so the technician at the bench can count and confirm before the case goes back together. Nothing is pre-packaged and sent without a check.

What this kit does not include: steel plates, a filter, a band, or pistons. If your teardown shows worn steels or a damaged filter, source those before you begin. The kit applies to the 06-18 date range; verify the unit code on the case matches U660E and that the year falls inside that window before placing the order. Packed weight is 4 lb.

• Covers the friction and sealing side of the rebuild in one order: 19 friction discs across three sets and a full overhaul gasket kit, all matched to U660E specs and verified at packing.
• No steel plates are included in this kit. If your job requires steels, order them separately before you start the teardown or your rebuild will stall mid-job.
• Three distinct friction sets address different apply elements: 7 discs for the B3 3-5-rev brake, 7 for the C2 4-5-6 drive clutch, and 5 for the B2 1st-rev brake, each cut to the thickness and OD spec for the unit.
• Box contains exactly 20 pieces: 7 B3 brake frictions (.07440t, 6.982 OD), 7 C2 clutch frictions, 5 B2 brake frictions (.06240t, 7.242 OD), and 1 overhaul gasket kit without pistons. Packed weight: 4 lb.
• Before ordering, confirm the unit code stamped on the case, the model year falls in the 06-18 range, and that you do not need steel plates, a filter, or a band, none of which are in this box.
