A518 [98-02] Automatic Transmission Master Rebuild Kit w/ Steels Frictions

A518 A618 46RE Master Rebuild Kit for 48RE, A618 and A518 automatic transmissions, 1998 to 2002. Includes high energy frictions, steels, band, gasket and seal set, bushings and Automatic Transmission Filter for a complete overhaul. 44 pieces in 11 components.

• A518 automatic transmission full rebuild service [98-02]: frictions, steels, gaskets, Automatic Transmission Filter, band, and bushing all in one box, reducing sourcing time.
• This kit does NOT include pistons, modulators, or thrust washers. Review your teardown list before ordering to confirm no additional parts are needed.
• 19 friction plates across four clutch sets cover od direct, forward, od brake, and direct clutch positions, including hi-energy and waved variants for specific application points.
• 44 pieces total: 8 od direct frictions, 8 forward/direct steels, 7 od direct steels, 5 forward frictions, 4 od brake frictions, 4 direct frictions, 4 od brake steels, 1 overhaul gasket kit, 1 Automatic Transmission Filter, 1 bronze pump bushing, 1 flex kickdown band. 11.6 lb.
• Confirm the transmission code, model year [98-02], and engine before ordering. This kit is specific to A518 units in that range and may not match earlier or later builds.

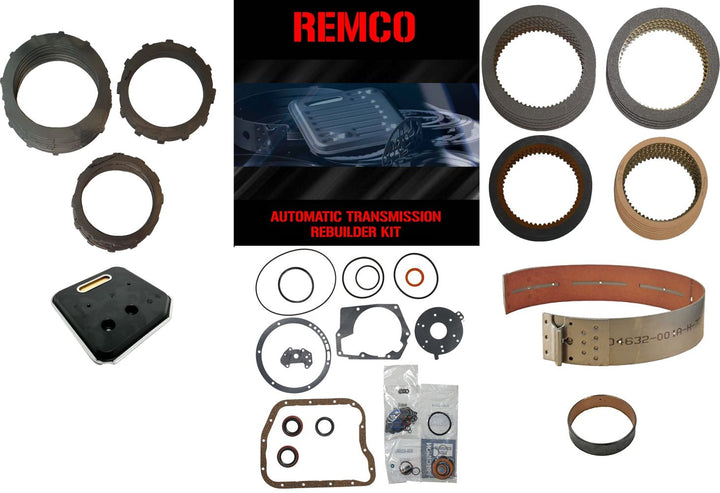

What's in the box

• 4 x Friction Clutch Plate, 087 OD Brake [Waved] High Energy
• 4 x Friction Clutch Plate, A727 Direct [.095 in Thick] [High Energy]
• 8 x Friction Clutch Plate, OD Direct 2-sided [.063 in Thick]
• 5 x Friction Clutch Plate, A727 Forward [.061 in Thick] 62 Teeth [Smooth]
• 8 x Steel Plate, A727 Forward Direct Clutch [.070 in Thick]
• 7 x Steel Plate, A500 Overdrive Direct Clutch [.069 in Thick]
• 4 x Steel Plate, A500 Overdrive Brake Clutch [.068 in Thick]
• 1 x Band, A727 A518 A618 FLEX Kickdown
• 1 x Overhaul Gasket Kit
• 1 x Bushing, A727 Pump Body [Bronze]
• 1 x Automatic Transmission Filter, [Metal Plastic] A727 A518 A618

Compatible vehicles

• Fits Ram 1500 1/2 Ton - Pickup [04-06], Ram 1500 1/2 Ton - Van [03-07], Ram 2500 Mega Cab 3/4 Ton - Pickup [06-07], Ram 2500HD 3/4 Ton - Pickup [04-07], Ram 3500 Mega Cab 1 Ton - Pickup [06-09], Ram 3500HD 1 Ton - Pickup [03-09], Ram 4500HD Pickup [05-07].
