A518 [89-02] Automatic Transmission Master Rebuild Kit w/ Steels Frictions

A518 A618 46RE Master Rebuild Kit for 48RE, A618 and A518 automatic transmissions, 1989 to 2002. Includes high energy frictions, steels, band, gasket and seal set, bushings and Automatic Transmission Filter for a complete overhaul. 48 pieces in 15 components.

• Covers the A518 automatic transmission rebuild from 1989 to 2002, supplying friction clutches, steels, bands, bushings, and Automatic Transmission Filters in one box.
• This kit does NOT include a modulator or thrust washers. Review your unit's parts list before ordering to confirm nothing else is needed for your job.
• Three bronze bushings are part of this kit: pump body, extension housing (1.690 ID), and direct drum with oil groove, covering the wear points most rebuilders address at teardown.
• Contents: 8 od direct clutch frictions, 5 forward clutch frictions, 4 direct clutch frictions, 4 od brake clutch frictions, 19 steels across three sets, 1 overhaul gasket kit, 2 bands, 3 bronze bushings, 2 Automatic Transmission Filters. 16.35 lb.
• Before ordering, verify the exact A518 model code on the unit, the year of the vehicle, and cross the 15 part numbers against your teardown checklist to avoid a second order.

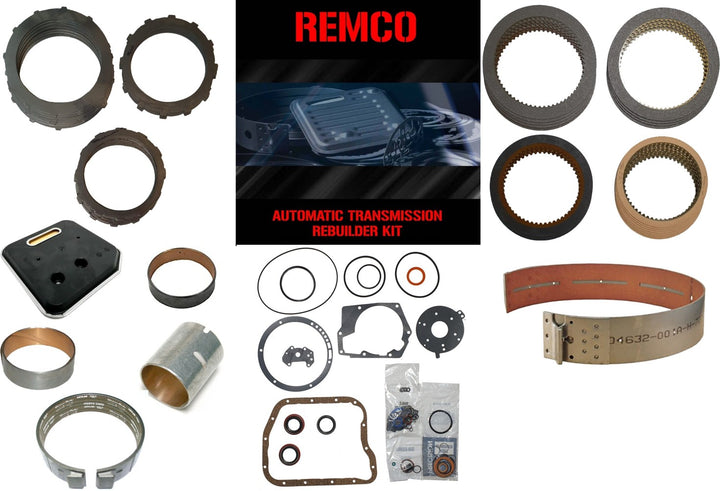

What's in the box

• 4 x Friction Clutch Plate, 087 OD Brake [Waved] High Energy
• 4 x Friction Clutch Plate, A727 Direct [.095 in Thick] [High Energy]
• 8 x Friction Clutch Plate, OD Direct 2-sided [.063 in Thick]
• 5 x Friction Clutch Plate, A727 Forward [.061 in Thick] 62 Teeth [Smooth]
• 8 x Steel Plate, A727 Forward Direct Clutch [.070 in Thick]
• 7 x Steel Plate, A500 Overdrive Direct Clutch [.069 in Thick]
• 4 x Steel Plate, A500 Overdrive Brake Clutch [.068 in Thick]
• 1 x Band, A727 A518 A618 FLEX Kickdown
• 1 x Band, A727 Rigid Reverse Solid Gas Engine [S 6.25 Drum] [Relined]
• 1 x Overhaul Gasket Kit
• 1 x Bushing, A727 Extension Hsg [1.690 in Id] [bronze]
• 1 x Bushing, A727 Direct Drum [W Oil Groove]
• 1 x Bushing, A727 Pump Body [Bronze]
• 1 x Automatic Transmission Filter, Large Dacron 97 A904 A500
• 1 x Automatic Transmission Filter, [Metal Plastic] A727 A518 A618

Compatible vehicles

• Fits Ram 1500 1/2 Ton - Pickup [04-06], Ram 1500 1/2 Ton - Van [03-07], Ram 2500 Mega Cab 3/4 Ton - Pickup [06-07], Ram 2500HD 3/4 Ton - Pickup [04-07], Ram 3500 Mega Cab 1 Ton - Pickup [06-09], Ram 3500HD 1 Ton - Pickup [03-09], Ram 4500HD Pickup [05-07].
