E4OD [89-95] Automatic Transmission Master Kit Performance HD Stage 1 Red

E4OD Master Rebuild Kit Performance Heavy Duty for E4OD automatic transmissions, 1989 to 1995. Built around Stage 1 Red Clutches and Reprogramming Kit. Includes Stage 1 performance frictions, steels, pistons, band, gasket and seal set, bushings, sealing rings and Automatic Transmission Filter for a complete overhaul. 26 pieces in 12 components.

• Steel plates across five clutch packs give this kit a complete steel foundation: 8 forward/direct, 4 low/reverse, 3 intermediate, 2 overdrive, and 2 coast plates included.
• This kit INCLUDES steels, so no separate steel set is needed. Verify the cast iron drum spec before ordering the coast clutch steels (60-tooth version is what ships).
• Stage 1 Performance Red Clutches, a reprogramming kit, intermediate band, flex band, molded servo piston, snap ring update, bushing kit, 2WD Automatic Transmission Filter, and overhaul gasket set are all in this box.
• Contents: 19 steel plates, 1 clutch pack, 1 overhaul gasket kit, 1 flex band, 1 servo piston, 1 bushing kit, 1 Automatic Transmission Filter 2wd, 1 reprogramming kit, 1 snap ring update. Total weight: 18.5 lb.
• Before ordering, confirm your unit code is E4OD or 4R100, that the build year falls within [89-95], and that your drum is cast iron for the coast clutch steels listed here.

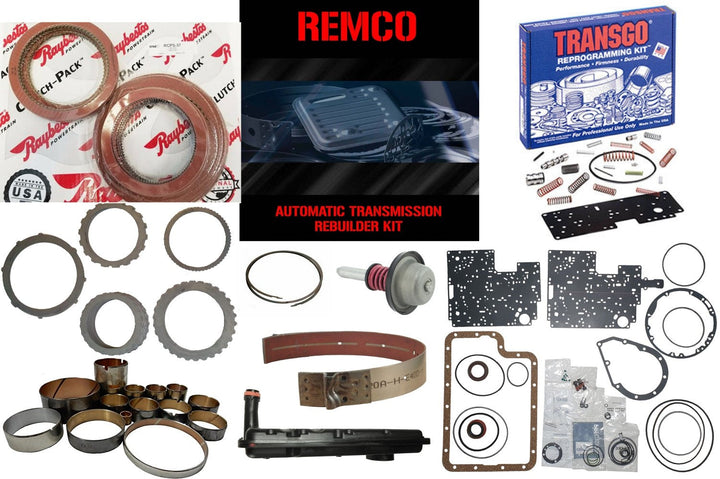

What's in the box

• 1 x Clutch Pack, Stage 1 Red Performance
• 8 x Steel Plate, C6 4R100 Forward Direct Clutch [.078 in Thick]
• 4 x Steel Plate, 5R110W Low Reverse Clutch [.068 in Thick]
• 3 x Steel Plate, 4R100 Intermediate Clutch .071 in Thick
• 2 x Steel Plate, 4R100 Overdrive Clutch .079 in Thick
• 2 x Steel Plate, 4R100 Coast Clutch .080 in thick [60 Teeth] [For Cast Iron Drum]
• 1 x Piston, 4R100 Interm [Band] Servo 2nd Des Molded
• 1 x Band, 4R100 Flex Intermediate
• 1 x Overhaul Gasket Kit
• 1 x Bushing Kit, 4R100 97
• 1 x Snap Ring, Update Holds OD Piston Return Spring In Drum Spiral Sure Lock
• 1 x Automatic Transmission Filter, 4R100 2WD

Compatible vehicles

• Fits E150 1/2 Ton Econoline - Van [89-95], E150 1/2 Ton Econoline Club Wagon [89-95], E250 3/4 Ton Econoline - Van [89-95], E350 1 Ton Econoline - Van [89-95], E350 1 Ton Econoline Club Wagon [89-95], F450 Super Duty 1 1/2 Ton Truck [90-95], Bronco [94-95], E250 3/4 Ton Econoline Club Wagon [89-91], F150 1/2 Ton - Pickup [89-95].
