E4OD [98-UP] Automatic Transmission Master Kit Performance HD Stage 1 Red

$606.50

4R100(98-UP) TRANSMISSION MASTER KIT PERFORMANCE STAGE-1 BAND BUSHINGS transg.o REPROGRAMING FILTER: Default Title

Default Title
Add to Wishlist

american expressapple paymasterpaypalshopify payvisa
Ask a Question
SKU: ARK-DK3600JX-P
Availability: In Stock Pre order Out of stock
Categories: E4OD / 4R100 Smart Products Filter Index - Do not delete
Tags: 4R100 rebuild overhaul steels frictions kit E4OD stage1 performance clutch pack snap ring servo piston bushing reprogramming filter band transmision automatica transmicion caja automatica juego de reparacion empaques sellos fricciones rojas acero
Description

E4OD Master Rebuild Kit Performance Heavy Duty for E4OD automatic transmissions, 1998 and later. Built around Stage 1 Red Clutches and Reprogramming Kit. Includes Stage 1 performance frictions, steels, pistons, band, gasket and seal set, bushings, sealing rings and Automatic Transmission Filter for a complete overhaul. 28 pieces in 12 components.

  • Stop buying pieces separately: this Performance Heavy Duty Master Rebuild Kit covers seals, steels, Stage 1 red clutches, band, bushings, Automatic Transmission Filter, piston, and reprogramming kit in one order for the 4R100 [98-UP].
  • STEELS ARE INCLUDED in this kit: 8 forward/direct, 5 low/reverse, 3 intermediate, 3 coast, and 2 overdrive steel plates across 5 separate applications. Verify counts match your drum configuration before ordering.
  • Stage 1 Performance Red Clutch Pack sets this kit apart from a standard Deluxe: the friction pack is spec'd for increased holding capacity, not the OE soft clutch material found in basic overhaul kits.
  • Kit contains 13 line items, 29 pieces total, 18.5 lb: overhaul gasket/seal set, Stage 1 red clutch pack, 21 steel plates (5 specs), flex intermediate band, band servo molded piston, bushing kit, 2WD Automatic Transmission Filter, snap ring update, and reprogramming kit.
  • Confirm before ordering: unit code is 4R100 (catalog reference E4OD), application begins 1998. Verify 2WD configuration since Automatic Transmission Filter included is the 2WD version; 4WD applications require a different Automatic Transmission Filter.

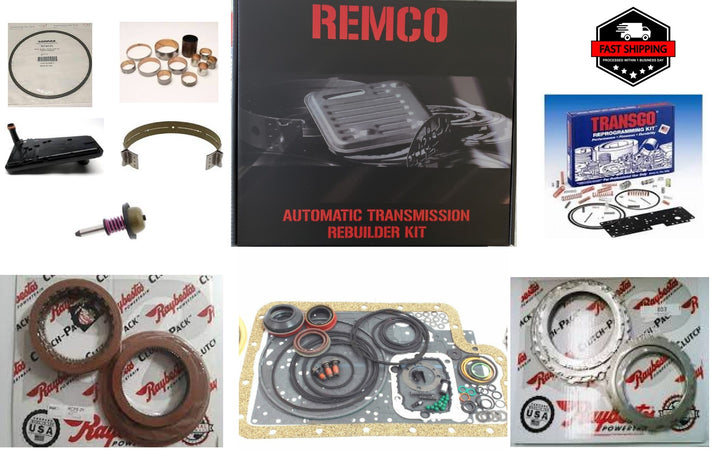

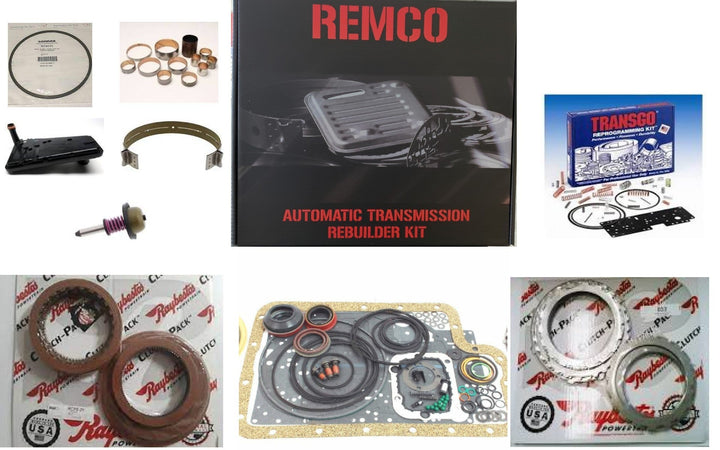

What's in the box

  • 1 x Clutch Pack, 4R100 STAGE 1 RED PERFORMANCE
  • 8 x Steel Plate, C6 4R100 Forward Direct Clutch [.078 in Thick]
  • 5 x Steel Plate, 5R110W Low Reverse Clutch [.068 in Thick]
  • 3 x Steel Plate, 4R100 Intermediate Clutch .071 in Thick
  • 3 x Steel Plate, 4R100 Coast Clutch .079 in thick [32 Teeth] [For Stamped Drum]
  • 2 x Steel Plate, 4R100 Overdrive Clutch .079 in Thick
  • 1 x Piston, 4R100 Interm [Band] Servo 2nd Des Molded
  • 1 x Band, 4R100 Flex Intermediate
  • 1 x Overhaul Kit, 4R100 TRANSMISSION
  • 1 x Bushing Kit, 4R100 97
  • 1 x Snap Ring, Update Holds OD Piston Return Spring In Drum Spiral Sure Lock
  • 1 x Automatic Transmission Filter, 4R100 2WD

Compatible vehicles

  • Fits Bronco [98], Expedition [98].
