5R110W [05-UP] Automatic Transmission Rebuilt Master Kit-Includes Seals Gaskets Friction Plates & Steel Complete Set

5R110W INTERM Complete Transmission Rebuild Kit [2003-UP]

OE-quality automatic transmission kit for service and rebuild applications.

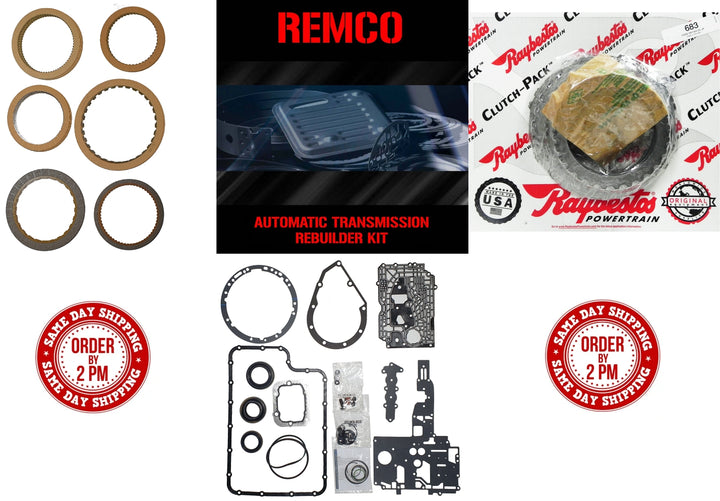

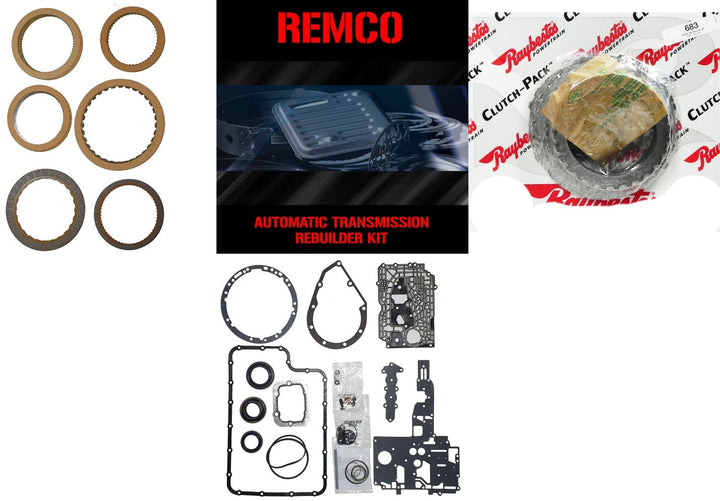

WHAT'S IN THE BOX:

- 5r110w Steel Clutch Pack (05-up) (ADA-000683)

- 4x 5r110w direct clutch (.078) 48 teeth (smooth w 32 grooves) 2003-up friction (ADP-002392)

- 6x 5r110w low reverse clutch (.078) 72 teeth (waffle) 2003-up friction (ADP-002393)

- 3x 5r110w overdrive brake clutch (.078) 32t (smooth) 2003-up friction (ADP-002395)

- 3x Coast clutch (.078) 59 teeth (starburst) 2003-up 5r110w friction (ADP-002396)

- 4x 5r110w forward clutch (.078) 76 teeth 2005-up friction (ADP-002397)

- 3x 5r110w interm clutch (.078) 96 teeth 2005-up friction (ADP-002398)

- 5R110W [03-UP] PRECISION Overhaul Gasket Kit - Complete Set with High-Quality Seals Gaskets and Components (TED-002469)

Vehicle Compatibility:

- uper Duty 1 Ton Econoline - Van [05-10] 5.4, 6.0, 6.8

- E150 1/2 Ton Econoline - Van [05-13] 4.6, 5.4

- E250 3/4 Ton Econoline - Van [05-13] 4.6, 5.4, 6.0

- Excursion [05-05] 5.4, 6.0, 6.8

- Super Duty 3/4 Ton - Pickup [05-10] 5.4, 6.0, 6.4, 6.8

- F350 Super Duty 1 Ton - Pickup [05-10] 5.4, 6.0, 6.4, 6.8

- F450 Super Duty 1 1/2 Ton Truck [05-10] 6.0, 6.4, 6.8

- F53 [05-08] 6.8L

- F550 Super Duty [05-13] 6.0, 6.4, 6.8

- F650 Super Duty [05-09] 5.9, 6.0, 6.7, 7.2, 7.3

- F750 Super Duty [05-09] 5.9, 6.0, 6.7, 7.2, 7.3L

- LL55 [06-06] 4.5L

Engines: 4.5L, 4.6L, 5.4L, 5.9L, 6.0L, 6.4L, 6.7L, 6.8L, 7.2L, 7.3L

• Transmission Rebuild Kit for 5R110W - replacement component designed for proper fit and function
• Designed to support proper friction engagement, piston stroke and case sealing during a full transmission rebuild
• Package Includes: piston kit, friction plates and steel plates. 9 items supplied together
• Steel and friction plate construction with formed rubber seals - designed for dependable service in the intended application. Ships at 18.65 lb, 16x16x2 in
• Intended for rebuilders performing a complete overhaul. Soak the friction material in the specified fluid before assembly and set to the service manual range
