RE4F04A [93-99] Automatic Transmission Banner Rebuild Kit Frictions

RE4F04A RE4F04B 4F20E Banner Rebuild Kit for RE4F04A automatic transmissions, 1993 to 1999. Includes frictions and gasket and seal set for a complete overhaul. 28 pieces in 8 components.

• Covers the complete friction and sealing service on the 4F20E transmission, addressing clutch pack wear and seal failure across all major clutch circuits.
• This kit does NOT include steel separator plates. If your job requires steels, check your parts list before ordering to avoid a return trip to the supplier.
• Seven distinct clutch sets are represented: low/reverse, forward, high clutch (two specs), overrun, and two reverse clutch sizes, matched to RE4F04A catalog specs.
• 28 friction plates total across 7 sets (7+5+4+4+3+2+2) plus 1 overhaul gasket kit without pistons. Kit weighs 9 lb and ships with a piece-count sheet inside the box.
• Before ordering, confirm your transmission code is 4F20E or RE4F04A and that your unit falls within the 1993-1999 application range. Steel plates are sold separately.

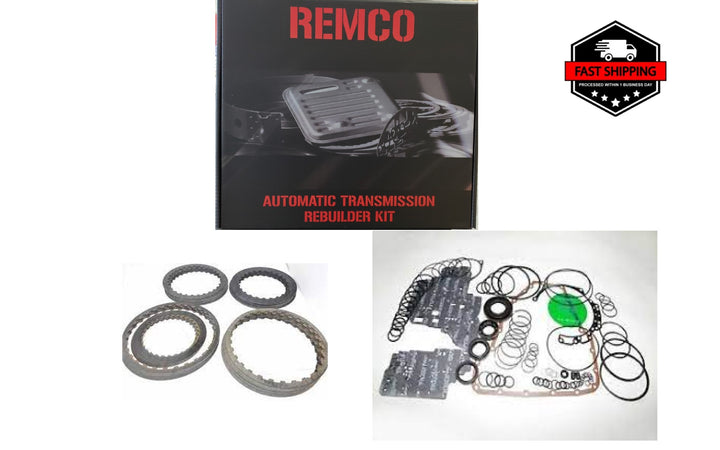

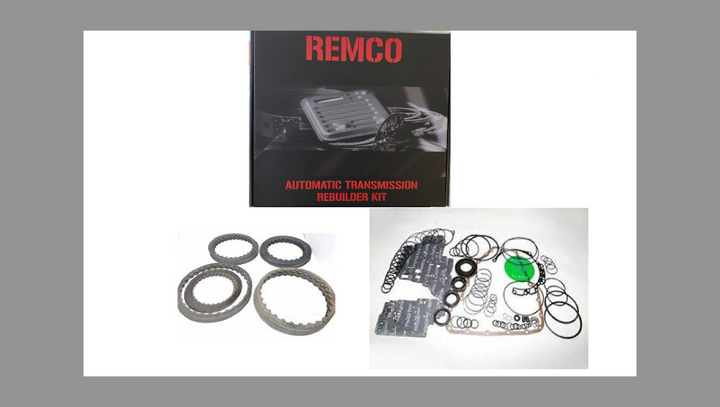

What's in the box

• 7 x Friction Clutch Plate, Low Reverse [.071 in Thick] 32 Teeth [6.500 in OD]
• 5 x Friction Clutch Plate, JF403E Forward [.063 in Thick] 32 Teeth [5.416 in OD]
• 4 x Friction Clutch Plate, 2002 JF506E High [.063 in Thick] 24 Teeth [4.400 in OD]
• 4 x Friction Clutch Plate, JF506E High [.063 in Thick] 24 Teeth [4.400 in OD]
• 3 x Friction Clutch Plate, JF403E Overrun [.063 in Thick] 20 Teeth [5.00 in OD]
• 2 x Friction Clutch Plate, JF403E Reverse [.063 in Thick] 28 Teeth [5.500 in OD]
• 2 x Friction Clutch Plate, Reverse [.063 in Thick] 28 Teeth [5.800 in OD]

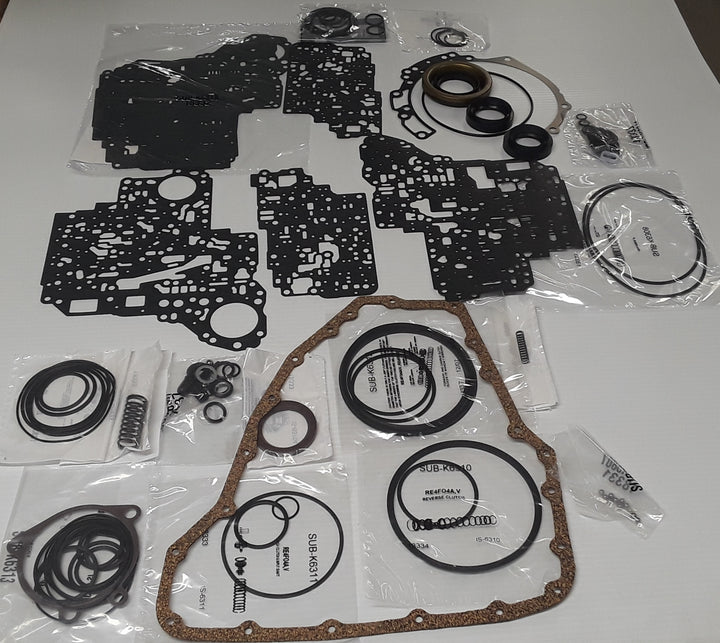

• 1 x Overhaul Gasket Kit, Without Pistons

Compatible vehicles

• Fits I30 [96-99], Altima [93-94], Maxima [93-03], Quest [93-94].
