TH700-R4 [82-93] Automatic Transmission Master Kit Performance HD Stage 1

TH700-R4 Master Rebuild Kit Performance Heavy Duty for (4L60) automatic transmissions, 1982 to 1993. Built around Stage 1 Red Clutches, Kolene Steels and Blue Pistons. Includes Stage 1 performance frictions, steels, pistons, band, gasket and seal set, bushings and Automatic Transmission Filter for a complete overhaul. 45 pieces in 15 components.

• Transmission Performance Heavy Duty Master Rebuild Kit for TH700-R4 - replacement component designed for proper fit and function
• Designed to support proper friction engagement, piston stroke and case sealing during a full transmission rebuild

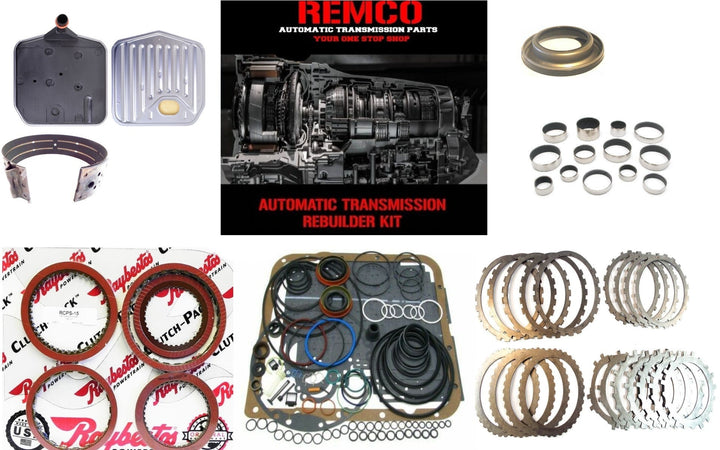

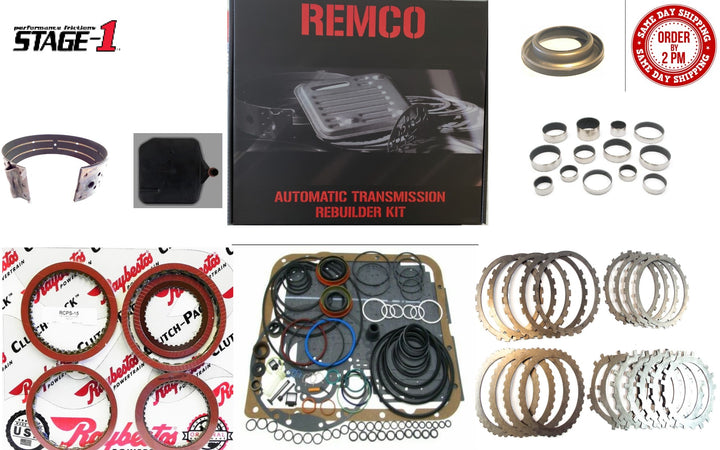

• Package Includes: gasket and seal set, friction plates, steel plates, band, bushing kit, Automatic Transmission Filter and piston kit. 45 pieces in 15 components
• Steel and friction plate construction with formed rubber seals - designed for dependable service in the intended application. Ships at 18.00 lb, 17.88x12.38x3 in
• Intended for rebuilders performing a complete overhaul. Soak the friction material in the specified fluid before assembly and set to the service manual range

What's in the box

• 6 x Friction Clutch Plate, stage-1 3-4 .080 in thick [High Performance Red]
• 5 x Friction Clutch Plate, 087 stage-1 Low Reverse [High Performance Red]
• 5 x Friction Clutch Plate, stage-1 Forward .070 in Thick
• 4 x Friction Clutch Plate, TH700R4-4L60E 4L65E stage-1 Reverse Input .070 in thick [High Performance Red]
• 2 x Friction Clutch Plate, stage-1 Overrun .078 in thick [High Performance Red]
• 5 x Steel Plate, 4L60E Kolene 3-4 Clutch .076 in thick [High Performance]
• 4 x Steel Plate, 250c 350 350c Low Reverse Clutch .068 in Thick
• 4 x Steel Plate, 090 4L60E Kolene Forward Flat
• 3 x Steel Plate, 4L60E Reverse Input Flat .078 in Thick
• 2 x Steel Plate, 4L60E Overrun Clutch .092 in Thick
• 1 x Piston, 4L60E 4th Clutch [Bonded BLUE PERFORMANCE] [Retros To]
• 1 x Band, 4L60E 4L65E Flex Red [2 Tang] [New Aftermarket]
• 1 x Overhaul Gasket Kit, Th
• 1 x Bushing Kit, 4L60E 4L65E [14 Pieces]
• 1 x Automatic Transmission Filter, 4L60E 93 All

Compatible vehicles

• Fits C1500 1/2 Ton - Pickup [88-92], C2500 3/4 Ton - Pickup [88-92], K1500 1/2 Ton 4WD - Pickup [88-92], K2500 3/4 Ton 4WD - Pickup [88-92], R2500 3/4 Ton - Pickup [88-89], Electra Estate Wagon [88-89], Estate Wagon [90], Roadmaster [91-92], Brougham [90-92], Commercial Chassis [85-93], Camaro [88-92], Caprice [88-92].
