4L60E [93-13] Automatic Transmission Super Kit Performance HD Stage 1 Red

4L60E Super Master Rebuild Kit Performance Heavy Duty for 4L60E, 4L65E and 4L70E automatic transmissions, 1993 to 2013. Built around Stage 1 Red Clutches, Kolene Steels, Blue Pistons and Reprogramming Kit. Includes Stage 1 performance frictions, steels, pistons, band, gasket and seal set, bushings, thrust washers and Automatic Transmission Filter for a complete overhaul. 30 pieces in 14 components.

• Covers overhaul, clutch, and steel replacement on 4L60E, 4L65E, and 4L70E units built from 1993 through 2013 in one consolidated order.
• This kit INCLUDES steels and frictions. It does NOT include a modulator or torque converter. Verify your exact build before ordering to avoid a return.
• Kolene-treated steels and a bonded high-performance blue piston kit are the technical core of this build, matched with a Stage-1 friction clutch pack for the same unit.
• 33 total pieces: 21 Kolene steels (5 grades), 2 Automatic Transmission Filters, 14-bushing kit, bonded piston kit, band, washer kit, overhaul seal kit, servo, reprogramming kit, cooler flush.
• Before ordering, confirm the transmission code stamped on the unit, the model year, and pan depth: this kit includes both a shallow-pan and a deep-pan Automatic Transmission Filter to cover both configurations.

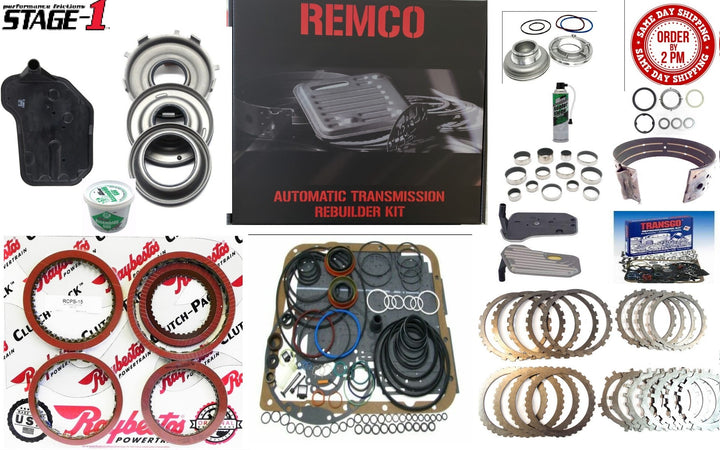

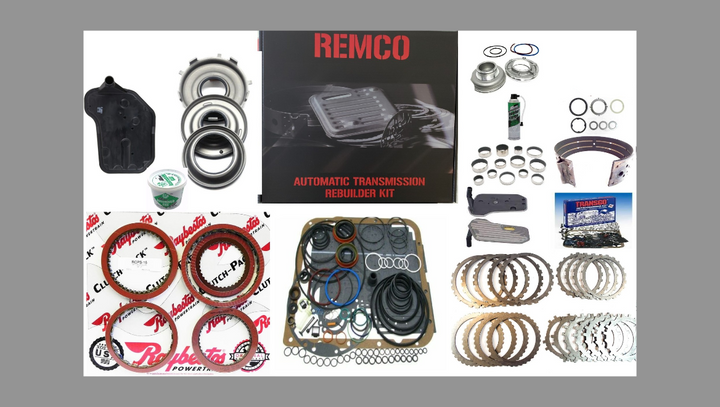

What's in the box

• 1 x Friction Clutch Pack, STAGE-1 PERFORMANCE
• 8 x Steel Plate, Kolene 3-4 Clutch .060 in Thick
• 4 x Steel Plate, 090 Kolene Forward Flat
• 4 x Steel Plate, Low Reverse Clutch .089 in thick [turbulator]
• 3 x Steel Plate, Reverse Input Flat .078 in thick [Turbulator Holes]
• 2 x Steel Plate, Overrun Clutch .092 in Thick
• 1 x Piston Kit, BONDED HIGH PERFORMANCE BLUE
• 1 x Piston, Servo 2nd
• 1 x Band, 4l65eband Flex 2-4 [2.280 in Wide] Or Red Pro-series
• 1 x Rebuild Kit, Transmission Overhaul M30
• 1 x Bushing Kit, [14 Pieces]
• 1 x Thrust Washer Kit, Kit
• 1 x Automatic Transmission Filter, Shallow Pan
• 1 x Automatic Transmission Filter, Deep Pan Transmission - Plastic Design

Compatible vehicles

• Fits Silverado 1500 [99-13], Sierra 1500 [99-13], Silverado 2500 [99-05], Sierra 2500 [99-05], C1500 [93-99], K1500 [93-99], C2500 [93-99], K2500 [93-99], Tahoe [95-10], Yukon [93-09], Suburban 1500 [93-08], Yukon XL 1500 [00-08], Avalanche [02-08], Escalade [99-06], Express [96-13], Savana [96-13], TrailBlazer [02-09], Envoy [03-09], Rainier [04-07], Ascender [03-08], 9-7X [05-09], Colorado [04-12] (diff. filter), Canyon [04-12] (diff. filter), H3 [05-10], SSR [03-06], Astro [93-05], Safari [93-05], S10 Blazer [93-05], Jimmy [93-05], S10 [93-04], Sonoma [93-04], Corvette [94-05], Camaro [94-02], GTO [04-06], Caprice [94-96], Roadmaster [94-96], Fleetwood [94-96], H2 [04-07].
