4L60E [93-03] Automatic Transmission Banner Rebuild Kit Performance HD HE

4L60E Banner Rebuild Kit Performance Heavy Duty for 4L60E, 4L65E and 4L70E automatic transmissions, 1993 to 2003. Built around Stage 1 Red Clutches. Includes Stage 1 performance frictions and gasket and seal set for a complete overhaul. 23 pieces in 6 components.

• Cover a full friction and seal service on 4L60E, 4L65E and 4L70E units built 1993 through 2003 without sourcing frictions separately - this kit delivers all 22 friction discs plus the overhaul seal set in one box.
• NO steel plates, NO Automatic Transmission Filter, NO band included. If your rebuild also needs steels or an Automatic Transmission Filter, add those separately before ordering - this kit is frictions and seals only.
• Every friction in this kit is a Stage 1 hi-perf red disc: 6 x 3-4 clutch .080, 5 x forward clutch .070, 5 x low-reverse .080, 4 x reverse input .070, and 2 x overrun .078 - thicknesses matched per apply.
• 23 total pieces: 22 hi-perf red stage-1 friction discs across five clutch packs plus 1 overhaul rebuild seal set M30 for 4L60E 93-UP; assembled and verified at REMCO against the printed parts list inside the box. Weight: 7.85 lb.
• Before ordering, confirm the transmission code stamped on the unit matches 4L60E, 4L65E or 4L70E and that the build date falls within 1993-2003 - year and application determine which performance heavy duty banner rebuild kit variant is correct.

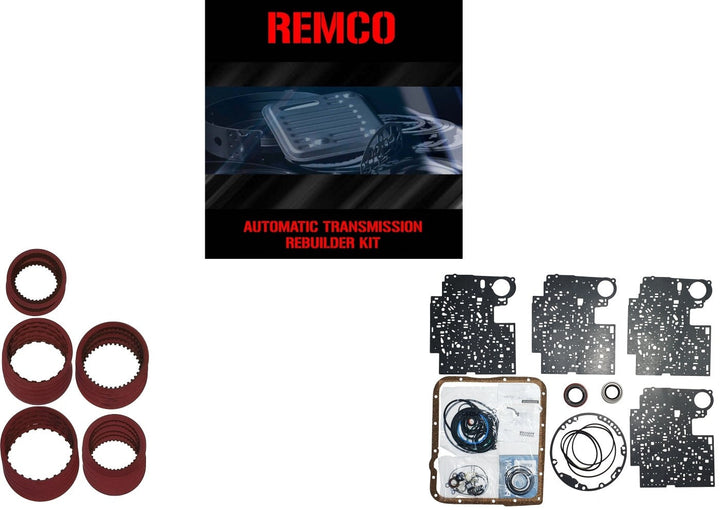

What's in the box

• 6 x Friction Clutch Plate, stage-1 3-4 .080 in thick [High Performance Red]
• 5 x Friction Clutch Plate, stage-1 Forward .070 in Thick
• 5 x Friction Clutch Plate, 087 stage-1 Low Reverse [High Performance Red]
• 4 x Friction Clutch Plate, TH700R4-4L60E stage-1 Reverse Input .070 in thick [High Performance Red]
• 2 x Friction Clutch Plate, stage-1 Overrun .078 in thick [High Performance Red]
• 1 x Rebuild Kit, Transmission Overhaul M30

Compatible vehicles

• Fits Silverado 1500 [99-03], Sierra 1500 [99-03], Silverado 2500 [99-03], Sierra 2500 [99-03], C1500 [93-99], K1500 [93-99], C2500 [93-99], K2500 [93-99], Tahoe [95-03], Yukon [93-03], Suburban 1500 [93-03], Yukon XL 1500 [00-03], Avalanche [02-03], Escalade [99-03], Express [96-03], Savana [96-03], TrailBlazer [02-03], Envoy [03], Ascender [03], SSR [03], Astro [93-03], Safari [93-03], S10 Blazer [93-03], Jimmy [93-03], S10 [93-03], Sonoma [93-03], Corvette [94-03], Camaro [94-02], Caprice [94-96], Roadmaster [94-96], Fleetwood [94-96].
