4L60E [04-UP] Automatic Transmission Super Kit Performance HD Stage 1 Red

4L60E Super Master Rebuild Kit Performance Heavy Duty for 4L60E, 4L65E and 4L70E automatic transmissions, 2004 and later. Built around Stage 1 Red Clutches, Kolene Steels and Blue Pistons. Includes Stage 1 performance frictions, steels, pistons, band, gasket and seal set, bushings, thrust washers and Automatic Transmission Filter for a complete overhaul. 47 pieces in 17 components.

• Kolene steels across multiple clutch packs combined with Stage-1 hi-perf red frictions address heat and wear that cause slippage and premature failure in high-demand applications.
• THIS KIT DOES INCLUDE steels, but confirm your unit code and model year match 4L60E 4L65E or 4L70E 04-UP before ordering; content is specific to this application.
• 27 friction and steel plates cover five clutch packs: 3-4, forward, low-reverse, reverse input, and overrun, giving complete clutch pack coverage in one order.
• 49 total pieces: 22 frictions, 16 steels, 14-bushing kit, washer kit, overhaul gasket kit, flex band, deep pan Automatic Transmission Filter, servo, bonded piston kit.
• Before ordering verify the exact transmission code on the unit, the model year, and whether your application is 4L60E, 4L65E, or 4L70E; this kit is spec'd for 04-UP units.

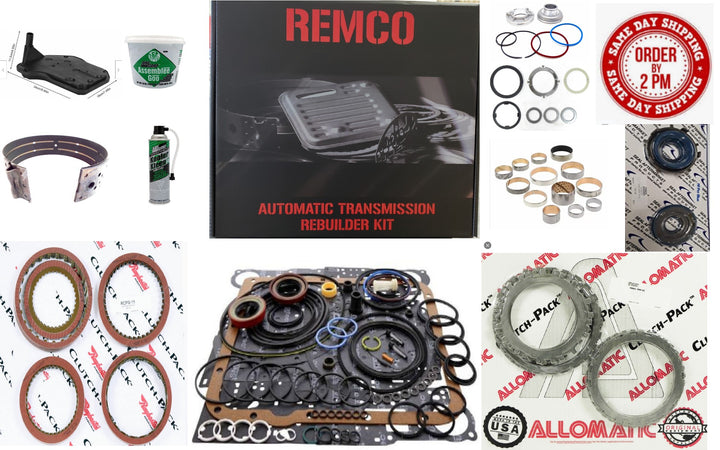

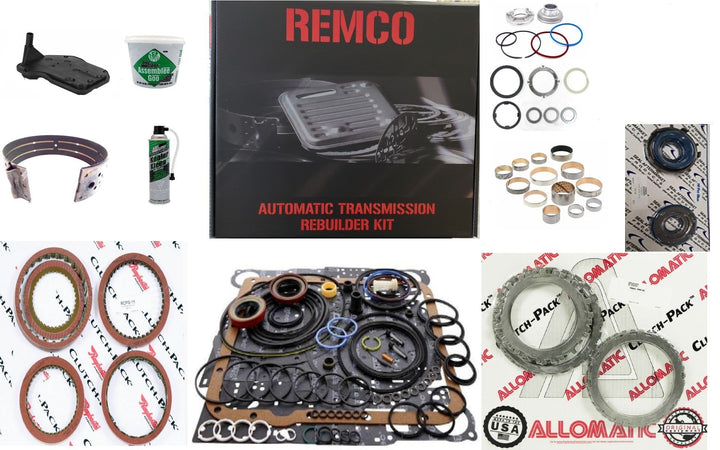

What's in the box

• 6 x Friction Clutch Plate, stage-1 3-4 .080 in thick [High Performance Red]
• 5 x Friction Clutch Plate, stage-1 Forward .070 in Thick
• 5 x Friction Clutch Plate, 087 stage-1 Low Reverse [High Performance Red]
• 4 x Friction Clutch Plate, TH700R4-4L60E stage-1 Reverse Input .070 in thick [High Performance Red]
• 2 x Friction Clutch Plate, stage-1 Overrun .078 in thick [High Performance Red]
• 5 x Steel Plate, Kolene 3-4 Clutch .076 in thick [High Performance]
• 4 x Steel Plate, 250c 350 350c Low Reverse Clutch .068 in Thick
• 4 x Steel Plate, 090 Th Forward Flat
• 3 x Steel Plate, Reverse Input Flat .078 in Thick
• 2 x Steel Plate, Overrun Clutch .092 in Thick
• 1 x Piston Kit, BONDED HIGH PERFORMANCE BLUE
• 1 x Piston, Servo 2nd
• 1 x Band, Flex 2-4 [2.620 in Wide] [red Lining] Aftermarket
• 1 x Overhaul Gasket Kit
• 1 x Bushing Kit, [14 Pieces]
• 1 x Thrust Washer Kit, Kit
• 1 x Automatic Transmission Filter, Deep Pan Transmission - Plastic Design

Compatible vehicles

• Fits Silverado 1500 [04-13], Sierra 1500 [04-13], Silverado 2500 [04-05], Sierra 2500 [04-05], Tahoe [04-10], Yukon [04-09], Suburban 1500 [04-08], Yukon XL 1500 [04-08], Avalanche [04-08], Escalade [04-06], Express [04-14], Savana [04-14], TrailBlazer [04-09], Envoy [04-09], Rainier [04-07], Ascender [04-08], 9-7X [05-09], Colorado [04-12] (diff. filter), Canyon [04-12] (diff. filter), H3 [05-10], SSR [04-06], Astro [04-05], Safari [04-05], S10 Blazer [04-05], Jimmy [04-05], S10 [04], Sonoma [04], Corvette [04-05], GTO [04-06], H2 [04-07].
