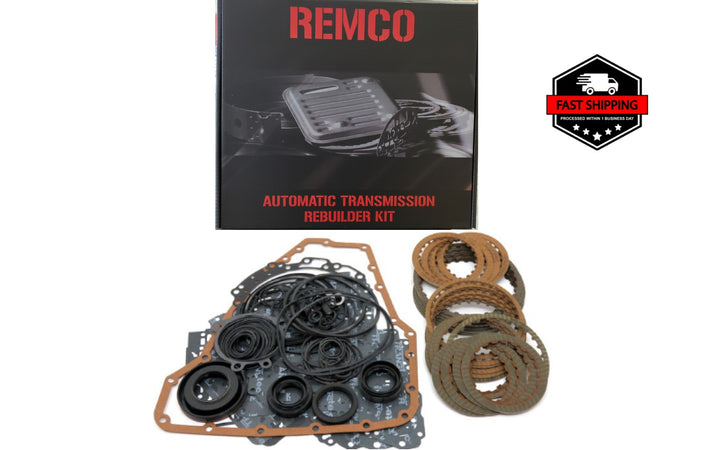

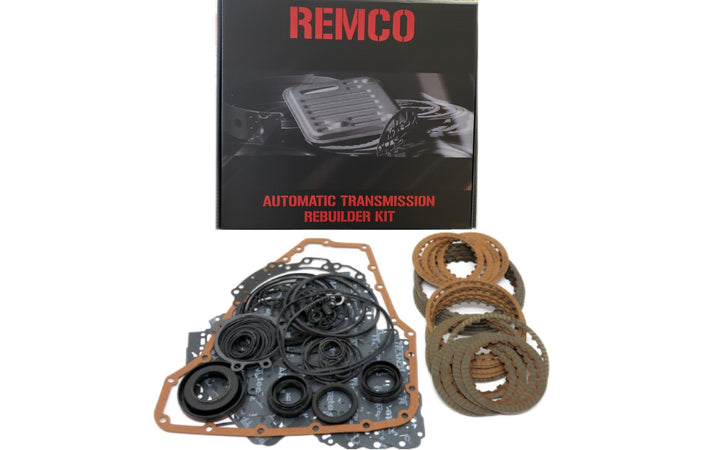

RL4F03A RE4F03A [91-06] Automatic Transmission Banner Rebuild Kit

RL4F03A RE4F03A Banner Rebuild Kit for RE4F03A automatic transmissions, 1991 to 2006. Includes frictions and gasket and seal set for a complete overhaul. 29 pieces in 8 components.

• Stop hunting for individual friction plates one by one: this kit consolidates 29 friction discs across 6 clutch packs into a single order for the RL4F03A and RE4F03A.
• No steel plates, no Automatic Transmission Filter, no bands are included in this kit - verify your parts list before ordering so you are not waiting on missing components to finish the job.
• Every kit is assembled at REMCO by hand, piece by piece, then checked against its own parts list before the box is sealed - the same list ships inside the box with your order.
• 29 friction plates total: 5 forward clutch, 5 low-rev clutch 91-UP, 5 low-rev clutch 97-UP, 4 high clutch exc 1.6L, 4 high clutch 1.6L, 3 overrun clutch, 2 reverse clutch, 1 overhaul gasket set. 9 lb.
• Confirm the transmission code, production year, and engine displacement - especially for high clutch selection, where 1.6L and non-1.6L units take different friction plates in this kit.

What's in the box

• 5 x Friction Clutch Plate, re4f03v Low Reverse [.07730 Teeth 5.940 in OD] 8
• 5 x Friction Clutch Plate, rl4f03v Low Reverse [.079 in Thick 30 Teeth 5.895 in OD] 7 97
• 5 x Friction Clutch Plate, Forward [.071 in Thick 30 Teeth [4.970 in OD] re4f03v]
• 4 x Friction Clutch Plate, High [.079 in Thick] 20 Teeth [4.190 in OD] [.170 in Eeth] 1.6l V
• 4 x Friction Clutch Plate, V High [.063 in Thick] 20 Teeth [4.190 in OD] [.265 in Exc 1.6l]
• 3 x Friction Clutch Plate, rl4f03v Overrun [.063 in Thick] 18 Teeth [4.610 in OD]
• 2 x Friction Clutch Plate, Reverse [.077 in Thick] 18 Teeth [5.140 in OD] rl4f03v
• 1 x Overhaul Gasket Kit, RL4F03ARE4F03ARE4F03V Upautomatic Transmission

Compatible vehicles

• Fits NX [91-93].
