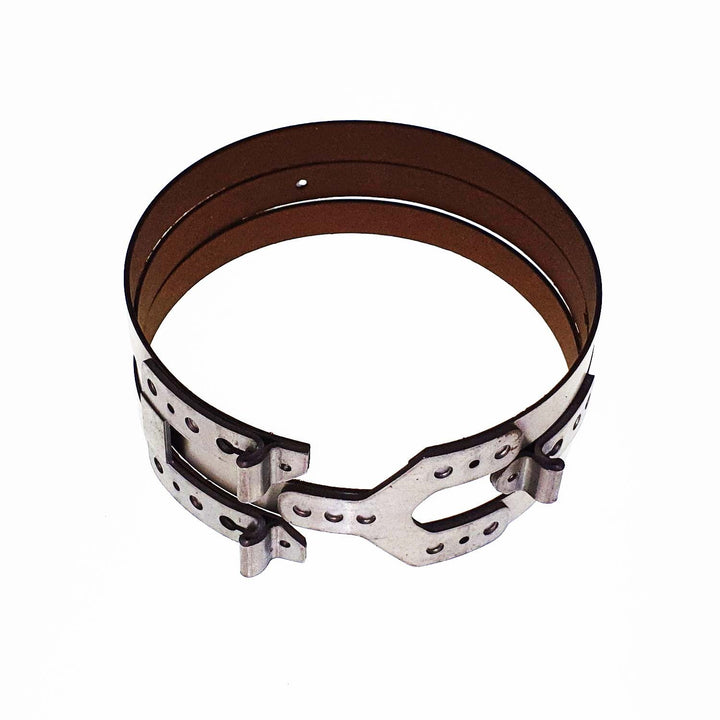

A4LD [91-UP] Automatic Transmission Rear Band Rigid Intermediate (4.0L)

When the intermediate band in an A4LD automatic transmission is worn, glazed, or broken, second-gear apply becomes soft or erratic and shift feel degrades noticeably. This listing covers one rigid double wrap intermediate band built for 4.0L A4LD applications from 1991 through 1992, and that specific combination is what sets it apart from other A4LD band listings in the catalog.

The double wrap design means the band encircles the drum more completely than a single wrap band, spreading apply pressure across a wider contact area. That broader contact reduces the peak stress at any single point on the drum surface, which matters in an apply circuit that sees repeated on-off cycling every time the transmission shifts through second gear. A rigid band maintains its geometry under that load without the flex that can cause uneven lining wear or premature failure.

This is a single piece, not a kit. It does not include steels, frictions, an Automatic Transmission Filter, gaskets, seals, or any other component. If your rebuild requires those parts, they need to be sourced separately. The band is pulled individually, checked against the item record, and the shipping weight is 1 lb.

Before placing the order, confirm three things: the transmission carries the A4LD designation, the vehicle uses the 4.0L engine, and the unit was built in 1991 or 1992. A4LD transmissions outside that model year window or paired with a different engine displacement may require a different band specification. REMCO has worked in automatic transmission parts since 1991, and every piece that ships is verified before it goes out.

• This rigid intermediate band addresses slippage and wear in the intermediate apply circuit of A4LD units, helping restore firm, consistent clutch engagement during shifts.
• This listing is for the band only. It does not include friction discs, steel plates, Automatic Transmission Filter, gaskets, or any other rebuild components. Review your parts list before ordering.
• The double wrap rigid construction distributes clamping force evenly across the drum surface, reducing the chance of distortion or uneven wear that a single wrap band can cause in high-load apply conditions.
• One rigid double wrap intermediate band, 4.0L application, shipped at 1 lb. The part is pulled and checked individually before it leaves the warehouse.
• Verify your transmission code and confirm the 4.0L engine and the 1991-1992 build date before ordering. A4LD units outside this range may use a different band specification.

What's in the box

• 1 x Band, A4LD RIGID Intermediate Double Wrap 92

Compatible vehicles

• Fits Mustang [91-93], Explorer [91-94], B2300 - Pickup [93-94], Navajo [91-94].
