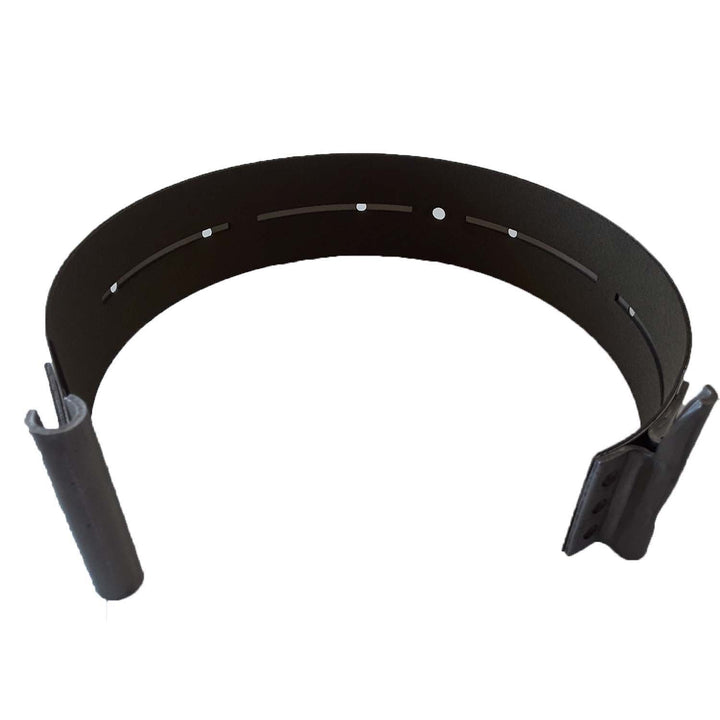

A worn or glazed overdrive band in a CD4E automatic transmission causes slipping the moment the unit tries to hold overdrive ratio, and replacing it with a correctly sized rigid relined band is the direct fix. This piece is a single rigid overdrive band, relined to high energy specification, 2.047 inches wide, built for CD4E units from 1994 and up in both 4-cylinder and V6 applications.
The CD4E is a transversely mounted automatic transmission used across a range of front-wheel-drive platforms from 1994 onward. The overdrive band in this unit wraps the overdrive drum and is applied by the servo to hold the drum stationary during fourth-gear operation. When the lining wears thin or hardens, the band loses its grip and overdrive engagement becomes inconsistent or disappears entirely. Installing a band with a fresh high energy lining returns proper contact area and friction coefficient between the band and drum surface.
The rigid construction of this band matters in the CD4E because the servo apply force is distributed across the full width of the lining. A 2.047-inch-wide band fills the drum channel as the stock does, so pressure is even across the contact surface rather than concentrated at an edge.
This listing covers one band, nothing else. There are no friction clutch packs, no steel plates, no Automatic Transmission Filter, and no other rebuild components here. If you are doing a complete overhaul, you will need to source those parts separately and cross-check your parts list against what you already have on hand.
REMCO has been working in automatic transmission parts since 1991, and each item ships with a contents sheet so you can confirm what is in the box against what was ordered. SKU. Shipping weight 0.999 lb.
- Addresses overdrive band wear in CD4E units from 1994 and up, covering both 4-cylinder and V6 configurations to restore proper automatic transmission function and prevent slipping in overdrive range.
- This listing is for a single band only. No friction discs, steel plates, Automatic Transmission Filter, or rebuild kit are included. Verify your complete parts list before ordering to avoid a return trip.
- A rigid band construction with high energy lining relaid to 2.047 inches wide gives this overdrive band the structural integrity needed to handle the clamping loads the CD4E servo applies during overdrive engagement.
- One piece: rigid overdrive band, relined, 2.047 inches wide, rated for 4-cylinder and V6 applications. Shipping weight 0.999 lb. Sourced under SKU.
- Before ordering, confirm your unit code is CD4E, verify the application year falls within the 1994-and-up range, and check whether your vehicle carries a 4-cylinder or V6 engine to match this band correctly.
What's in the box
- 1 x Band, CD4E Rigid Overdrive [2.047" Wide] [4 Cylinder v6] [High Energy] [Relined]
Compatible vehicles
- Fits Contour [95-00], Probe [94-00], Escape [01-02], X-Type [02], 626 [94-02], MX-6 [94-97], Tribute [00-02], Cougar [99-02], Mariner [04-08], Mystique [95-00].
| band rigid overdrive (2.047 wide) (4 cylinder & v6) (high energy) 1994-up cd4e (relined) Automatic transmission |
