TH700-R4 4L60E 4L65E [82-UP] Automatic Transmission Front Band Flex 2 4

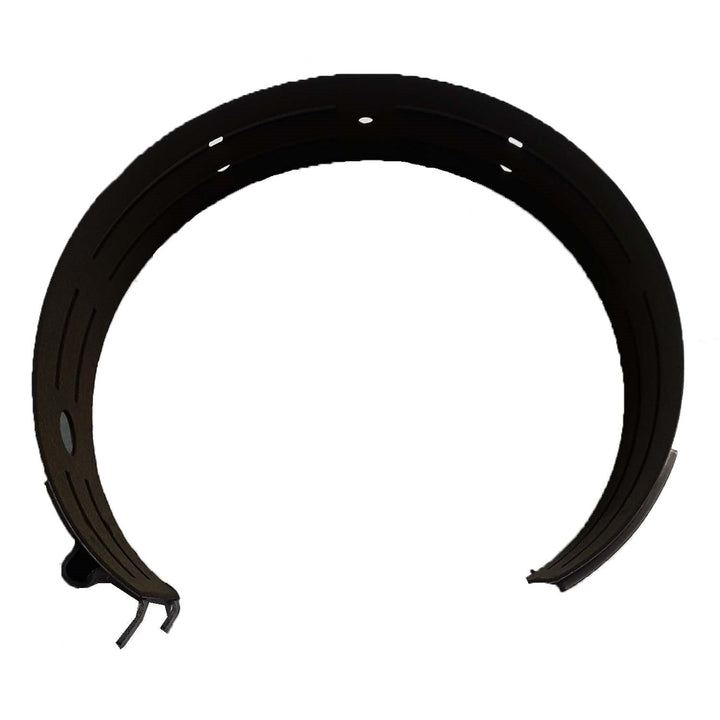

When the 2-4 band in a 4L60E, 4L65E, 4L70E or TH700-R4 automatic transmission wears through, second and fourth gear application becomes inconsistent, and slippage follows quickly if the band is not replaced. This is a single flex band with a red lining, measuring 2.620 inches wide, built to the aftermarket specification for the 2-4 servo position in those four unit families across the 1982-and-up production range.

The flex construction allows the band to conform evenly around the drum as the servo applies pressure, distributing load across the full contact surface of the red lining rather than concentrating stress at one edge. A band that does not flex correctly creates uneven wear and shortens the life of both the lining and the drum surface it contacts.

This article covers one band only. There are no gaskets, no seals, no clutch friction discs, no steels, no Automatic Transmission Filter and no additional hardware in this listing. Technicians building a complete overhaul will need to source those components separately. Verify your parts list against the repair job before ordering.

At REMCO, every piece is pulled and inspected individually before it leaves the shop. The company has worked in automatic transmissions since 1991, and each order is checked against its own parts record so what ships matches what was ordered. This band ships with a packing list confirming the single unit inside.

Before placing the order, confirm three things: the transmission unit code matches 4L60E, 4L65E, 4L70E or TH700-R4; the vehicle year falls within the 1982-and-up range; and that the 2-4 servo position in your specific unit takes a 2.620-inch-wide band. Unit codes can vary even within the same vehicle platform, so pulling the tag or pan stamp before ordering avoids a return.

• Holds 2nd and 4th gear application precisely: the red lining on this 2.620-wide flex band is designed to handle the clamping load of the 2-4 servo without glazing or slipping under normal operating conditions.
• This listing is for one band only. No overhaul gaskets, no clutch packs, no steels, no Automatic Transmission Filter, no other components. If your repair calls for those parts, verify separately before ordering.
• The 2.620-inch width and flex construction match the stock specification for the 2-4 band position in 4L60E, 4L65E, 4L70E and TH700-R4 automatic transmission units, keeping contact area and apply force consistent with stock geometry.
• Contents: 1 flex band, red lining, 2.620 inches wide. Aftermarket design. Article weight: 1.1 lb.
• Before ordering, confirm your unit code is 4L60E, 4L65E, 4L70E or TH700-R4 and that your application falls within the 1982-and-up range covered by this part.

What's in the box

• 1 x Band, TH700-R4-4L60E 4L65E Flex 2-4 [2.620" Wide][red Lining] Aftermarket Powerband

Compatible vehicles

• Fits Express G1500 1/2 Ton - Van [96], S10 - Pickup [93-96], Silverado 3500 1 Ton - Pickup [01-03], Sierra 2500 3/4 Ton 2WD - Pickup [99-03], Rainier [04-06], Camaro [93-96], Corvette [93-96], Blazer S10 2WD [93-03], C1500 1/2 Ton - Pickup [93-96], C2500 3/4 Ton - Pickup [93-96], Express G2500 3/4 Ton - Van [97-03], K1500 1/2 Ton 4WD - Pickup [93-96].
