TH700-R4 4L60E 4L65E [82-UP] Automatic Transmission Front Band Flex 2 4

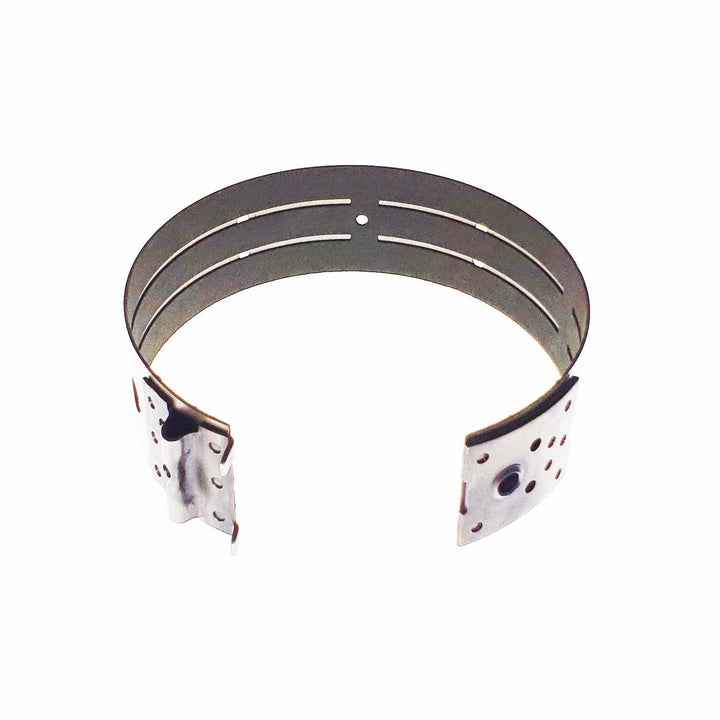

For TH700-R4 automatic transmissions. A failing 2-4 band in an automatic transmission shows up fast: soft or no second gear, no fourth gear, or a unit that goes straight into third with nothing in between. This flex band, cut to 2.280 inches wide, is the direct replacement for that position in the 4L60E, 4L65E, 4L70E, and TH700 units built from 1982 forward.

The 2-4 band is a single servo-applied friction band that wraps the second-and-fourth clutch drum. When it glazes, cracks, or loses material, the servo can no longer hold the drum still long enough to complete the apply, and shift feel falls apart at those two gear changes. Swapping the band is often the first mechanical step before pulling the unit apart further, because if the band is the cause, nothing else needs to come out.

This listing covers one piece: the flex band itself, nothing more. There are no friction packs, no steels, no Automatic Transmission Filter, and no gaskets included here. If your rebuild calls for those parts as well, they need to be sourced separately. Check your job sheet before placing the order.

At REMCO, individual parts like this one are pulled, checked against their part record, and packed here in the shop, the same way every order has been handled since 1991. A copy of the part record goes in the box.

Applies to: 4L60E, 4L65E, 4L70E, TH700. Model year range: 1982 and up. Confirm your unit code and production year before ordering.

• TH700-R4 automatic transmission: replacing a worn 2-4 band stops slipping on second and fourth gear apply, keeping the unit from failing further under load.
• This listing is for the band only. It does not include any friction discs, steel plates, Automatic Transmission Filter, or any other rebuild components. Verify your full parts list before ordering.
• A single flex band cut to 2.280 inches wide matches the drum width these units require, so there is no trimming or shimming to make it seat correctly.
• One flex band, 2-4 position, 2.280 in. wide, weighs approximately 1 lb. Packed and checked against its part record before it ships.
• Before ordering, confirm your transmission code is 4L60E, 4L65E, 4L70E, or TH700, and that your unit falls within the 1982-and-up production range.

What's in the box

• 1 x Band, TH700-R4-4L60E 4l65eband Flex 2-4 Or Red Pro-series

Compatible vehicles

• Fits Express G1500 1/2 Ton - Van [96], S10 - Pickup [93-96], Silverado 3500 1 Ton - Pickup [01-03], Sierra 2500 3/4 Ton 2WD - Pickup [99-03], Rainier [04-06], Camaro [93-96], Corvette [93-96], Blazer S10 2WD [93-03], C1500 1/2 Ton - Pickup [93-96], C2500 3/4 Ton - Pickup [93-96], Express G2500 3/4 Ton - Van [97-03], K1500 1/2 Ton 4WD - Pickup [93-96].
