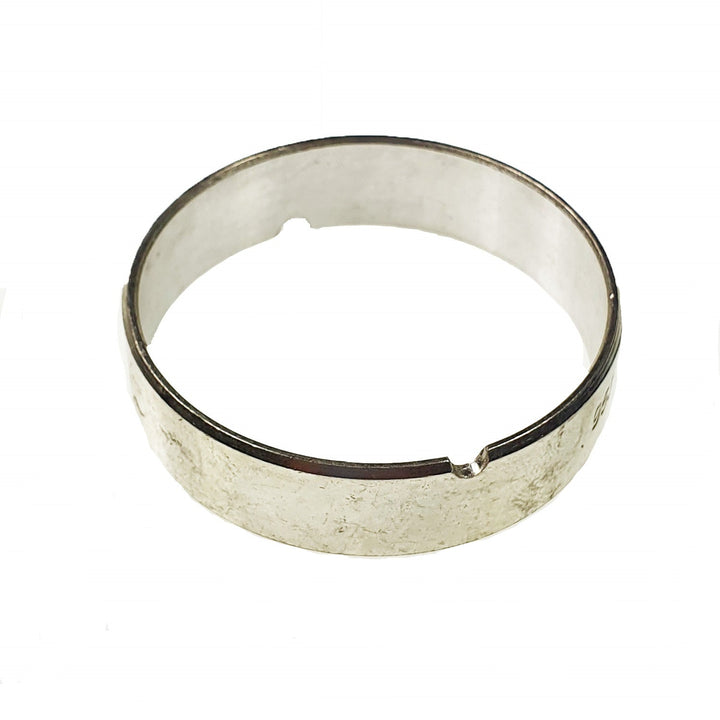

JF506E [02-UP] Automatic Transmission Bushing Pump (1.760 od)(1.645 ID)

When the pump bushing in a JF506E automatic transmission wears past its service limit, shaft movement increases and the pump loses the ability to maintain consistent pressure throughout the hydraulic circuit. This single bushing, measuring 1.760 in. outer diameter and 1.645 in. inner diameter, is sized to fit the pump bore of JF506E units produced from 2002 and up.

Unlike kits assembled around a broad range of seals and friction components, this is one discrete part selected for a specific location inside the pump assembly. The outer diameter seats against the pump body bore, and the inner diameter supports the input shaft as it rotates. When either surface is worn, the shaft runs off-center, accelerating seal and bushing wear downstream. Replacing the bushing at the right point in a rebuild stops that cycle before it reaches more expensive components.

The article ships at 1 lb. REMCO has been working with automatic transmission parts since 1991, and each piece leaving the facility is checked against its part listing before it is packed. The box includes that listing so the technician receiving it can verify the part at the bench without guessing.

Before ordering, verify the transmission code stamped on the unit reads JF506E and that the vehicle application falls within the 02-UP production range. If the stock bushing showed uneven wear or the bore itself has been damaged, measure the bore diameter before installing a standard-size replacement. This listing does not include any additional components.

• Restores proper pump shaft alignment in JF506E units, helping prevent pressure loss and wear caused by an oversized or worn bushing bore.
• This listing covers one bushing only. It does not include seals, o-rings, gaskets, Automatic Transmission Filters, or any other components. Review your full parts list before ordering.
• Measured at 1.760 in. OD and 1.645 in. ID, this bushing matches the stock pump bore specification for JF506E transmissions built from 2002 and up.
• One pump bushing, 1.760 in. outer diameter, 1.645 in. inner diameter. Article weight: 1 lb. Packed and verified individually against its part listing before it ships.
• Before ordering, confirm the transmission code on your unit is JF506E and that the build year falls within the 02-UP range. Measure your bore if the stock bushing showed abnormal wear.

What's in the box

• 1 x Bushing, Pump [1.760" OD][1.645" ID] JF506E

Compatible vehicles

• Fits Golf [02-05], GTI [02-05], Jetta [02-05], Sharan [02-10].
