A750E [03-UP] Automatic Transmission Bushing (2wd) Extension Housing

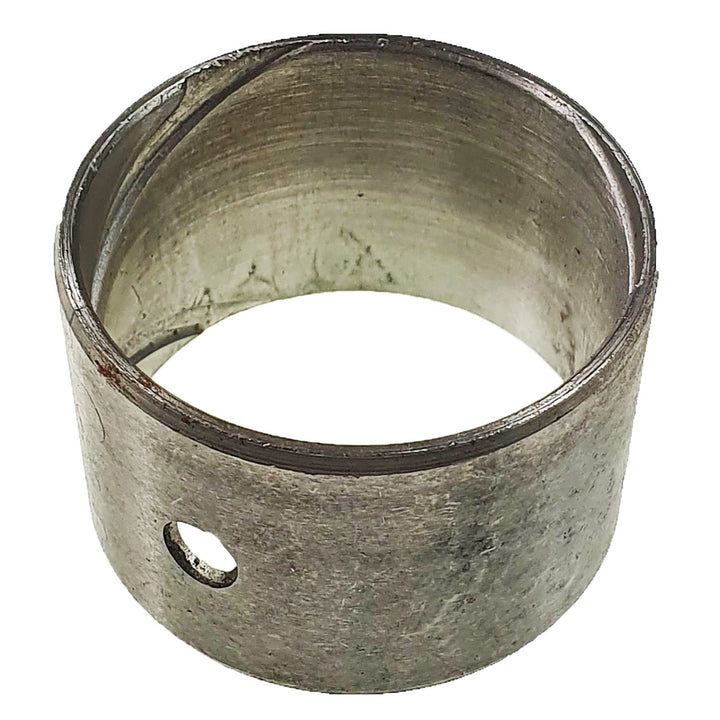

For A750E automatic transmissions. When the extension housing bushing on an A750, A751, A760, A761, or A960E automatic transmission wears out, the output shaft loses its radial support, and that play works its way into vibration, seal failure, and accelerated damage to surrounding components. This is a single replacement bushing cut to the exact dimensions required for the 2WD extension housing bore on those units: 1.130 inches long, 1.745 inches outer diameter, and 1.575 inches inner diameter.

Because fit at this location depends entirely on holding tight dimensional tolerances, the numbers above are the specification you should match against your worn piece before ordering. A bushing that is even slightly off in OD will not press into the housing bore correctly, and one that is short on ID will bind the shaft. Measure what you are replacing and compare.

This listing covers one bushing. It does not include output shaft seals, other extension housing bushings, gaskets, or any additional hardware. If your repair requires those components, they need to be sourced separately.

Application covers A750, A751, A760E, A760F, A761E, A761F, and A960E units from 2003 forward, 2WD configuration only. REMCO has been working in automatic transmission parts since 1991, and each piece is pulled and checked individually before it ships. The part record ships inside the box so you can confirm on arrival that what you received matches what was ordered.

• A750E automatic transmission: restores proper rear output support in A750, A751, A760, A761, and A960E units, preventing shaft slop and excessive wear at the extension housing.
• This listing covers the extension housing bushing only. No other bushings, seals, gaskets, or hardware are included. Verify you need this specific piece before ordering.
• Precise dimensions matter here: this bushing measures 1.130 inches long, 1.745 inches outer diameter, and 1.575 inches inner diameter, sized for the 2WD extension housing bore on these units.
• Single bushing, 1.130" long x 1.745" OD x 1.575" ID, weight 1 lb. Assembled individually at REMCO and checked against its part record before shipping.
• Before ordering, confirm your unit code is A750, A751, A760, A761E, A761F, or A960E, that it is a 2WD configuration, and that the model year falls within the 2003-and-up range.

What's in the box

• 1 x Bushing, [2WD] Extension Housing [1.130 Long] [1.745" OD] [1.575" ID] A750E

Compatible vehicles

• Fits GX 470 [03-09], LX 470 [03-07], Grand Vitara [06-12], Vitara [06-08], XL-7 [04-07], 4Runner [03-15], FJ Cruiser [07-14], Land Cruiser [03-07], Sequoia [04-08], Tacoma [05-15], Tundra [05-14].
