6L80E 6L90E [06-UP] Automatic Transmission Bushing 3-5 Reverse 2-6 Clutch

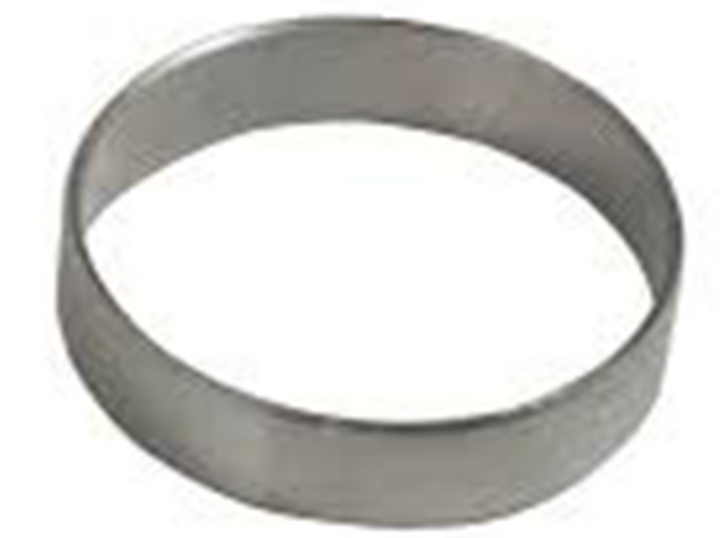

When the front bushing on the 3-5 reverse and 2-6 clutch hub wears beyond tolerance, the hub loses its support and the resulting slop accelerates damage to surrounding components, so getting the correct replacement in place early keeps the repair straightforward. This is a single babbit bushing with a smooth bore and a 1.475 inch internal diameter, built to fit the front position of that hub in 6L80E and 6L90E automatic transmission units from 2006 forward.

Babbit is a soft bearing alloy that conforms slightly under load and transfers heat away from the journal, which is why it has been the material of choice for this type of bushing in automatic transmission applications for decades. The smooth bore finish means no additional machining is required before installation, and the 1.475 inch ID matches the stock dimensional specification for this location.

This listing is for the front bushing only. There are no clutch discs, steels, snap rings, seals, or any other components in the package. If your repair also requires those parts, they need to be sourced separately. Checking the full parts list for the job before ordering avoids a second trip.

REMCO has been working in automatic transmission parts since 1991. Each unit is pulled, checked, and packed individually here, and a parts record accompanies every order so the contents can be verified on arrival. The transmission code to confirm is 6L80E or 6L90E, and the application runs from model year 2006 onward.

• Skip the hub wear cycle: replacing this front bushing before it scores the hub surface saves the cost of a full hub replacement later.
• This listing covers the front bushing only. No clutch packs, steels, seals, or gaskets are included. Confirm you need just this single bushing before ordering.
• Babbit material with a smooth bore and 1.475 in internal diameter, dimensions matched to the stock specification for the 3-5 reverse and 2-6 clutch hub position.
• One front clutch hub bushing, babbit, smooth finish, 1.475 in ID. Unit weight: 1 lb. Packed and verified against its part record before shipment.
• Before ordering, confirm the transmission code on the unit is 6L80E or 6L90E and that the model year falls within the 06-UP application range.

What's in the box

• 1 x Bushing, 3-5 Reverse 2-6 Clutch Hub [Front] [1.475" ID] [Smooth] [Babbit] 6l

Compatible vehicles

• Fits CTS-V [06-15], Escalade/ESV/EXT [07-15], SRX [06-09], STS [06-11], XLR [06-11], Camaro [10-13], Corvette [06-11], SS [14-17], Avalanche [08-13], Express 2500 [10-11], Express 3500 [10-11], Silverado 1500 1/2 Ton [07-09].
