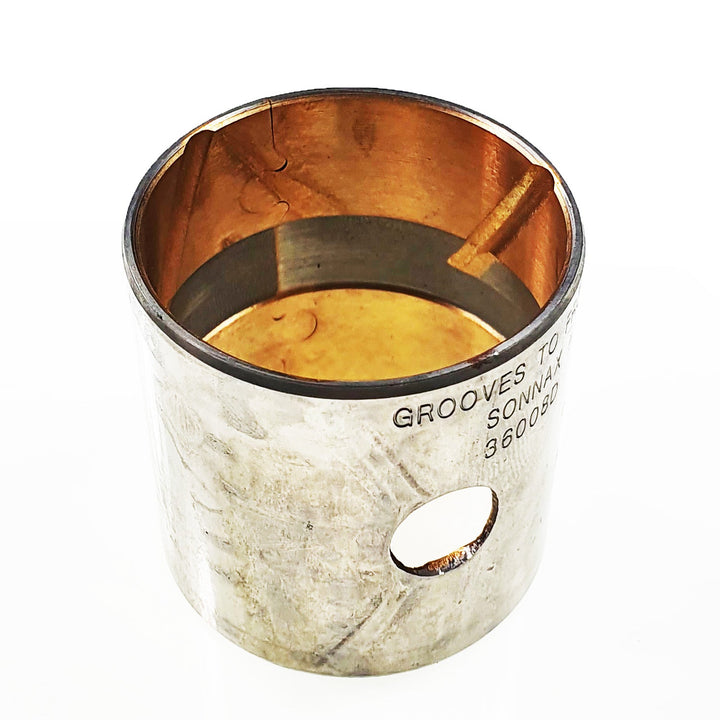

E4OD 4R100 [95-UP] Automatic Transmission Bushing Bsh Case Rear 1-pc OE

When the rear case bushing on a 4R100 or E4OD automatic transmission wears beyond spec, shaft movement increases at that bore, and that movement works against every other component nearby. This single rear case bushing is cut to OE dimensions in a 1-piece design with a 3-groove front-and-back profile, so it restores the stock fit at that location without requiring modification.

The 3-groove configuration is not a cosmetic detail. Those grooves carry lubrication across the contact surface during operation, and the front-and-back orientation means the grooves are positioned to work in both directions of oil movement through that bore. A bushing without that groove pattern installed in this position would leave sections of the contact surface running dry.

This part applies to 4R100 and E4OD units from 1995 forward. The catalog also lists this bushing under the E4OD designation, so if your documentation shows either code, this is the same application. The item ships at 1 lb.

This listing covers one bushing. There are no seals, gaskets, o-rings, Automatic Transmission Filters, clutch discs, steels, or other bushings in this order. If your job requires additional parts for the same unit, those need to be sourced separately. Check your teardown notes and parts list against what you already have before placing the order.

At REMCO, individual pieces like this one are pulled and checked against the part listing before they leave. The company has been working in automatic transmission parts since 1991, and single components get the same attention as full rebuild kits. Confirm your transmission code, model year, and the specific bore location before ordering to make sure this is the right bushing for your job.

• A correctly sized rear case bushing keeps shaft alignment tight and reduces wear on surrounding components, helping avoid fluid leaks and premature failure at that bore.
• This listing is for one bushing only. It does not include any seals, gaskets, o-rings, Automatic Transmission Filters, clutch packs, steels, or additional bushings. Verify your full parts list before ordering.
• The 1-piece OE-size construction with 3-groove front-and-back profile matches the stock fit for 4R100 and E4OD units, so it seats and retains lubrication the same way the stock part did.
• Contents: 1 rear case bushing, 1-piece, OE size, 3-groove front-and-back configuration. Item weight: 1 lb.
• Before ordering, confirm your transmission code is 4R100 or E4OD, verify the model year is 1995 or later, and check that your unit takes the 1-piece OE-size rear case bushing at this position.

What's in the box

• 1 x Bushing, E4OD 4R100 Bsh Case Rear 1-pc OE Size 3-groove Front 1-back

Compatible vehicles

• Fits E150 1/2 Ton Econoline - Van [89-95], E150 1/2 Ton Econoline Club Wagon [89-95], E250 3/4 Ton Econoline - Van [89-95], E350 1 Ton Econoline - Van [89-95], E350 1 Ton Econoline Club Wagon [89-95], F450 Super Duty 1 1/2 Ton Truck [90-95], Bronco [94-98], E & E350 Super Duty 1 Ton Econoline - Van [96-97], E250 3/4 Ton Econoline Club Wagon [89-91], Expedition [97-98], F Super Duty - Pickup [96-97], F150 1/2 Ton - Pickup [89-95].
