5R55N [99-UP] Automatic Transmission Bushing Servo Bore Sleeves 1-int 1-od

Worn bushings let shafts run off center, and the side load that follows wears seals and drums much faster than normal.

5R55N servo bore sleeves 1-int 1-od sleeve (must use with s-56361j-tl) w s Bushing. Each bushing is sized for its own bore, so the set covers the positions a rebuild reaches.

Bushings wear in sequence, so the set matters more than any one piece. Shipping weight is 1 lb.

The parts list below is exactly what ships. Compare it against your teardown before ordering.

REMCO has supplied automatic transmission parts since 1991, and every order ships with its part listing so the receiving technician can check what arrived against what was ordered.

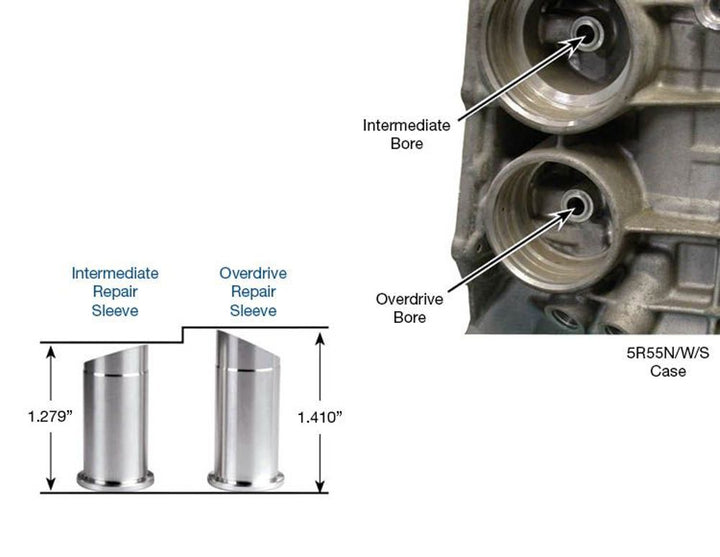

• Restores servo bore dimensions in 5R55W, 5R55S, and 5R55N units, preventing pressure loss and erratic shift behavior caused by a worn or damaged bore.
• This listing does not include friction discs, steel plates, Automatic Transmission Filter, bands, or any other rebuild components. Review your parts list before ordering to confirm this is the exact piece you need.
• Two-piece sleeve design addresses both the inner and outer diameters of the servo bore in a single purchase, targeting the specific wear point that affects servo function in these units.

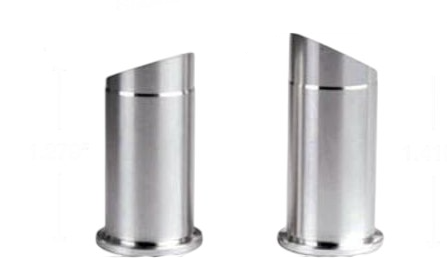

• Set includes one inner sleeve and one outer diameter sleeve for the servo bore. Total shipping weight is 1 lb. Tool S-56361J-TL is required for installation and is sold separately.
• Before ordering, confirm the transmission code on the unit matches 5R55W, 5R55S, or 5R55N, and verify the model year falls within the supported application range starting from 1990.

What's in the box

• 1 x Bushing, 5R55N Servo Bore Sleeves 1-int 1-OD Sleeve [Must Use With s-56361j-tl] W S

Compatible vehicles

• Fits Mustang [05-10], Thunderbird [02-05], Explorer [02-10], Explorer Sport Trac [05-10], S-Type [00-02], XK8 [01-02], XKR [00-02], Aviator [03-05], LS [00-06], Mountaineer [99-01].
