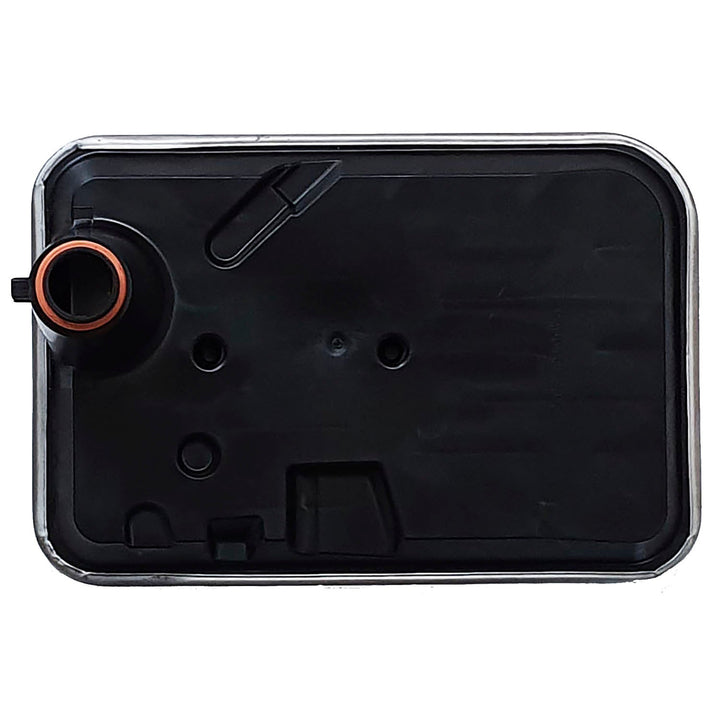

[00-UP] Automatic Transmission Filter Allison Shallow Pan 1st Design E06

Getting fluid pickup right in these units depends entirely on matching the Automatic Transmission Filter to the exact pan depth and design generation, and this Automatic Transmission Filter is built for the shallow pan first design found in Allison 1000, 2000, and 2400 series automatic transmission applications from 1999 through 2009. What sets this piece apart from others in the same family is that distinction between first and second design: the housing geometry differs enough that installing the wrong generation leaves a gap at the pickup point, and no amount of other work corrects that once the pan is bolted back up.

This is a single Automatic Transmission Filter, part number, weighing 1 lb. It covers one function: fluid pickup from a shallow pan configured to the first design specification. It does not include a pan gasket, sealing rings, or any additional hardware. If your job calls for those pieces, they need to be sourced separately before the transmission goes back together.

Before placing the order, check three things. First, confirm the unit code on the case matches the 1000, 2000, or 2400 series. Second, verify the build year falls between 1999 and 2009. Third, identify which pan is installed, because the shallow first design and the deeper second design look similar from the outside but are not the same fit inside. A technician who has pulled the pan before will recognize the difference immediately; one who has not should measure pan depth or cross the part number against a known-good source before ordering.

At REMCO, operating in automatic transmissions since 1991, each piece is checked against its part record before it ships, and a copy of that record goes in the box. That step exists so the technician on the bench can confirm what arrived matches what was ordered, without guessing.

• Restoring proper fluid flow starts with the right Automatic Transmission Filter fit: this shallow pan, first design Automatic Transmission Filter matches the geometry of the pan cavity so suction stays consistent and fluid circulation is not starved at startup.
• This listing covers the Automatic Transmission Filter only. It does not include a pan gasket, o-rings, seals, or any other hardware. Confirm what else your job needs before ordering so nothing delays the rebuild.
• The shallow pan first design format is specific to early production units in this series. Using an Automatic Transmission Filter cut for a deeper pan or second design housing leaves gaps that affect suction, so matching the exact design is the technical point that matters here.
• One Automatic Transmission Filter, shallow pan, first design. Part number. Weight: 1 lb. The piece ships after a manual check against the part record packed with it.
• Before ordering, verify the unit code on the transmission, the build year within the 1999 to 2009 range, and which pan design is installed. Shallow pan first design and deep pan second design are not interchangeable.

What's in the box

• 1 x Automatic Transmission Filter, ALLISON Shallow Pan 1st Design E06 10002000

Compatible vehicles

• Fits C7500 [00-05], T6500 Tilt Cab [02-05], W4500 1 1/2 Ton Tilt Cab [02-05], C6500 [00-05], Silverado 3500 1 Ton - Pickup [01-05], T7500 Tilt Cab [02-05], T8500 Tilt Cab [02-05], W5500 2 Ton Tilt Cab [02-05], Sierra 2500HD 3/4 Ton - Pickup [01-06], C4500 1 1/2 Ton Truck [03-15], C5500 2 Ton Truck [01-15], C8500 [03-15].
