45RFE [99-UP] Automatic Transmission Friction Module

When a 45RFE rebuild calls for friction replacement across multiple clutch packs, this kit puts all twenty-one plates together in one shipment so the rebuilder is not chasing individual pieces from different suppliers. What sets it apart is the specific spread: six clutch positions are covered, with high energy friction material used in the low reverse, OD, second, and reverse input packs, and standard friction plates filling the underdrive and the 4799114 positions, matching the stock layout of the automatic transmission.

REMCO has worked in automatic transmission parts since 1991 and assembles every kit by hand at its facility. Each box is checked against a printed parts list before it ships, and that list travels inside the box so the rebuilder can verify count on the bench.

The breakdown by position is as follows: six high energy frictions for the low reverse clutch, four frictions identified as part number 4799114, four frictions for the underdrive clutch, three high energy frictions for the OD clutch, two high energy frictions for the second clutch, and two high energy frictions for the reverse input clutch. Total piece count is twenty-one. Packaged weight is two pounds.

This kit does not include steel plates, sealing rings, gaskets, Automatic Transmission Filter, band, pistons, or any other overhaul components. If the rebuild also requires those parts, they need to be sourced separately. Confirm the transmission code reads 45RFE and the production year is 1999 or later before placing the order.

• Six clutch packs addressed in one box: this kit targets the friction plates for the low reverse, underdrive, OD, 2nd, reverse input, and the 4799114 clutch positions in 45RFE units from 1999 up.
• This is a Friction Kit only. It does not include steel plates, sealing rings, gaskets, Automatic Transmission Filter, band, or pistons. Review your parts list before ordering to avoid a return.
• Twenty-one friction plates spread across six distinct clutch positions give the rebuilder exactly the friction material needed without paying for components already on hand or sourced separately.
• Contents: 6 low reverse clutch high energy frictions, 4 frictions part 4799114, 4 underdrive clutch frictions, 3 OD clutch high energy frictions, 2 second clutch high energy frictions, 2 reverse input clutch high energy frictions. Total: 21 pieces, 2 lb.
• Before ordering, confirm the transmission code on the unit matches 45RFE and that the build date falls in the 1999 and up production range. Cross the individual part numbers against your teardown notes.

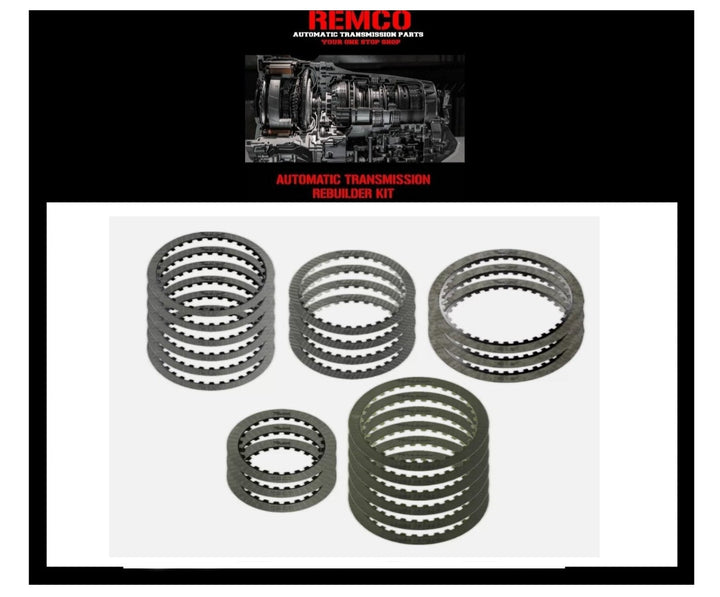

What's in the box

• 6 x Friction Clutch Plate, 45RFE Low Reverse [High Energy]
• 4 x Friction Clutch Plate, 4799114
• 4 x Friction Clutch Plate, 45RFE Underdrive
• 3 x Friction Clutch Plate, 45RFE OD [High Energy]
• 2 x Friction Clutch Plate, 45RFE 68RFE 2nd [High Energy]
• 2 x Friction Clutch Plate, 45RFE 68RFE Reverse Input [High Energy]

Compatible vehicles

• Fits Dakota [00-03], Durango [00-03], Grand Cherokee [99-03], Liberty [02-03], Aspen [07-09], Ram 1500 1/2 Ton - Pickup [02-12], Ram 1500 Mega Cab 1/2 Ton - Pickup [06-08], Ram 2500 Mega Cab 3/4 Ton - Pickup [06-12], Ram 2500HD 3/4 Ton - Pickup [03-09], Ram 3500HD 1 Ton - Pickup [03-12], Commander [06-10], Wrangler [07-10].
