When the od direct, od brake, and forward clutch frictions in an A518 or 48RE automatic transmission are worn, slipping, or glazed, this kit gives you all 37 replacement friction discs in a single box, nothing more and nothing less. What makes this kit different from a broader rebuild kit is its focus: every piece inside is a friction disc, so you are not paying for seals, steels, or an Automatic Transmission Filter you may already have on the bench.
The box contains five friction sets matched to the 2003-and-up production run of the 48RE: 12 od direct clutch frictions at .048 inch, 54-tooth, 1-sided internal tab (hi-energy); 11 od direct clutch frictions at .048 inch, 12-tooth, 1-sided external tab (hi-energy); 5 pasta directa discs at .085 inch, 62-tooth, dated from 1998 forward; 5 od brake clutch frictions, waved, hi-energy; and 4 forward clutch frictions at .061 inch, 93-tooth, hi-energy. Total shipped weight is 2 lb.
REMCO has been working in automatic transmissions since 1991. Every kit is assembled in-house, counted against a printed parts list that ships inside the box, so you can verify piece count before the unit goes on the bench. No frictions are pre-packaged from an outside source and relabeled.
This kit does not include steel reaction plates, an Automatic Transmission Filter, bands, or any sealing components. If your job requires those parts, they need to be sourced separately. Confirm the unit code, the production year (2003 or later), and the exact clutch packs your overhaul requires before placing the order.
- Replaces worn friction material in the od direct, od brake, and forward clutch circuits, reducing slip and heat buildup in the unit.
- This kit does NOT include steel plates, Automatic Transmission Filter, bands, or seals. Review your parts list before ordering to avoid a return trip to the supplier.
- All 37 frictions are hi-energy spec where the application calls for it, and the kit is assembled piece by piece at REMCO, checked against a parts list before it ships.
- Contents: 12 od direct friction .048 54t 1-sided int, 11 od direct friction .048 12t 1-sided ext, 5 pasta directa .085 62d, 5 od brake waved, 4 forward clutch .061 93t. Weight: 2 lb.
- Before ordering, confirm your unit code (A518 or 48RE), model year (2003 and up), and which friction sets your rebuild already covers.

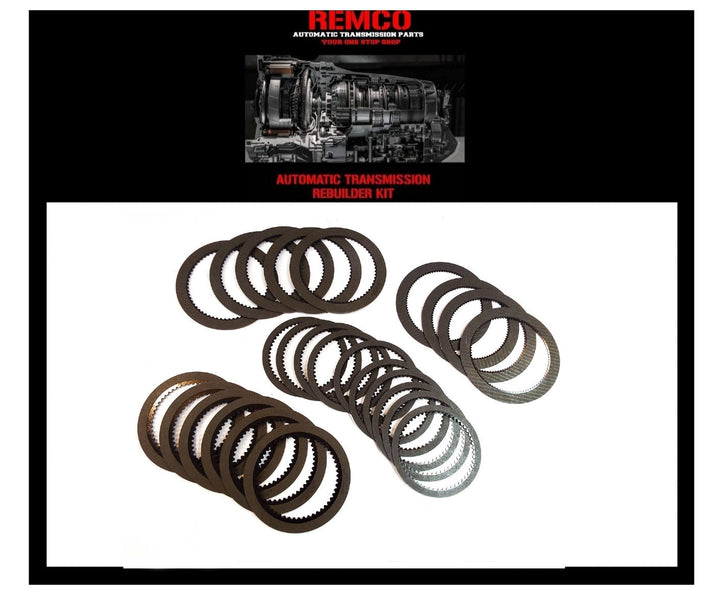

What's in the box
- 12 x Friction Clutch Plate, 48RE OD Direct [.048" Thick] 54 Teeth [High Energy] 1-sided Internal Spline
- 11 x Friction Clutch Plate, 48RE OD Direct [.048" Thick] 12 Teeth [High Energy] [1-sided External Spline]
- 5 x Friction Clutch Plate, A518 A618 Disco Directa .085" Thick 62d
- 5 x Friction Clutch Plate, 087 A518 A618 48RE OD Brake [Waved] High Energy
- 4 x Friction Clutch Plate, 48RE Forward [.061" Thick] 93 Teeth [High Energy]
Compatible vehicles
- Fits Ram 1500 1/2 Ton - Pickup [04-06], Ram 1500 1/2 Ton - Van [03-07], Ram 2500 Mega Cab 3/4 Ton - Pickup [06-07], Ram 2500HD 3/4 Ton - Pickup [04-07], Ram 3500 Mega Cab 1 Ton - Pickup [06-09], Ram 3500HD 1 Ton - Pickup [03-09], Ram 4500HD Pickup [05-07].
