E4OD 4R100 [98-UP] Automatic Transmission Friction Module [ 98-]

For E4OD automatic transmissions. When a 4R100 rebuild calls for fresh friction discs across every clutch pack, this kit puts all 26 pieces in one box without padding the order with parts you may already have. What sets it apart is the specificity: seven separate clutch sets, each selected for its own position, thickness, tooth count, and surface pattern, rather than a one-size assortment.

The reverse clutch pack receives 6 frictions at .078 inch with 24 teeth. The direct clutch gets 4 waffle-pattern grey frictions at .077 inch, a surface geometry designed for that pack's heat cycle. Forward clutch uses 4 smooth hardened-core frictions at .075 inch. Coast clutch accounts for 3 frictions at .078 inch. The overdrive section is covered by two separate sets: 3 frictions at .078 inch with 64 teeth and 3 more at .078 inch with 32 teeth. Intermediate clutch rounds out the kit with 3 frictions at .078 inch, 50-tooth count.

This is a Friction Kit, meaning friction discs only. Steel plates, seals, gaskets, Automatic Transmission Filter, pump bushing, and band are not included. If your job requires those components, confirm what you have on the bench before placing the order.

REMCO has been working in automatic transmission parts since 1991. Each kit is assembled here, piece by piece against a printed parts list, and that same list ships inside the box so the technician can verify count at the bench. The kit weighs 2 lb packed.

This kit applies to the 4R100 automatic transmission, [98-ON]. Verify the code on the unit and confirm the model year before ordering.

• E4OD automatic transmission: cover every clutch pack in a 4R100 overhaul with one order: reverse, direct, forward, coast, both overdrive variants, and intermediate are all addressed.
• This kit contains friction discs ONLY. It does not include steel plates, seals, gaskets, Automatic Transmission Filter, or band. Check your parts list before ordering to avoid a return trip.
• Seven distinct clutch sets, 26 friction discs total: teeth counts and thicknesses match published specs for each position, so fitment is confirmed before the kit ships.
• Contents: 6 reverse clutch (.078/24T), 4 direct clutch (.077 waffle grey), 4 forward clutch (.075 smooth), 3 coast (.078), 3 OD (64T), 3 OD (32T), 3 intermediate (.078/50T). 2 lb.
• Before ordering, confirm the transmission code stamped on the unit matches 4R100 and that the build year falls within the [98-ON] range covered by this friction set.

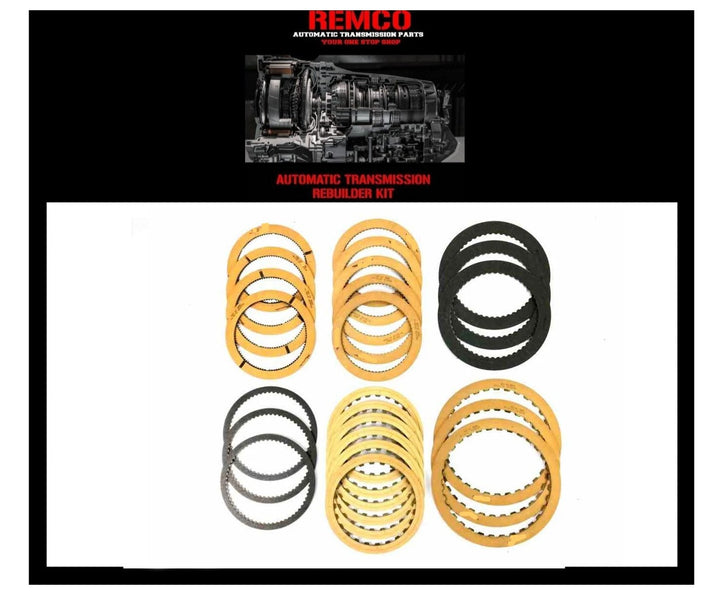

What's in the box

• 6 x Friction Clutch Plate, E4OD 4R100 Reverse [.078" Thick] 24 Teeth
• 4 x Friction Clutch Plate, C6 E4OD 4R100 Direct .077" Thick[waffle] [Grey]
• 4 x Friction Clutch Plate, C6 E4OD 4R100 Forward .075" Thick [Hardened Core Smooth]
• 3 x Friction Clutch Plate, E4OD 4R100 Intermediate [.078" Thick] [50 Teeth] [High Energy-retros To ] 5
• 3 x Friction Clutch Plate, E4OD 4R100 Coast [.078" Thick]
• 3 x Friction Clutch Plate, 4R100 Overdrive .078" Thick [32 Teeth] 5
• 3 x Friction Clutch Plate, E4OD 4R100 Overdrive .078" Thick [64 Teeth] 4 97

Compatible vehicles

• Fits E150 1/2 Ton Econoline - Van [89-95], E150 1/2 Ton Econoline Club Wagon [89-95], E250 3/4 Ton Econoline - Van [89-95], E350 1 Ton Econoline - Van [89-95], E350 1 Ton Econoline Club Wagon [89-95], F450 Super Duty 1 1/2 Ton Truck [90-95], Bronco [94-98], E & E350 Super Duty 1 Ton Econoline - Van [96-97], E250 3/4 Ton Econoline Club Wagon [89-91], Expedition [97-98], F Super Duty - Pickup [96-97], F150 1/2 Ton - Pickup [89-95].
