5R110W [03-04] Automatic Transmission Friction Module

Glazed or worn friction material is what turns a healthy clutch pack into a slipping one, and it shows up first under load.

5R110W Friction Module. This pack restores the torque capacity the unit had when it left the line.

Bedding in happens in the first heat cycles, so the initial fill and the first drive matter. Shipping weight is 2 lb.

The parts list below is exactly what ships. Compare it against your teardown before ordering.

REMCO has supplied automatic transmission parts since 1991, and every order ships with its part listing so the receiving technician can check what arrived against what was ordered.

• Transmission Rebuild Kit for 5R110W - replacement component designed for proper fit and function
• Designed to support proper friction engagement, piston stroke and case sealing during a full transmission rebuild
• Package Includes: friction plates. 7 items supplied together
• Steel and friction plate construction with formed rubber seals - designed for dependable service in the intended application. Ships at 2.00 lb, 10x3x10 in
• Intended for rebuilders performing a complete overhaul. Soak the friction material in the specified fluid before assembly and set to the service manual range

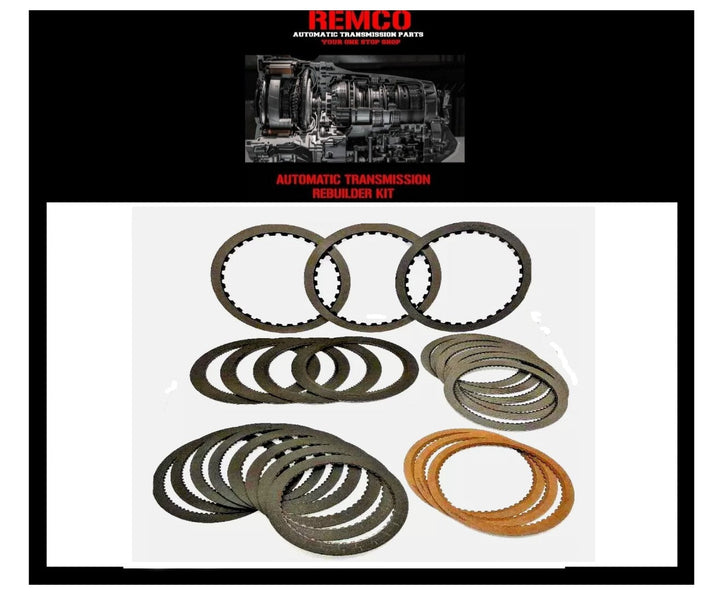

What's in the box

• 6 x Friction Clutch Plate, 5R110W Low Reverse [.078" Thick] 72 Teeth [Waffle]
• 4 x Friction Clutch Plate, 5R110W Direct [.078" Thick] 48 Teeth [Smooth W 32 Grooves]
• 4 x Friction Clutch Plate, 5R110W Forward [.078" Thick] 90 Teeth [Smooth W 32 Grooves] 04
• 3 x Friction Clutch Plate, 5R110W Overdrive Brake [.078" Thick] 32 Teeth [Smooth]
• 3 x Friction Clutch Plate, 5R110W Coast [.078" Thick] 59 Teeth [Starburst]
• 3 x Friction Clutch Plate, 5R110W Intermediate [.078" Thick] 24 Teeth [Star Burst] 04

Compatible vehicles

• Fits F-250 Super Duty [03-04], F-350 Super Duty [03-04], F-450 Super Duty [03-04], F-550 Super Duty [03-04], Excursion [03-04], E-350 Super Duty [04], E-450 Super Duty [04], E-350 Club Wagon [04].
