5R110W [05-UP] Automatic Transmission Friction Module

When a 5R110W needs new friction material across all six clutch packs, this kit puts every plate in one box so the rebuild does not stall waiting on individual pieces. What sets it apart is the specificity of the content: 23 friction plates cut to six different configurations, each matched to its clutch pack by tooth count, groove pattern, and thickness.

The kit covers the low reverse clutch with 6 waffle-pattern frictions at 72 teeth, the direct clutch with 4 smooth frictions carrying 32 grooves at 48 teeth, and the forward clutch with 4 frictions at 76 teeth. The overdrive brake clutch gets 3 smooth frictions at 32 teeth, the intermediate clutch gets 3 frictions at 96 teeth, and the coast clutch gets 3 starburst-pattern frictions at 59 teeth. Every plate in this automatic transmission kit measures .078 in thickness. Total count is 23 pieces across 6 line items.

REMCO has worked in automatic transmission parts since 1991 and assembles each kit by hand, piece by piece, checking the contents against the part list before the box is sealed. That list ships inside the box so the technician can verify count at the bench.

This kit does not include steel plates, seals, gaskets, Automatic Transmission Filter, or band. If the rebuild requires those components, they must be sourced separately. Before placing the order, confirm the unit code is 5R110W and that the vehicle model year is 2005 or later, since the forward and intermediate clutch frictions are spec for the 05-UP version of this transmission. The low reverse, direct, overdrive brake, and coast frictions apply from 03-UP, but the kit as a whole is listed and sold for 05-UP applications.

• Restores clutch engagement in the 5R110W automatic transmission by replacing all six clutch pack frictions in a single order, avoiding multiple sourcing delays.
• This kit contains friction plates only. No steel plates, no seals, no Automatic Transmission Filter, no band, and no gaskets are included. Verify what your rebuild needs before ordering.
• All 23 frictions are cut to their specific tooth count and groove pattern: 72t waffle, 48t smooth with 32 grooves, 76t, 32t smooth, 96t, and 59t starburst, each at .078 thickness.
• Contents: 6 low reverse clutch (72t waffle), 4 direct clutch (48t smooth 32gr), 4 forward clutch (76t), 3 OD brake clutch (32t smooth), 3 interm clutch (96t), 3 coast clutch (59t starburst). Total: 23 pcs. Weight: 2 lb.
• Before ordering, confirm your unit is a 5R110W and that the application year is 05 or later. The forward and intermediate clutch frictions in this kit are spec for the 05-UP build.

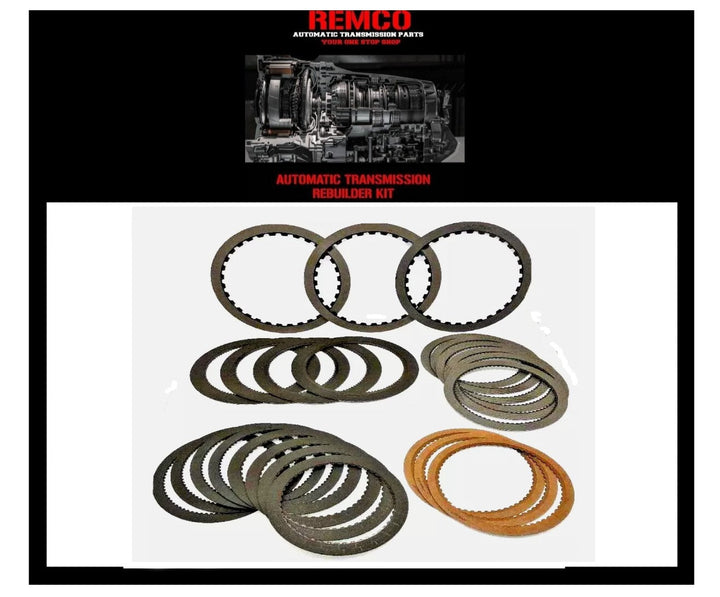

What's in the box

• 6 x Friction Clutch Plate, 5R110W Low Reverse [.078" Thick] 72 Teeth [Waffle]
• 4 x Friction Clutch Plate, 5R110W Forward [.078" Thick] 76 Teeth
• 4 x Friction Clutch Plate, 5R110W Direct [.078" Thick] 48 Teeth [Smooth W 32 Grooves]
• 3 x Friction Clutch Plate, 5R110W Interm [.078" Thick] 96 Teeth
• 3 x Friction Clutch Plate, 5R110W Overdrive Brake [.078" Thick] 32 Teeth [Smooth]
• 3 x Friction Clutch Plate, 5R110W Coast [.078" Thick] 59 Teeth [Starburst]

Compatible vehicles

• Fits F-250 Super Duty [05-10], F-350 Super Duty [05-10], F-450 Super Duty [05-16], F-550 Super Duty [05-16], Excursion [05], E-350 Super Duty [05-16], E-450 Super Duty [05-16], E-350 Club Wagon [05], F-53 Motorhome Chassis [06-17], F-59 Commercial Stripped Chassis [11-17].
