[81-94] Automatic Transmission Friction Module Atx

The first sign is a flare between shifts, and by then the friction surface has already lost the bite it was built with.

ATX Atx Friction Module. This pack restores the torque capacity the unit had when it left the line.

Material and thickness together decide the torque the pack will hold. Shipping weight is 1 lb.

The parts list below is exactly what ships. Compare it against your teardown before ordering.

REMCO has supplied automatic transmission parts since 1991, and every order ships with its part listing so the receiving technician can check what arrived against what was ordered.

• Skip sourcing individual friction plates one by one - this kit puts all 10 friction pieces together in one box, ready to install without hunting down separate part numbers.
• NO steel plates, NO Automatic Transmission Filter, NO gaskets, NO seals, NO bands included. This kit covers friction discs only. Check your parts list before ordering to confirm this is the piece you need.
• Two distinct friction specifications in one kit: 6 intermediate reverse clutch frictions at .078 thickness and 4 E1FZ-7B164-A friction discs, matched specifically to ATX units built 1981 through 1994.
• Exact contents: 6 x ATX [81-UP] intermediate reverse clutch (.078) friction discs and 4 x E1FZ-7B164-A friction discs - 10 friction pieces total, kit weighs 1 lb. Packing list included in box.
• Before ordering, confirm your automatic transmission unit code is ATX and that the build year falls between 1981 and 1994. Unit code is typically found on the transmission case tag.

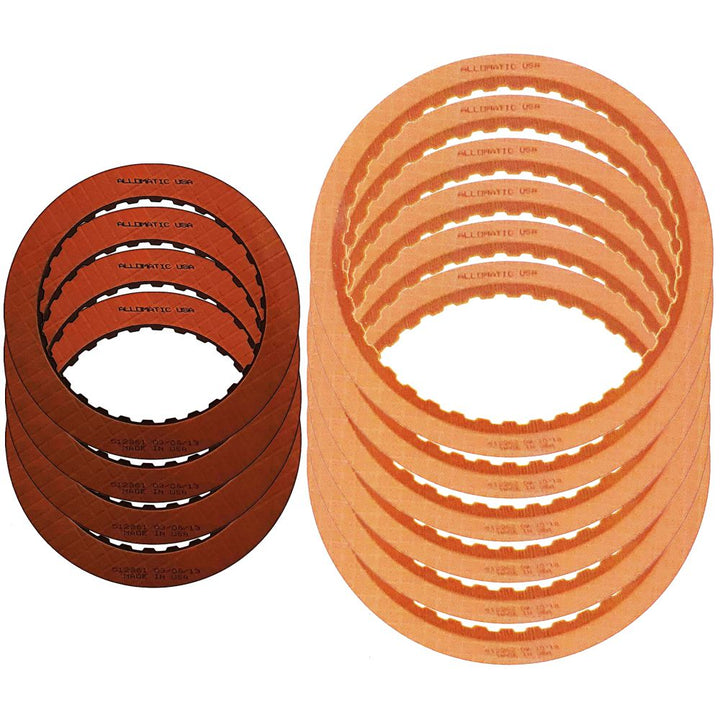

What's in the box

• 6 x Friction Clutch Plate, ATX Intermediate Reverse [.078" Thick] 91
• 4 x Friction Clutch Plate, E1FZ-7B164-A

Compatible vehicles

• Fits Escort [81-90], EXP [82-88], Taurus [86-91], Tempo [85-91], LN-7 [82-83], Lynx [81-87], Topaz [84-91].
