When the job calls for replacing friction plates across multiple clutch packs in an AW55-series automatic transmission, this kit puts all seven part numbers in one box so you pull what you need without hunting individual pieces. What sets this kit apart is the breadth of coverage: seven distinct frictions representing the c1 forward clutch, c2 direct clutch in two thickness specifications, the underdrive clutch, the low-reverse clutch in two configurations, and the b4 5th brake pack are all included, totaling 33 plates at 2 lb shipped.
REMCO has been working in automatic transmission parts since 1991, and every kit is assembled here by hand, piece by piece, counted against a parts list that ships inside the box. That list is your verification: open the box, pull the sheet, count against it before the unit goes on the bench.
The kit covers the AW55-50SN and AW55-51SN, with individual part numbers ranging from 1989-UP through 2005-UP depending on the clutch position. Friction specs vary by pack: the c2 direct and c1 forward run at .068 inch, the underdrive and low-reverse packs at .067, and the 2005-UP c2 direct at .059. Tooth counts and outer diameters also differ per pack, so matching the correct plate to the correct position on teardown is essential.
This is a friction-only kit. Steel plates, Automatic Transmission Filter, seals, gaskets, and bands are not included. If your rebuild requires those components, they need to be sourced separately. Verify your exact unit code, application year, and which clutch packs are being serviced before ordering.
- Restores clutch engagement in the AW55-50SN and AW55-51SN automatic transmission, addressing slipping and delayed shifts caused by worn friction material across multiple clutch packs.
- This kit contains frictions ONLY. No steel plates, no Automatic Transmission Filter, no seals, no gaskets, no bands. Confirm what else your rebuild requires before placing your order.
- Seven distinct friction part numbers in a single box: forward clutch, direct clutch, underdrive clutch, low-reverse clutch, and 5th brake pack frictions are all represented, covering the key wear points of this unit.
- 33 friction plates total: 7 c2 direct (.068, 34T, 4.254od), 6 b4 5th brake (.068, 47T, 5.551od), 4 underdrive (.067, 34T, 4.482od), 4 low-rev (.067, 40T, 6.302od), 4 c2 direct 05-UP (.059), 4 low-rev 89-UP (.067, 33T), 4 c1 forward (.068, 49T).
- Before ordering, confirm your unit code (AW55-50SN or AW55-51SN), model year, and which clutch packs need replacement. Part numbers span 89-UP through 05-UP applications within this family.

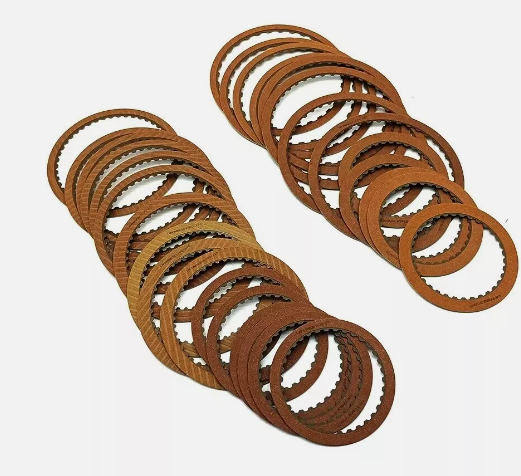

What's in the box
- 7 x Friction Clutch Plate, AW55-50SN c2 Direct [.068" Thick] 34 Teeth [4.254" OD]
- 6 x Friction Clutch Plate, AW55-50SN 51SN b4-5th Brake [1-2 Reverse] [.068" Thick 47 Teeth [5.551" OD]]
- 4 x Friction Clutch Plate, Low Reverse [.067" Thick] [40 Teeth] [6.302" OD] AW50-40 50-4
- 4 x Friction Clutch Plate, AW55-51SN c2 Direct [.059" Thick] 34 Teeth [4.254" OD]
- 4 x Friction Clutch Plate, Underdrive [.067" Thick] [34 Teeth] [4.482" OD] AW50-40 50-42LE
- 4 x Friction Clutch Plate, AW50-40 50-42LE Low Reverse [.067" Thick] [33 Teeth] [6.302" OD] 98
- 4 x Friction Clutch Plate, AW55-50SN c1 Forward [.068" Thick 49 Teeth [5.375" OD] AW55-51SN]
Compatible vehicles
- Fits C30 [07-13], C70 [01-09], S80 [04-06].
