When the CD4E automatic transmission needs new friction material across multiple clutch packs, this kit puts all five sets in one order. Fifteen friction plates covering direct, low reverse, forward, coast, and reverse clutches - each measured and counted by hand at REMCO before the box closes.
The breakdown is specific: four direct clutch frictions at .065 inch thickness, 24 teeth, 5.268 inch outer diameter, applicable from 1996 up; four low reverse clutch frictions at .065 inch, 32 teeth, 8.5 inch outer diameter; three forward clutch frictions at .065 inch, 32 teeth, 5.272 inch outer diameter; two coast clutch frictions at .065 inch, 24 teeth, 4.830 inch outer diameter for 1994 up applications; and two reverse clutch frictions at .065 inch, 6.065 inch outer diameter. Total weight is 2 lb.
This is a friction-only kit. It does not include steel separator plates, an Automatic Transmission Filter, seals, gaskets, bands, or any other overhaul components. If your rebuild requires steels or sealing components, those need to be sourced separately. The box includes a printed parts list so you can cross-check every piece on arrival.
Before placing the order, confirm that your transmission unit is the CD4E and that the application year is within the 1994-and-up range. The direct clutch plates specifically apply to 1996-and-up units, so verify the year against that detail if those plates are part of your repair. REMCO has specialized in automatic transmission parts since 1991 and assembles each kit to order, not from prepackaged stock.
- Five distinct clutch packs covered in one box: direct, low reverse, forward, coast, and reverse frictions for the CD4E unit.
- This kit contains friction plates only. No steel plates, no Automatic Transmission Filter, no seals, no gaskets. Check your parts list before ordering to avoid a return trip.
- All 15 pieces are counted and verified against the box contents sheet before the kit ships. REMCO has been assembling transmission kits since 1991.
- 15 friction plates total: 4 direct clutch (.065, 24T, 5.268 od), 4 low reverse (.065, 32T), 3 forward (.065, 32T, 5.272 od), 2 coast (.065, 24T, 4.830 od), 2 reverse (.065, 6.065 od). Kit weighs 2 lb.
- Verify your unit code is CD4E and confirm model year falls within [94-UP] before ordering. Direct clutch plates apply [96-UP] only.

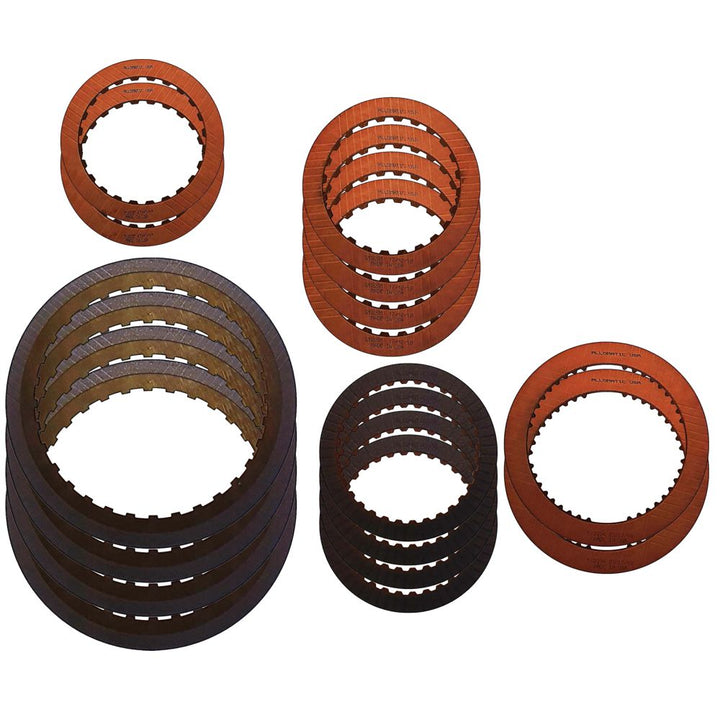

What's in the box
- 4 x Friction Clutch Plate, CD4E Direct [.065" Thick] [24 Teeth] [5.268" OD] High Energy
- 4 x Friction Clutch Plate, CD4E Low Reverse [.065" Thick] [32 Teeth] [8 5 8 OD]
- 3 x Friction Clutch Plate, CD4E Forward [.065" Thick] [32 Teeth] [5.272" OD]
- 2 x Friction Clutch Plate, CD4E Reverse [.065" Thick] [6.065" OD]
- 2 x Friction Clutch Plate, CD4E Coast [.065" Thick] [24 Teeth] [4.830" OD] 96
Compatible vehicles
- Fits Contour [95-00], Probe [94-00], Escape [01-02], X-Type [02], 626 [94-02], MX-6 [94-97], Tribute [00-02], Cougar [99-02], Mariner [04-08], Mystique [95-00].
