4L60E 4L65E 4L70E 4L65 4L70 [97-UP] Automatic Transmission Gasket Kit

When a fluid service or pan drop is on the bench, having a matched Automatic Transmission Filter Kit with Pan Gasket ready keeps the job moving without a second parts run. This listing covers exactly two pieces for 4L60E, 4L65E, 4L70E, and 4L65 automatic transmission units built from 1997 and up: one deep pan Automatic Transmission Filter and one duraprene bottom pan gasket, nothing more and nothing less.

The duraprene pan gasket is worth calling out specifically because not all pan gaskets are cut from the same material. Duraprene holds its shape under repeated heat cycles and seats evenly along the pan rail, which matters when you are torquing a pan back onto a unit that may have seen years of service. The deep pan Automatic Transmission Filter pairs with it to give you a clean fluid pickup after reassembly.

Both pieces were pulled individually and checked against the parts list before the box was sealed. A printed parts list ships inside the box so you can verify what arrived matches what was ordered. REMCO has been working in automatic transmission parts since 1991, and that process of hand-picking and checking each order is how every shipment goes out.

What this set does not cover is equally important to know before you place the order. There are no friction clutch packs, no steel reaction plates, no bands, no solenoids, and no additional seals or gaskets beyond the pan gasket. If your job calls for a full overhaul, you will need to source those components separately.

Applies to 4L60E, 4L65E, 4L70E, and 4L65 units from 1997 up. Before ordering, verify the transmission code on the unit itself and confirm the production year, since fluid pan specs can shift across model runs.

• This 2-piece set covers the pan Automatic Transmission Filter Kit with Pan Gasket in a single order, addressing two of the most common service points during a fluid service or rebuild on 4L60E, 4L65E, 4L70E, and 4L65 units.
• This set does NOT include friction discs, steel plates, bands, solenoids, or any seals beyond the pan gasket. If your service requires those components, check your parts list before ordering to avoid a return.
• The pan gasket in this set is made from duraprene, a material that compresses evenly against the pan rail and resists the heat cycles typical of automatic transmission fluid, reducing the chance of a pan leak after reassembly.
• Contents: 1 deep pan Automatic Transmission Filter for 4L60E/4L65E [97-UP] and 1 TH700-R4/4L60E bottom pan duraprene pan gasket. Total shipped weight: 1 lb.
• Before ordering, confirm the exact transmission code stamped on your unit, the model year of the vehicle, and whether your unit is a 4L60E, 4L65E, 4L70E, or 4L65, as fluid pan configurations can vary by production date.

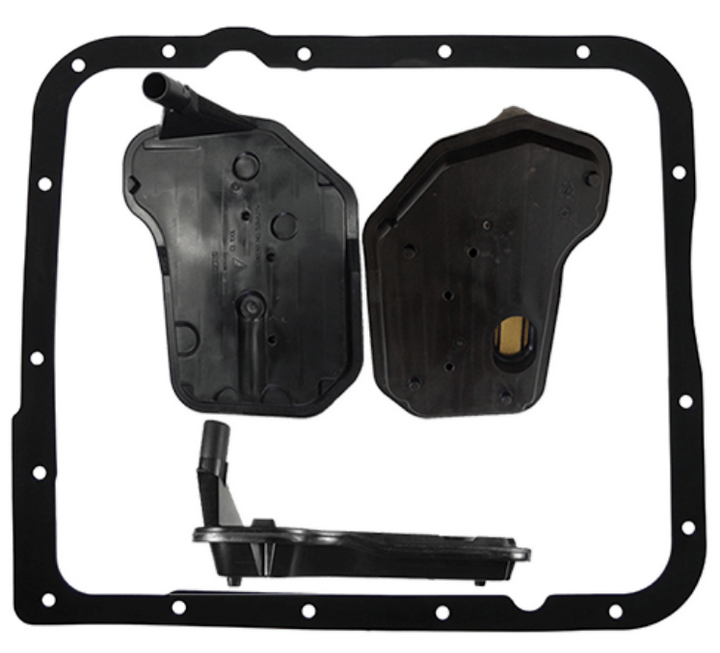

What's in the box

• 1 x Pan Gasket, TH700-R4-4L60E Bottom Pan Duraprene
• 1 x Automatic Transmission Filter, 4L60E 4L65E Deep Pan Transmission - Plastic Design - Fits - Replacement - Part

Compatible vehicles

• Fits Express G1500 1/2 Ton - Van [96], S10 - Pickup [93-96], Silverado 3500 1 Ton - Pickup [01-03], Sierra 2500 3/4 Ton 2WD - Pickup [99-03], Rainier [04-06], Camaro [93-96], Corvette [93-96], Blazer S10 2WD [93-03], C1500 1/2 Ton - Pickup [93-96], C2500 3/4 Ton - Pickup [93-96], Express G2500 3/4 Ton - Van [97-03], K1500 1/2 Ton 4WD - Pickup [93-96].
