FIOD [84-UP] Automatic Transmission Filter on 4x4 and Pan Gasket

When an FIOD or FIOD unit needs a pan service and the application is a 4x4, these two pieces cover the job without buying parts separately: one bottom pan cork gasket and one 4x4 93 Automatic Transmission Filter, both sized for the FIOD and FIOD family from 1984 onward. What sets this set apart from a generic pan kit is that the Automatic Transmission Filter here is the 4x4 93 version, which is not interchangeable with the standard Automatic Transmission Filter used in non-4x4 applications of the same transmission.

The automatic transmission pan gasket in this set is a cork piece that seals against the FIOD and FIOD pan rail. Cork compresses evenly along a cast or stamped pan surface and holds its shape through the thermal cycles a transmission sees in regular service. The Automatic Transmission Filter is matched to 4x4 units produced in or after 1984, so there is no need to cross-reference a separate listing for that variant.

At REMCO, each set like this one is assembled by hand. The two pieces are pulled individually, checked against the printed parts list, and packed together. That list ships inside the box, so the technician at the bench can verify both parts before the pan comes off the vehicle.

This set does not include friction plates, steels, bands, a valve body Automatic Transmission Filter, or any hard parts. If the rebuild or service calls for those components, they need to be sourced separately. Ordering the wrong Automatic Transmission Filter because the 4x4 application was not confirmed is one of the most common return reasons for this type of set, so check the transmission code and the drivetrain configuration before placing the order. Total weight is 1 lb.

• FIOD and FIOD units built from 1984 onward get a dedicated 4x4 Automatic Transmission Filter and a matching bottom pan cork gasket in a single purchase, covering two of the most common service points in one order.
• This set does NOT include friction discs, steel plates, bands, or any other internal components. If your job calls for those parts, check your parts list before ordering to avoid a second shipment.
• The cork bottom pan gasket in this set is cut specifically for the FIOD and FIOD pan rail, and the Automatic Transmission Filter is the 4x4 93 version, not the standard Automatic Transmission Filter, so the fit matches the application without trimming or adapting.
• Exact contents: 1 FIOD bottom pan cork pan gasket (TEC-011062) and 1 FIOD 4x4 93 Automatic Transmission Filter. Combined weight is 1 lb. Both pieces are verified against the parts list before the box is sealed.
• Before ordering, confirm your transmission is coded FIOD or FIOD, that it is a 4x4 application, and that the unit falls in the 1984-and-up range. An incorrect code means the Automatic Transmission Filter will not seat correctly.

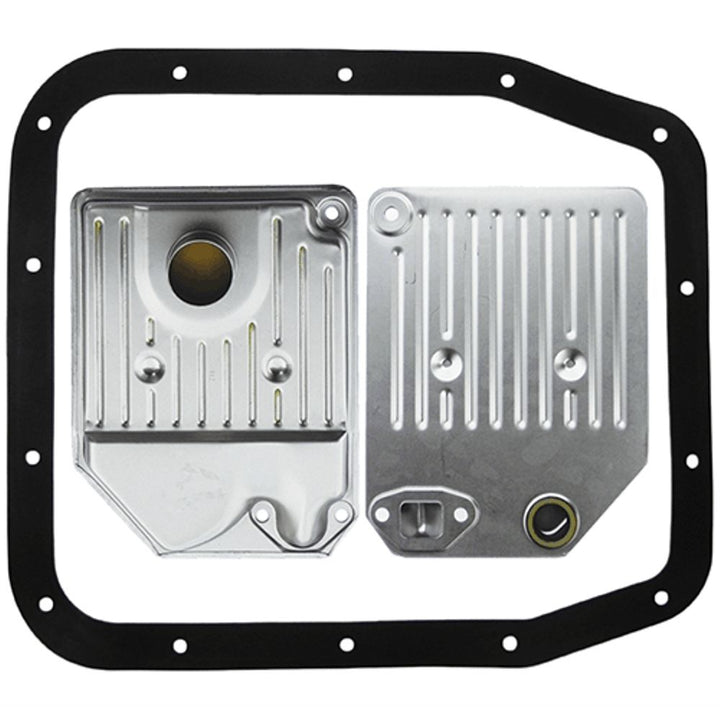

What's in the box

• 1 x Automatic Transmission Filter, Aod/fiod 4x4 93
• 1 x Pan Gasket, Aod/fiod Bottom Pan Cork

Compatible vehicles

• Fits Thunderbird [84-89], Bronco [85-89], F250 3/4 Ton - Pickup [84-89], F350 1 Ton - Pickup [84-89], Mark VII [84-89], Town Car [84-89], Cougar [84-89], LTD [84-85], LTD Country Squire [84-89], LTD Crown Victoria [90-91].
