6L80E 6L90E 6L80 [06-25] Automatic Transmission Filter ON 4.73 AND PAN

When a pan gasket fails or a clogged screen starves the automatic transmission of clean fluid, the damage shows up fast and the fix has to be exact. This two-piece set covers both points: a bonded rubber bottom pan gasket for the 18-bolt configuration and a screen sized at 6.30 inches overall height with a 1.30-inch neck spacer, both selected for 6L80E, 6L90E, and 6L80 units from 2006 forward.

The bonded rubber construction on the pan gasket means the sealing material is locked to the carrier, so it seats flat and stays in place during installation without shifting or bunching at the bolt holes. The screen dimensions are specific: 6.30 inches overall height and a 1.30-inch neck spacer. If your unit takes a different screen height or spacer, this is not the correct part, so measure or cross-reference before ordering.

What this set does not include is equally important to spell out. There are no friction discs, no steel plates, no bands, no solenoids, and no additional sealing rings. If your job calls for any of those components, they need to be sourced separately. Ordering with an incomplete parts list is the most common reason for delays on a rebuild job.

At REMCO, operating in automatic transmissions since 1991, every set like this one is assembled by hand, piece by piece, and checked against the parts list before the box is closed. A printed parts list ships inside the box so you can verify contents on arrival before the unit goes on the bench.

Total weight is 1 lb. Confirm the transmission code on your unit reads 6L80E, 6L90E, or 6L80 and that the vehicle year is 2006 or later before placing your order.

• Stopping fluid leaks at the pan and keeping debris out of the valve body are the two jobs this pair of parts handles in one order, cutting comeback risk on the same repair.
• This set does NOT include friction discs, steel plates, bands, solenoids, or sealing rings. If your rebuild calls for those parts, check your parts list before ordering to avoid a second shipment.
• The pan gasket uses a bonded rubber design on an 18-bolt pattern, and the screen is spec'd at 6.30 inches overall height with a 1.30-inch neck spacer, matching the dimensional requirements of these units without trimming or shimming.
• Exact contents: 1 bonded rubber bottom pan gasket, 18-bolt, and 1 screen, 6.30 overall height, 1.30 neck spacer. Total weight: 1 lb. Two pieces, no extras, no substitutions.
• Before ordering, confirm the transmission code stamped on the unit is 6L80E, 6L90E, or 6L80, and verify the model year falls within the 2006-and-up application range covered by this set.

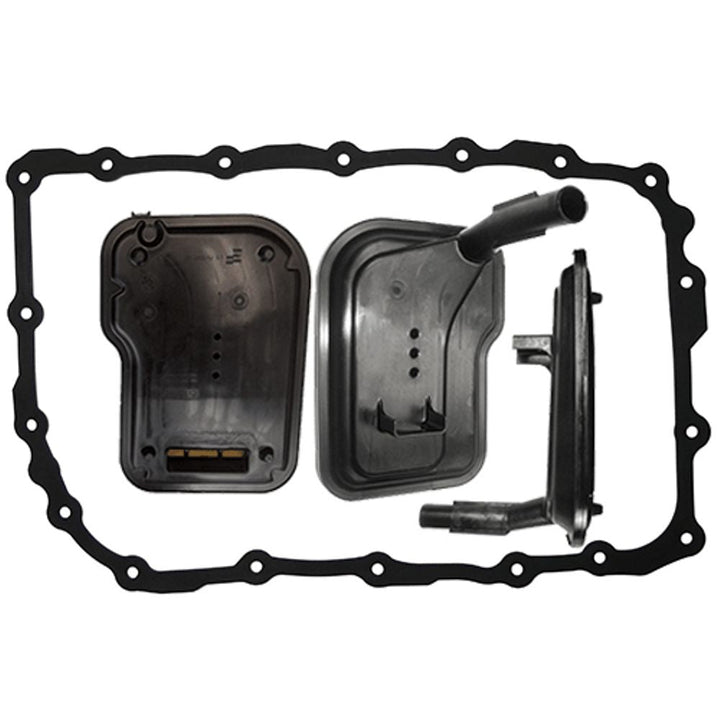

What's in the box

• 1 x Pan Gasket, 6L80E Bottom Pan Bonded Rubber [18 Bolt] [16 3-4 Long]
• 1 x Automatic Transmission Filter, 6L50E [6.30 Overall Height 1.30 Neck Spacer]

Compatible vehicles

• Fits CTS-V [04-15], Escalade/ESV/EXT [07-15], SRX [06-09], STS [06-11], XLR [06-11], Camaro [10-13], Corvette [06-11], SS [14-17], Avalanche [08-13], Express 2500 [10-11], Express 3500 [10-11], Silverado 1500 1/2 Ton [07-09].
