W4A32 [90-07] Automatic Transmission Filter A4AF-3 A4BF-2 -1 W4A33- F4A32

When a transmission comes out for service, replacing the screen and resealing the pan at the same time is standard practice, and this two-piece set covers both steps for A4AF-3, A4BF-3, and W4A32-1 automatic transmission units built from 1990 through 2007. What makes this set specific is the combination: a half-plastic screen designed for the A4AF-3 and A4BF-3 family alongside a duraprene bottom pan gasket cut for the 13-bolt pan configuration, so both parts are sized and matched for the same application.

The screen carries part references for A4AF3 and A4BF3 units from 2000 onward within that range, while the gasket covers the broader A4AF-2, A4BF1, A4BF-2, and A4BF-3 bottom pan. If your unit falls under any of those codes and the year fits, both pieces apply. The total shipped weight is 1 lb, which reflects the lightweight plastic screen body and the gasket alone.

This set does not include friction clutch packs, steel plates, sealing rings, bands, solenoids, or any other internal components. It is a screen-and-gasket combination only. Technicians who need a complete overhaul will need to source those additional parts separately.

Each set is assembled here by REMCO, component by component, and checked against its parts list before the box is closed. REMCO has been working in automatic transmissions since 1991, and every box ships with a printed contents list so you can verify what arrived before the teardown begins.

Before placing the order, pull the transmission code directly off the unit and confirm it matches A4AF-3, A4BF-3, or W4A32-1. Also verify the vehicle year sits between 1990 and 2007. Ordering from the tag on the unit, not from memory, avoids returns and keeps the job moving.

• Pairing a fresh screen with a new pan gasket in one order removes the risk of resealing the pan and leaving a clogged screen inside the unit.
• This set does NOT include friction discs, steel plates, sealing rings, bands, or solenoids. Review your full rebuild parts list before ordering to avoid a second shipment.
• The screen uses a half-plastic construction and the pan gasket is duraprene material, a 13-bolt design cut to fit the bottom pan of A4AF-3 and A4BF-3 transmissions without trimming.
• Contents: 1 duraprene bottom pan gasket (13-bolt, pan gasket A) and 1 half-plastic automatic transmission screen. Total kit weight: 1 lb.
• Before ordering, confirm the transmission code on the unit matches A4AF-3, A4BF-3, or W4A32-1, and verify the model year falls within the 1990 to 2007 range covered by this set.

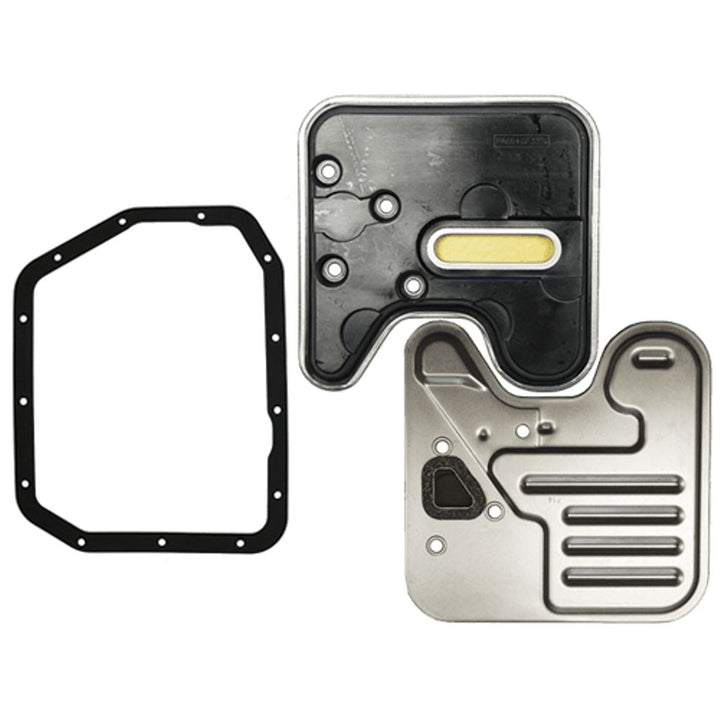

What's in the box

• 1 x Pan Gasket, A4AF-2 A4BF1 A4BF-2 A4BF-3 Bottom Pan Duraprene [13 Bolt]
• 1 x Automatic Transmission Filter, A4AF3 A4BF3 [I] [Half Plastic]

Compatible vehicles

• Fits Accent [99-07], Elantra [96-00], Tiburon [97-02], Rio / Rio5 [06-07].
