When a 09G automatic transmission comes apart for a full rebuild, every clutch pack needs correctly sized friction plates -- the wrong diameter or tooth count will not seat properly and the unit will fail again within miles. This kit puts 22 pieces on the bench in a single order: five separate friction specifications matched to each clutch application in the 09G, plus the overhaul gasket set to seal the whole unit.
The breakdown by clutch application is exact. Six B2 low-reverse frictions measure .0676 thick with a 6.716 outside diameter. Five K1 plates cover the 1-2-3-4 clutch at .06656 thickness and 5.790 outside diameter. Four K3 pieces handle the 3-5 reverse clutch at .066 thick and 6.180 outside diameter. Three B1 hi-energy frictions work the 2-6 clutch at .066 thick and 7.245 outside diameter. Three K2 frictions serve the 4-5-6 clutch at .066 thick and 5.725 outside diameter. The overhaul gasket kit completes the set so seals and gaskets do not need a separate search.
Stepper steels are not part of this kit. The Less Steels designation means separator plates are intentionally excluded -- check your rebuild sheet and order steels independently if your inventory does not have them already.
REMCO has been working in automatic transmission parts since 1991. Each kit is assembled here, piece by piece, against its parts list before the box closes. A printed parts list ships inside so the tech can check off every piece on arrival.
Total shipped weight is 7 lb. Application is the 09G unit, production years 03-13. Confirm the code on the case and the year before placing the order.
- Restoring clutch engagement and stopping slip in the 09G keeps the unit from burning up again during the rebuild -- this kit addresses the friction side of that job.
- STEEL PLATES ARE NOT INCLUDED: this is the Less Steels variant, so check your parts list for separator steels before ordering -- you will need to source them separately.
- Five distinct friction specifications in one box: B2 low-reverse at .0676 thickness, K1 1-2-3-4 at .06656, K3 3-5 reverse at .066, B1 2-6 hi-energy at .066, and K2 4-5-6 at .066 -- each clutch pack gets its own correct plate, not a generic substitute.
- Box contains 22 pieces: 6 B2 frictions, 5 K1 frictions, 4 K3 frictions, 3 B1 hi-energy frictions, 3 K2 frictions, and 1 overhaul gasket kit for the 09G automatic transmission. Shipped weight 7 lb.
- Before ordering, confirm the unit code stamped on the case is 09G and that the vehicle application falls within the 03-13 production range -- wrong code means wrong friction diameters and tooth counts.

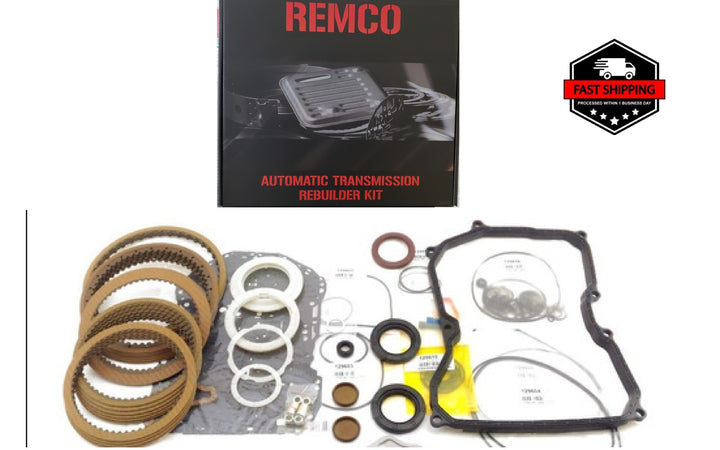

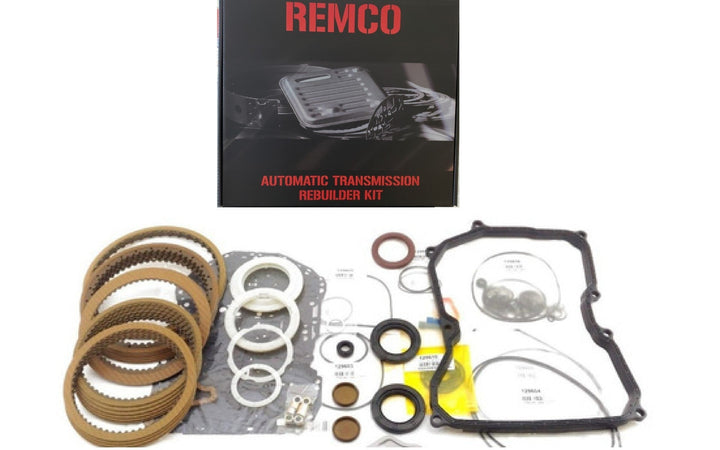

What's in the box
- 6 x Friction Clutch Plate, 09K 09g b2 [Low Reverse] .0676 Teeth 6.716" OD
- 5 x Friction Clutch Plate, 09K 09g k1 [1-2-3-4] .06656 Teeth 5.790" OD
- 4 x Friction Clutch Plate, 09K 09g k3 [3-5 Reverse] .066" Thick 56t6.180 od2003-up
- 3 x Friction Clutch Plate, 09K 09g b1 [2-6] .066" Thick 40 Teeth 7.245" OD High Energy
- 3 x Friction Clutch Plate, 09K 09g k2 [4-5-6] .066" Thick 5.725" OD

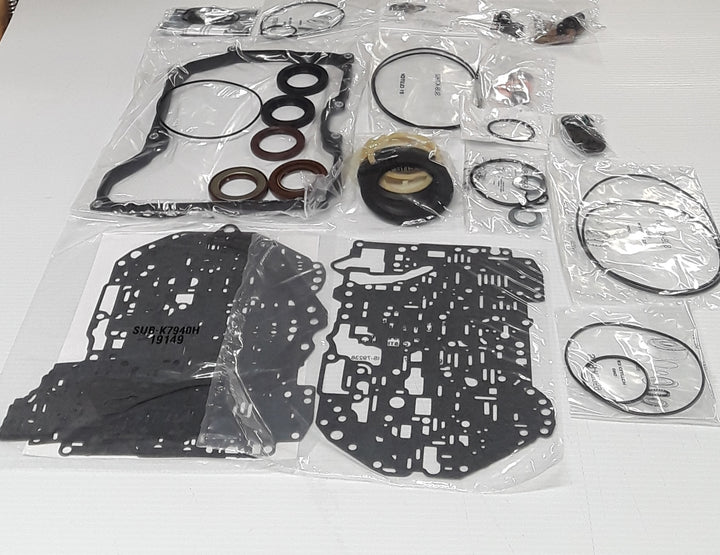

- 1 x Overhaul Gasket Kit, 09K 09M VW09G
Compatible vehicles
- Fits CC [09], Tiguan [08], Touran [03-04], Passat [06-13], A3 [06-16], A4 [06-10], Q3 [15-17], TT [00-10], Cooper [05-13], Altea [04-09], Leon [05-12], Toledo [05-08].
