6L80E 6L90E [06-25] Automatic Transmission Kit Pump New Bell Hausing Stator

When an automatic transmission pump fails on a 6L80E or 6L90E unit, the three components most often replaced together are the bell housing, the stator, and the pump rotor, and this set delivers exactly those three pieces under one SKU. What separates this set from a generic assortment is that each piece is tied to a specific casting number or dimensional spec: the bell housing carries cast number 24239892 and is built for the V-8 application, the stator ships as part number 24248573, and the 13-vane rotor kit is held to a finished diameter of 17.948mm to 17.961mm, so there is no guessing about fit before the unit goes on the bench.

At REMCO, operating in automatic transmissions since 1991, every order like this one is assembled here by hand. Each component is pulled individually, matched against the item list for the SKU, and packed with that list inside the box so the technician receiving it can verify the count on arrival. Nothing about this set comes pre-bagged from a supplier shelf.

The set weighs 18 lb shipped and covers 6L80E and 6L90E applications from 2006 forward. It does not include friction clutches, steel reaction plates, an Automatic Transmission Filter, sealing rings, or any gasket set. If your rebuild requires those parts, they need to be sourced separately. Confirm the transmission code stamped on the unit, the model year, and the engine type before placing the order, because the bell housing in this set is specified for the V-8 variant. Ordering the wrong pump housing is a common and avoidable delay, so a few minutes of verification up front protects the timeline on the whole job.

• Restores pump assembly function on 6L80E and 6L90E units, addressing failures tied to worn or damaged bell housing, stator, and rotor components.
• This set does NOT include clutch packs, steel plates, sealing rings, gaskets, Automatic Transmission Filter, or bands. Review your full parts list before ordering to avoid a second trip.
• The 13-vane pump rotor ships measured at 17.948mm to 17.961mm, and the bell housing is cast to spec 24239892, so dimensions are known before the part goes in.
• Contents: 1 NEW bell housing cast 24239892 for 6L90E/6L80E V-8, 1 NEW stator 24248573, 1 13-vane pump rotor kit (17.948-17.961mm). Total weight: 18 lb.
• Before ordering, confirm your transmission code is 6L80E or 6L90E, verify the model year falls in the 2006-and-up range, and check the engine designation matches the V-8 application on the bell housing.

What's in the box

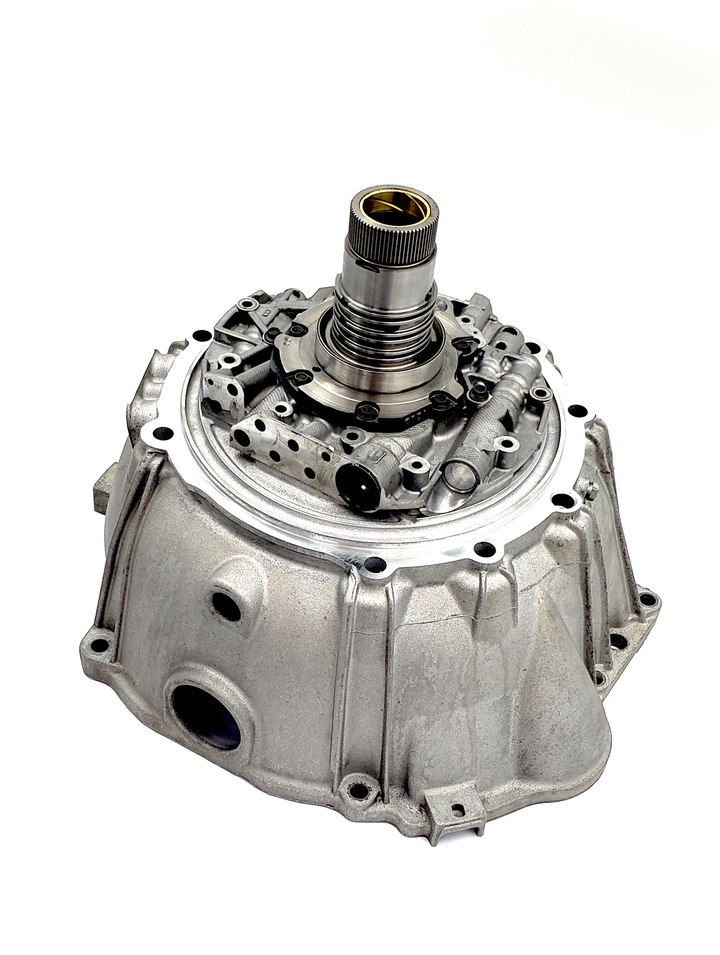

• 1 x Pump, Bell Housing NEW 6L90 6L80 [ v-8] [ Body] [Cast 24239892]
• 1 x 6L80E STATOR NEW 24248573 Hard Part
• 1 x Pump, 6L50E 6L80E 6L90E 13-vane [17.948 mm-17.961 Mm] Rotor Kit

Compatible vehicles

• Fits CTS-V [04-15], Escalade/ESV/EXT [07-15], SRX [06-09], STS [06-11], XLR [06-11], Camaro [10-13], Corvette [06-11], SS [14-17], Avalanche [08-13], Express 2500 [10-11], Express 3500 [10-11], Silverado 1500 1/2 Ton [07-09].
