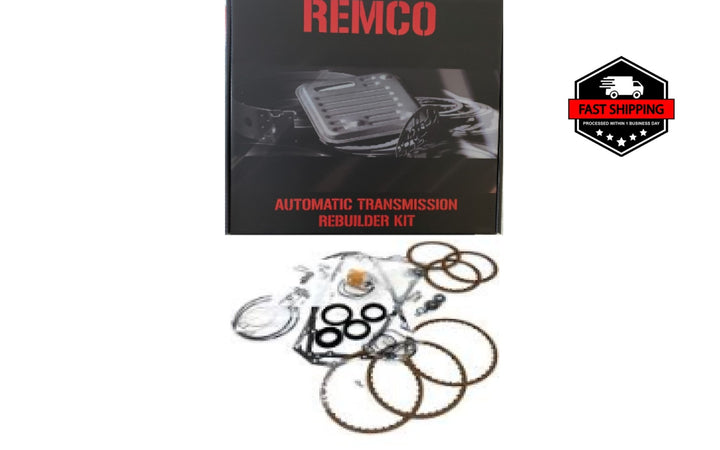

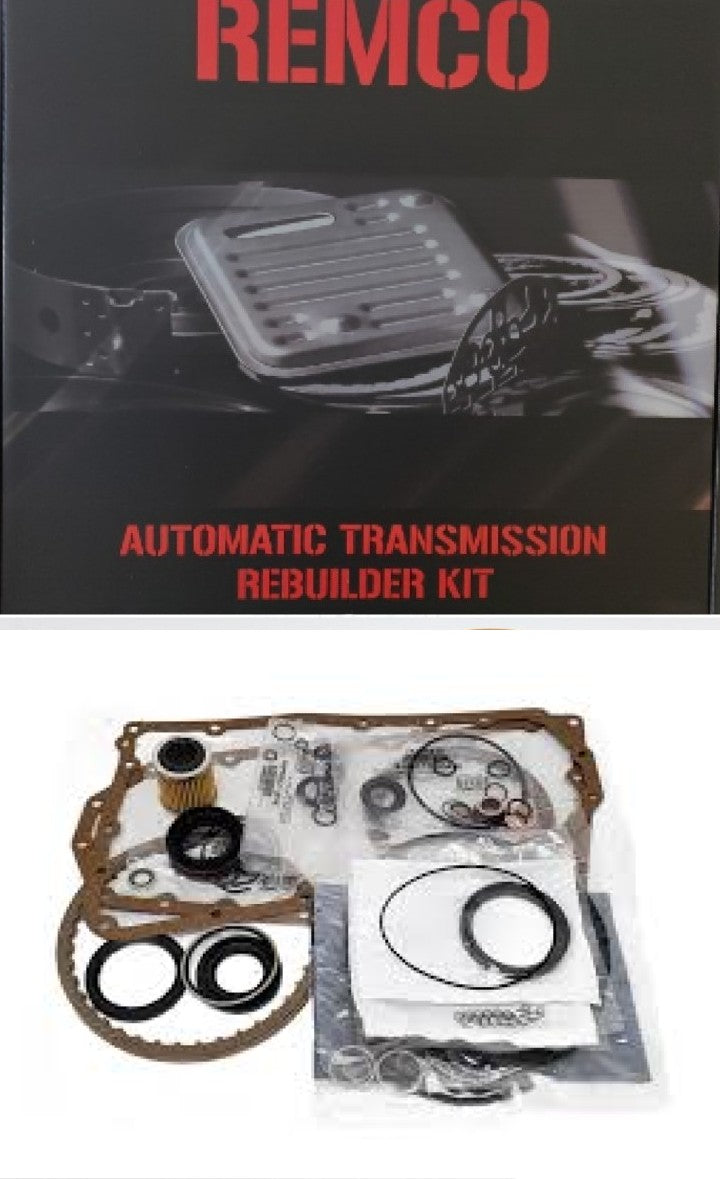

JF011E [05-UP] Automatic Transmission Rebuild Kit w/ Frictions Filter

JF011E RE0F10A Rebuild Kit for JF011E automatic transmissions, 2005 and later. Includes frictions, gasket and seal set and Automatic Transmission Filter for a complete overhaul. 9 pieces in 5 components.

• Restoring a slipping or leaking JF011E means replacing every seal, gasket, and friction at once so the unit does not come apart again weeks after the job.
• No steel plates are included in this kit. If your rebuild requires steel discs, check your parts list and order them separately before starting the teardown.
• Three forward clutch frictions (.059 thick, 36 teeth, 5.435 OD) and three reverse clutch frictions (.069 thick, 50 teeth) give this kit a defined friction count that matches the JF011E application.
• Contents: 3 forward frictions, 3 reverse frictions, 1 overhaul gasket kit, 1 main Automatic Transmission Filter, 1 external Automatic Transmission Filter. Nine pieces total, 6 lb shipped.
• Confirm the transmission code stamped on the unit and the model year match JF011E [05-UP] before ordering. Gasket and Automatic Transmission Filter parts are listed as [07-UP] within this kit.

What's in the box

• 3 x Friction Clutch Plate, Reverse [.069 in Thick] [50 Teeth] [6-5 8od]. 5EAT
• 3 x Friction Clutch Plate, RE0F09A Forward .059 in Thick 36 Teeth 5.435 in OD

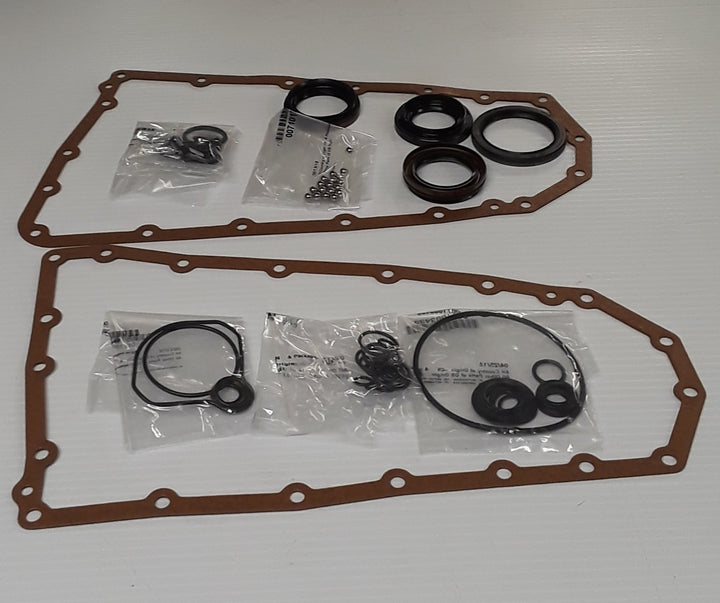

• 1 x Overhaul Gasket Kit, [REOFO10A]

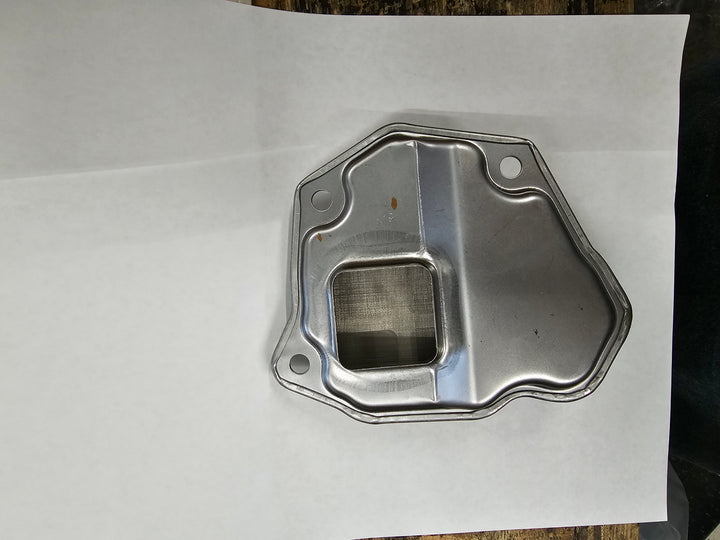

• 1 x Automatic Transmission Filter, Filte Main

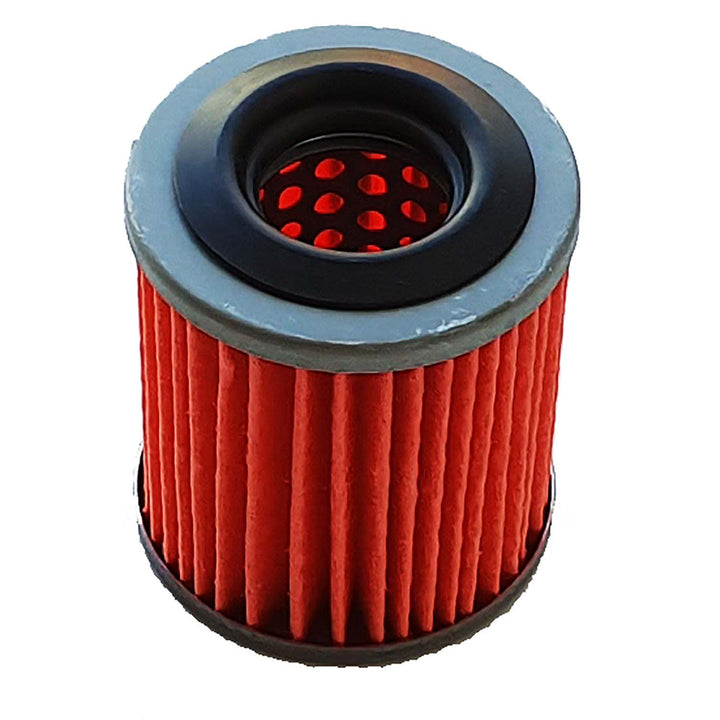

• 1 x Automatic Transmission Filter, External

Compatible vehicles

• Fits Caliber [07-12], Compass [07-13], Patriot [07-13], Lancer [08-12], Outlander [08-13], Koleos [07-12], Kizashi [10-12], SX4 [09-12].
