09G 09K 09M [03-13] Automatic Transmission Rebuild Kit w/ Frictions Pistons

09G 09K 09M Rebuild Kit for 09G, (TF60SN) and 2003-13 automatic transmissions, 2003 to 2013. Includes high energy frictions, pistons, gasket and seal set and Automatic Transmission Filter for a complete overhaul. 26 pieces in 8 components.

• Restoring a slipping or overheating 09G automatic transmission requires a complete set of friction plates, seals, and pistons all matched to spec - this kit covers exactly that in one order.
• This kit does NOT include steel plates. If your rebuild also needs steels, check your parts list before ordering so you are not missing components when the unit is on the bench.
• Four distinct friction packs are included by clutch pack: K1 1-2-3-4, B2 low-reverse, K3 3-5-rev, and B1 2-6 hi-energy plus K2 4-5-6, all cut to the OD and tooth count of the 09G.
• 26 pieces total: 6 K1 frictions, 6 B2 frictions, 4 K3 frictions, 4 B1 hi-energy frictions, 3 K2 frictions, 1 overhaul gasket kit, 1 shallow-pan narrow flush intake Automatic Transmission Filter, 1 bonded piston kit (4 pistons). Weight: 10.33 lb.
• Before ordering, confirm the transmission code stamped on the unit is 09G and that the production year falls in the 2003-2013 range - internal differences between model years can affect fitment.

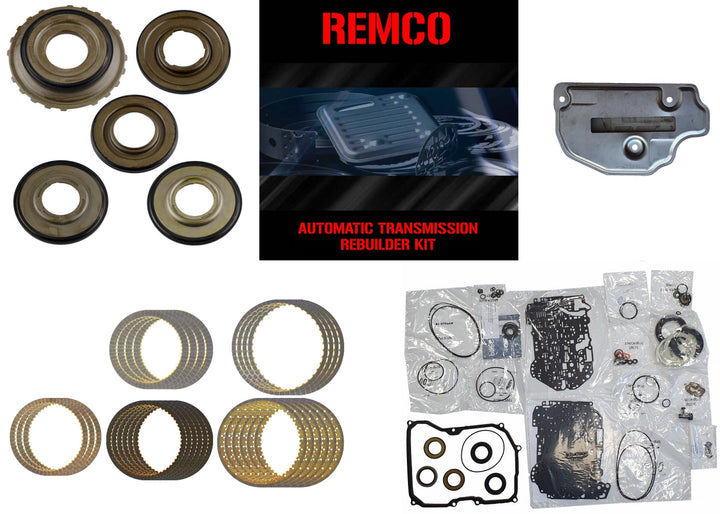

What's in the box

• 4 x Friction Clutch Plate, b1 [2-6] .066 in Thick 40 Teeth 7.245 in OD High Energy
• 6 x Friction Clutch Plate, b2 [Low Reverse] .0676 Teeth 6.716 in OD
• 6 x Friction Clutch Plate, k1 [1-2-3-4] .06656 Teeth 5.790 in OD
• 4 x Friction Clutch Plate, k3 [3-5 Reverse] .066 in Thick 56t6.180 od2003-up
• 3 x Friction Clutch Plate, k2 [4-5-6] .066 in Thick 5.725 in OD
• 1 x Piston Kit, Bonded Motor 2.5 4 Pieces
• 1 x Overhaul Gasket Kit, VW09G
• 1 x Automatic Transmission Filter, Shallow Pan Narrow Flush Intake

Compatible vehicles

• Fits CC [09], Tiguan [08], Touran [03-04], Passat [06-13], A3 [06-16], A4 [06-10], Q3 [15-17], TT [00-10], Cooper [05-13], Altea [04-09], Leon [05-12], Toledo [05-08].
