RE4R01A [89-98] Automatic Transmission Rebuild Kit w/ Band Frictions

RL4R01A RE4R01A JR403E Rebuild Kit for JR403E automatic transmissions, 1989 to 1998. Includes frictions, band and gasket and seal set for a complete overhaul. 28 pieces in 8 components.

• RL4R01A automatic transmission: six clutch packs covered in one box: low reverse, forward, high, overrun, and two reverse friction sets totaling 26 discs, plus an overdrive flex band and a full overhaul gasket kit.
• THIS KIT DOES NOT INCLUDE steel separator plates. If your rebuild requires steels, source them separately before ordering so the job is not stalled mid-teardown.
• The overdrive flex band included here is a 1-1/2 wide tab, single-tab end design specific to this unit. Verify that detail against the band you are replacing before pulling the trigger.
• Contents: 7 low-reverse frictions, 7 forward frictions, 5 high-clutch frictions, 3 overrun frictions, 2 reverse clutch frictions, 2 reverse frictions, 1 overdrive band, 1 overhaul gasket set. 28 pieces total, 3.7 lb.
• Before ordering, confirm the transmission code on the unit itself matches JR403E and that the vehicle year falls within the 89-98 range covered by this kit.

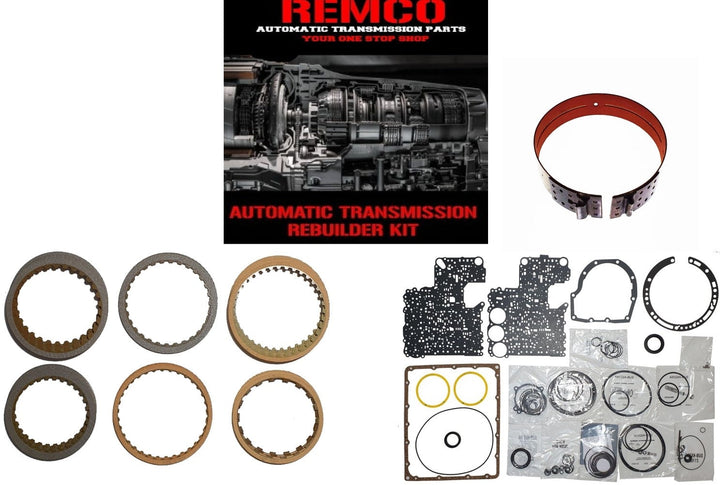

What's in the box

• 7 x Friction Clutch Plate, Low Reverse [.076 in Thick 30 Teeth]
• 7 x Friction Clutch Plate, R4AXEL Forward [.063 in Thick] 36 Teeth 98
• 5 x Friction Clutch Plate, RL4F02A RE4F02A High [.063 in Thick] 30 Wide Teeth [5.235 in OD]
• 3 x Friction Clutch Plate, Overrun [.079 in Thick] 18 Teeth
• 2 x Friction Clutch Plate, Reverse [.079 in Thick] 34 Teeth 92
• 2 x Friction Clutch Plate, R4AXEL Reverse [.078 in Thick] 30 Teeth 96
• 1 x Band, Flex Overdrive 1-1 2wide Tab Only On One End 98
• 1 x Overhaul Gasket Kit

Compatible vehicles

• Fits Frontier [98-04].
