4L60E 4L65E 4L70E Automatic Transmission Rebuild Kit Performance HD Stage 1

Rebuild Kit Performance Heavy Duty for 4L60E, 4L65E and 4L70E automatic transmissions. Built around Stage 1 Red Clutches and Z-Pack. Includes Stage 1 performance frictions, pistons, band, gasket and seal set, bushings and Automatic Transmission Filter for a complete overhaul. 8 pieces in 8 components.

• Skip hunting down 8 separate parts: this kit puts overhaul gaskets, bonded pistons, bushing kit, sun shell, sprag, Automatic Transmission Filter, flex band, and Stage 1 red clutch pack in one box.
• NO steel plates included. This is a Less Steels variant. If your job requires steels, source them separately before ordering so the rebuild is not held up waiting on parts.
• Stage 1 red clutches with Z-Pack and a high-performance blue bonded piston kit distinguish this build from a standard overhaul, addressing common wear points in performance-driven applications.
• Box contains exactly 8 pieces: 1 overhaul gasket kit, 1 bonded piston kit, 14 bushings, 1 reaction sun shell, 1 28/29-element dual-cage sprag, 1 deep pan Automatic Transmission Filter, 1 flex band, 1 Stage 1 red clutch pack. Kit weighs 15 lb.
• Before ordering, confirm the transmission code is 4L60E, 4L65E, or 4L70E and that the unit year falls within 97-03. Verify no steels are needed for your job.

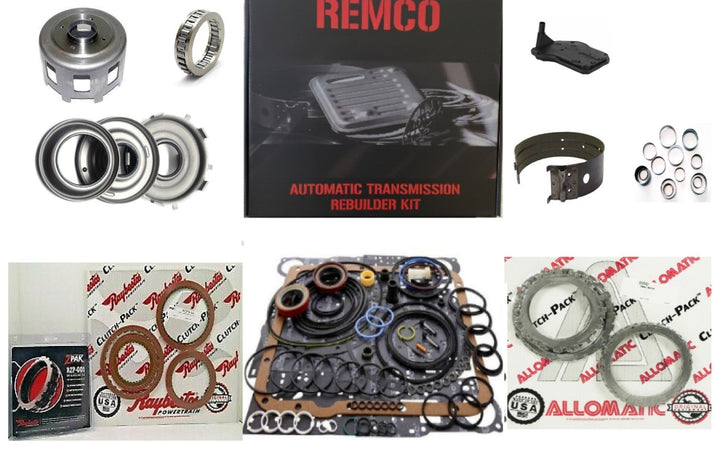

What's in the box

• 1 x Clutch Pack, STAGE 1 WITH RED AND Z-pack
• 1 x Piston Kit, BONDED HIGH PERFORMANCE BLUE
• 1 x Band, Flex 2-4 [2.620 in Wide] [red Lining] Aftermarket
• 1 x Overhaul Gasket Kit
• 1 x Bushing Kit, [14 Pieces]
• 1 x Automatic Transmission Filter, Deep Pan Transmission - Plastic Design
• 1 x Shell New 700-R4 4L60E 4L65E Reaction Sun [Aftermarket Design] The Monster Hard Part
• 1 x Sprag, Forward Input 28 Or 29 Elemen.ts Dual Cage

Compatible vehicles

• Fits Express G1500 1/2 Ton - Van [96], S10 - Pickup [93-96], Silverado 3500 1 Ton - Pickup [01-03], Sierra 2500 3/4 Ton 2WD - Pickup [99-03], Rainier [04-06], Camaro [93-96], Corvette [93-96], Blazer S10 2WD [93-03], C1500 1/2 Ton - Pickup [93-96], C2500 3/4 Ton - Pickup [93-96], Express G2500 3/4 Ton - Van [97-03], K1500 1/2 Ton 4WD - Pickup [93-96].
