A518 A618 46RE 47RH 48RE [90-02] TRANSMISSION REBUILT KIT STAGE-1 Raybestos RED CLUTCHES STEELS BAND FILTER

A500 A727 A518 A618 PUMP 46RE Complete Transmission Rebuild Kit [1962-UP]

OE-quality automatic transmission kit for service and rebuild applications.

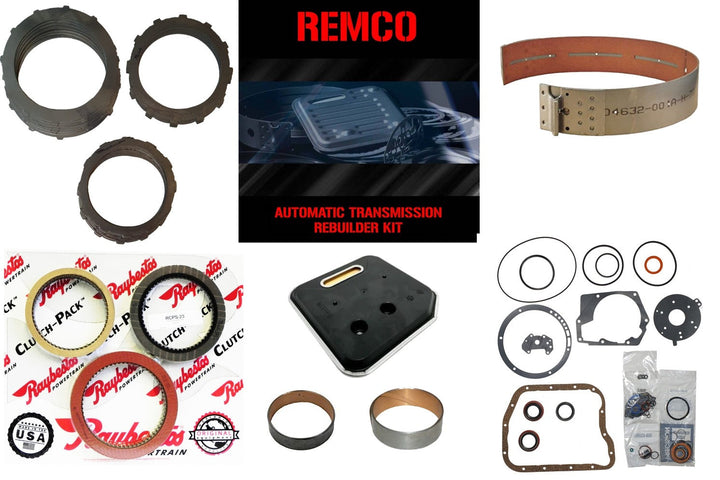

WHAT'S IN THE BOX:

- 8x Steel forward and direct clutch (.070) 1962-up a727 a518 48re (ADA-001281)

- 4x A500 overdrive brake clutch (.068) 1988-up steel (ADA-001530)

- 8x Steel overdrive direct clutch (.069) 1988-up a (ADA-001531)

- 5001x Clutch pack RAYBESTO.S stage 1 red clutches performance a518 a (ADP-RCPS-23)

- 6181x A727 a518 a618 band flex Raybestos kickdown flex (w kevlar) (CBF-49390R)

- Bushing direct drum (w oil groove) 1971-up a727 a518 a (CBV-033384)

- 6181x Pump bushing pump body (bronze) a727 a (CBV-033386)

- 5181x Filter 1998-Up (Metal and Plastic) A727A518A (CFI-005607)

- 6181x A518 / 46RE / 47RH / / PRECISION Overhaul Gasket Kit - Complete Set with High-Quality Seals Gaskets and Components (TED-002212)

Vehicle Compatibility:

- B150 1/2 Ton - Van [90-93] 3.9, 5.2

- B250 3/4 Ton - Van [90-93] 5.2, 5.9

- B350 1 Ton - Van [90-93] 5.2, 5.9

- B350 1 Ton - Van [94-94] 5.9L

- D150 1/2 Ton - Pickup [90-93] 3.9, 5.2, 5.9

- D250 3/4 Ton - Pickup [90-93] 5.2, 5.9

- D350 1 Ton - Pickup [90-93] 3.9, 5.9

- Dakota [90-93] 5.2, 5.9

- Dakota [98-02] 5.9L

- Durango [98-02] 5.9L

- Ram 1500 1/2 Ton - Pickup [94-97] 5.2, 5.9

- Ram 1500 1/2 Ton - Pickup [98-02] 5.2, 5.9

- Ram 1500 1/2 Ton - Van [94-97] 5.2, 5.7, 5.9

- Ram 1500 1/2 Ton - Van [98-02] 5.2, 5.7, 5.9

- Ram 1500 1/2 Ton - Wagon Van [94-97] 5.9L

- Ram 1500 1/2 Ton - Wagon Van [98-02] 5.2, 5.9

- Ram 2500 3/4 Ton - Pickup [94-97] 5.2. 5.9, 8.0

- Ram 2500 3/4 Ton - Pickup [98-02] 5.9, 8.0

- Ram 3500 1 Ton - Pickup [94-97] 5.9, 8.0

- Ram 3500 1 Ton - Pickup [98-02] 5.9, 8.0

- RamCharger-AD150 1/2 Ton [90-93] 5.2, 5.9

- RamCharger-AW150 1/2 Ton 4WD [90-93] 5.2, 5.9

- W150 1/2 Ton 4WD - Pickup [90-93] 3.9, 5.2, 5.9

- W250 3/4 Ton 4WD - Pickup [90-93] 5.2, 5.9

- W350 1 Ton 4WD - Pickup [90-93] 5.2, 5.9

- Grand Cherokee [93-98] 5.2, 5.9

Engin...

• Transmission Rebuild Kit for A518 - replacement component designed for proper fit and function
• Designed to support proper friction engagement, piston stroke and case sealing during a full transmission rebuild
• Package Includes: gasket and seal set, band, filter, bushing kit and steel plates. 10 items supplied together
• Steel and friction plate construction with formed rubber seals - designed for dependable service in the intended application. Ships at 7.20 lb, 17.88x12.38x3 in
• Intended for rebuilders performing a complete overhaul. Soak the friction material in the specified fluid before assembly and set to the service manual range
