5R110W [05-UP] Automatic Transmission Rebuild Kit w/ Frictions Overhaul

5R110W Rebuild Kit for 5R110W automatic transmissions, 2005 and later. Includes frictions, gasket and seal set, bushings and Automatic Transmission Filter for a complete overhaul. 26 pieces in 9 components.

• Tackling a full 5R110W rebuild means sourcing frictions for every clutch position: this kit covers all six packs so no clutch set is left out of the job.
• No steel plates are included in this kit. If your rebuild also requires steels, check your parts list and order them separately before starting the job.
• Twenty-three friction plates across six distinct clutch applications, each cut to its own tooth count and surface pattern: low reverse waffle 72t, direct smooth 32-groove 48t, forward 76t, overdrive brake smooth 32t, coast starburst 59t, intermediate 96t.
• Kit contains 26 pieces: 6 low reverse frictions, 4 direct frictions, 4 forward frictions, 3 overdrive brake frictions, 3 coast frictions, 3 intermediate frictions, 1 overhaul gasket kit without pistons, 1 pump bushing, 1 Automatic Transmission Filter. Ships at 7 lb.
• Before ordering, confirm the transmission code on the unit is 5R110W and that the build year is 2005 or later, since forward and intermediate frictions in this kit are rated from 05-UP.

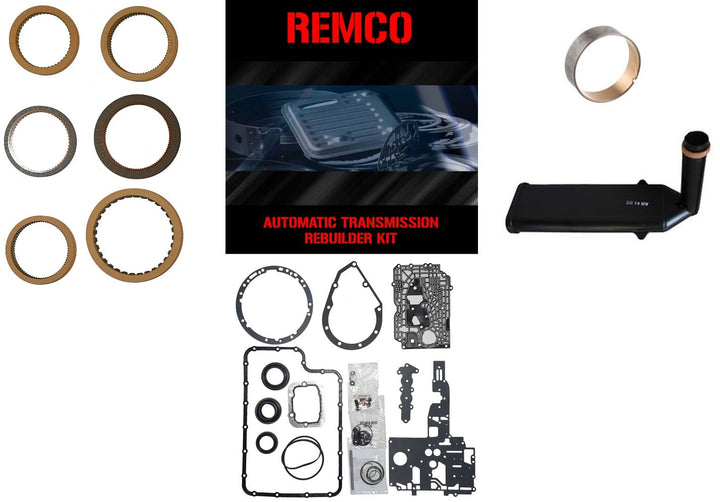

What's in the box

• 6 x Friction Clutch Plate, Low Reverse [.078 in Thick] 72 Teeth [Waffle]
• 4 x Friction Clutch Plate, Forward [.078 in Thick] 76 Teeth
• 4 x Friction Clutch Plate, Direct [.078 in Thick] 48 Teeth [Smooth W 32 Grooves]
• 3 x Friction Clutch Plate, Interm [.078 in Thick] 96 Teeth
• 3 x Friction Clutch Plate, Overdrive Brake [.078 in Thick] 32 Teeth [Smooth]
• 3 x Friction Clutch Plate, Coast [.078 in Thick] 59 Teeth [Starburst]
• 1 x Overhaul Gasket Kit, Without PISTONS
• 1 x Bushing, E4OD Pump
• 1 x Automatic Transmission Filter

Compatible vehicles

• Fits F-250 Super Duty [05-10], F-350 Super Duty [05-10], F-450 Super Duty [05-16], F-550 Super Duty [05-16], Excursion [05], E-350 Super Duty [05-16], E-450 Super Duty [05-16], E-350 Club Wagon [05], F-53 Motorhome Chassis [06-17], F-59 Commercial Stripped Chassis [11-17].
