5R55W 5R55S 5R55N [99-UP] Automatic Transmission Rebuild Kit w/ Frictions

5R55W 5R55S 5R55N Rebuild Kit for 5R55W, 5R55S and 5R55N automatic transmissions, 1999 and later. Includes frictions, pistons, band, gasket and seal set, bushings and Automatic Transmission Filter for a complete overhaul. 32 pieces in 11 components.

• Stop ordering parts one by one: this Rebuild Kit Less Steels covers frictions, bands, bushing, Automatic Transmission Filter, piston and overhaul gaskets in a single box, cutting bench time and last-minute runs to the parts counter.
• No steel plates are included in this kit. If your rebuild requires steels, source them separately before you order. Review your parts list against what this kit contains to avoid delays on the job.
• 26 friction discs spread across five clutch packs give this kit its depth: forward, direct internal, direct external, intermediate internal, intermediate external and overdrive clutches are all addressed in one order.
• Kit contains 32 pieces: 5 forward frictions, 10 direct frictions, 8 intermediate frictions, 3 overdrive frictions, 2 flex bands, 1 overhaul gasket kit, 1 pump bushing, 1 Automatic Transmission Filter (38mm tall pick-up tube), 1 bonded forward clutch piston. Weight: 4.99 lb.
• Before ordering, confirm your unit is a 5R55W, 5R55S or 5R55N and verify the model year falls within the [99-UP] range. The forward clutch piston in this kit is specifically dated [01-UP], so cross-check that detail against your unit.

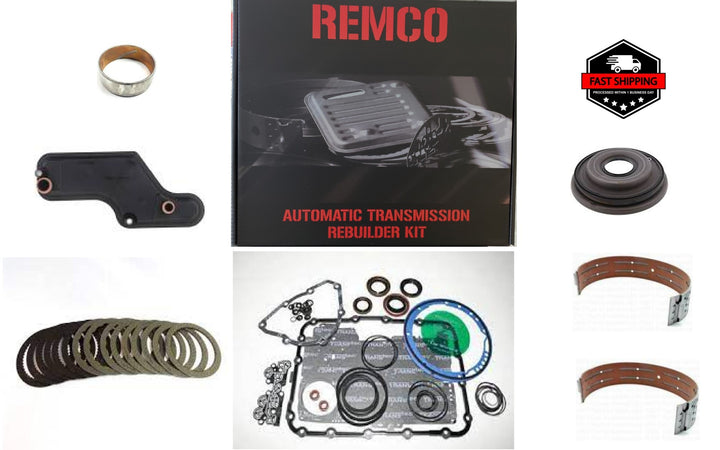

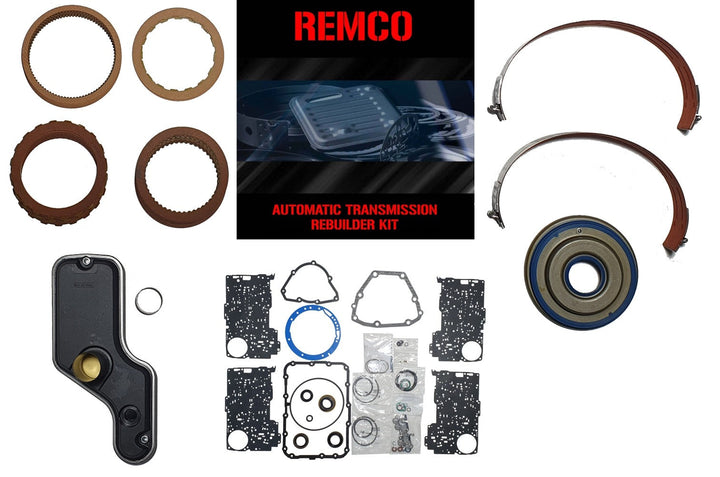

What's in the box

• 5 x Friction Clutch Plate, W S Direct [1-sided Internal Spline]
• 5 x Friction Clutch Plate, W S Direct [1-sided External Spline]
• 5 x Friction Clutch Plate, Forward [.069 in Thick] [5.230 in OD] [89 Teeth] W S
• 4 x Friction Clutch Plate, Intermediate [1-sided External Spline]
• 4 x Friction Clutch Plate, Intermediate [1-sided Internal Spline]
• 3 x Friction Clutch Plate, A4LD 4R44E 4R55E Overdrive [.069 in Thick] [Spiral Grooves]
• 1 x Piston, S W Forward Clutch [Bonded] [5.090 in OD] W Check Ball
• 2 x Band, A4LD 4R44E S Flex Red Intermediate Overdrive
• 1 x Overhaul Gasket Kit
• 1 x Bushing, Pump W S
• 1 x Automatic Transmission Filter, [38 Tall Pick-up Tube]

Compatible vehicles

• Fits Mustang [05-10], Thunderbird [02-05], Explorer [02-10], Explorer Sport Trac [05-10], S-Type [00-02], XK8 [01-02], XKR [00-02], Aviator [03-05], LS [00-06], Mountaineer [99-01].
