5R55W 5R55S 5R55N [02-UP] Automatic Transmission Rebuild Kit w/ Frictions

5R55W 5R55S 5R55N Rebuild Kit for 5R55W, 5R55S and 5R55N automatic transmissions, 2002 and later. Includes frictions, pistons, band, gasket and seal set, bushings and Automatic Transmission Filter for a complete overhaul. 23 pieces in 9 components.

• Transmission Rebuild Kit for 5R55W - replacement component designed for proper fit and function
• Designed to support proper friction engagement, piston stroke and case sealing during a full transmission rebuild

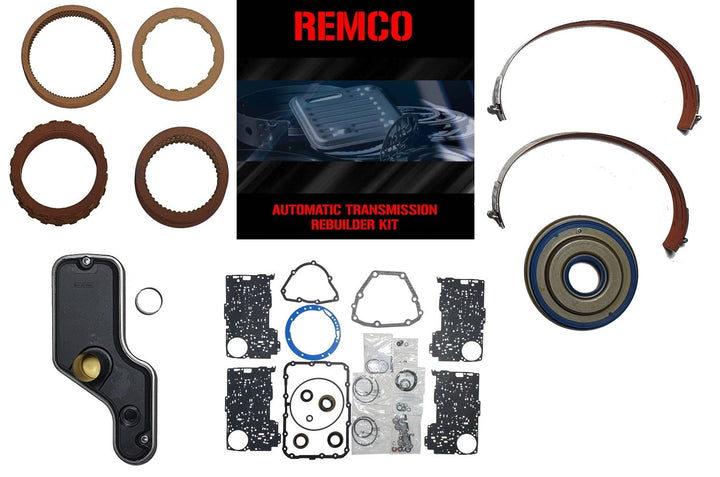

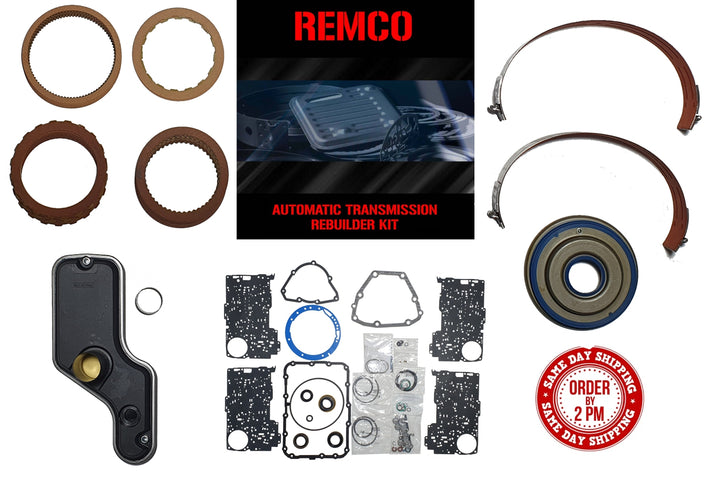

• Package Includes: friction plates, band, bushing kit, Automatic Transmission Filter, gasket and seal set and piston kit. 23 pieces in 9 components
• Steel and friction plate construction with formed rubber seals - designed for dependable service in the intended application. Ships at 7.00 lb, 18x16x5 in
• Intended for rebuilders performing a complete overhaul. Soak the friction material in the specified fluid before assembly and set to the service manual range

What's in the box

• 5 x Friction Clutch Plate, W S Direct [1-sided Internal Spline]
• 5 x Friction Clutch Plate, W S Direct [1-sided External Spline]
• 5 x Friction Clutch Plate, Forward [.069 in Thick] [5.230 in OD] [89 Teeth] W S
• 2 x Friction Clutch Plate, A4LD 4R44E 4R55E Overdrive [.069 in Thick] [Spiral Grooves]
• 1 x Piston, S W Forward Clutch [Bonded] [5.090 in OD] W Check Ball
• 2 x Band, A4LD 4R44E S Flex Red Intermediate Overdrive
• 1 x Overhaul Gasket Kit
• 1 x Bushing, Pump W S
• 1 x Automatic Transmission Filter, [2-1 4]

Compatible vehicles

• Fits Mustang [05-10], Thunderbird [02-05], Explorer [02-10], Explorer Sport Trac [05-10], S-Type [00-02], XK8 [01-02], XKR [00-02], Aviator [03-05], LS [00-06], Mountaineer [99-01].
