AW55-50SN RE5F22A [00-UP] Automatic Transmission Rebuild Kit w/ Frictions

AW55-50SN RE5F22A Rebuild Kit for AW55-50SN and RE5F22A automatic transmissions, 2000 and later. Includes frictions, gasket and seal set and Automatic Transmission Filter for a complete overhaul. 31 pieces in 8 components.

• Restoring an AW55-50SN means sealing every circuit and replacing worn friction material at once - this kit gives you both in a single order without hunting parts separately.
• This kit does NOT include steel plates. If your rebuild requires steels, check your parts list before ordering and source them separately to avoid delays on the job.
• Twenty-nine friction discs covering six distinct clutch and brake applications - c1 forward, c2 direct, b4 5th brake, underdrive, low-reverse (two specs) - all measured and matched to AW55-50SN tolerances.
• Contents: 7 c2 direct frictions, 6 b4 5th brake frictions, 4 underdrive frictions, 4 low-reverse frictions, 4 low-reverse alt frictions, 4 c1 forward frictions, 1 Automatic Transmission Filter CFI-005887, 1 overhaul gasket kit. Kit weighs 9 lb.
• Before ordering, confirm your unit code is AW55-50SN or AW55-51SN and that the vehicle year falls within the [00-UP] range covered by this kit.

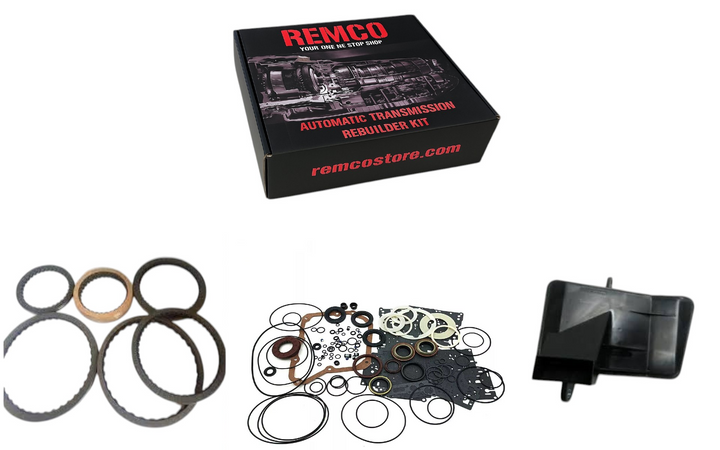

What's in the box

• 7 x Friction Clutch Plate, c2 Direct [.068 in Thick] 34 Teeth [4.254 in OD]
• 6 x Friction Clutch Plate, 51SN b4-5th Brake [1-2 Reverse] [.068 in Thick 47 Teeth [5.551 in OD]]
• 4 x Friction Clutch Plate, Low Reverse [.067 in Thick] [40 Teeth] [6.302 in OD] AW50-40 50-4
• 4 x Friction Clutch Plate, Underdrive [.067 in Thick] [34 Teeth] [4.482 in OD] AW50-40 50-42LE
• 4 x Friction Clutch Plate, AW50-40 50-42LE Low Reverse [.067 in Thick] [33 Teeth] [6.302 in OD] 98
• 4 x Friction Clutch Plate, c1 Forward [.068 in Thick 49 Teeth [5.375 in OD] AW55-51SN]

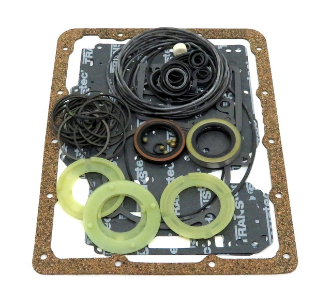

• 1 x Overhaul Gasket Kit, AW55-50 AW55-51SN

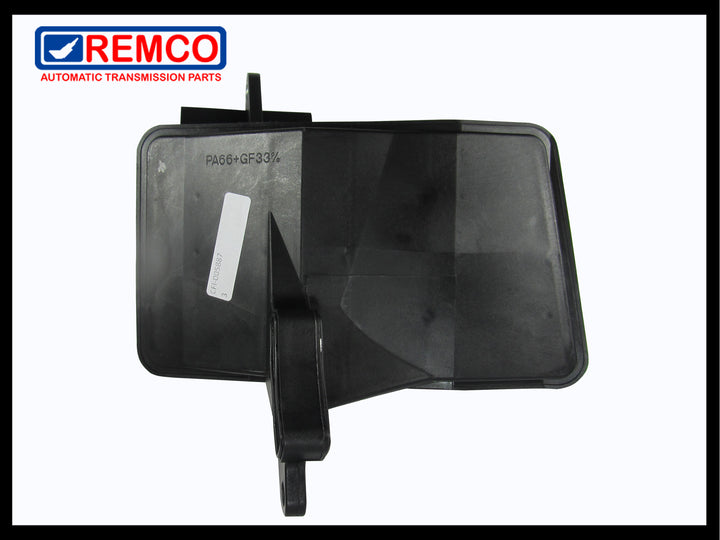

• 1 x Automatic Transmission Filter

Compatible vehicles

• Fits C30 [07-13], C70 [01-09], S80 [04-06].
