5R110W [03-UP] Automatic Transmission Pan Gasket Bottom Bonded Rubber

External leaks and lost line pressure both trace back to gaskets and seals that hardened with age and heat.

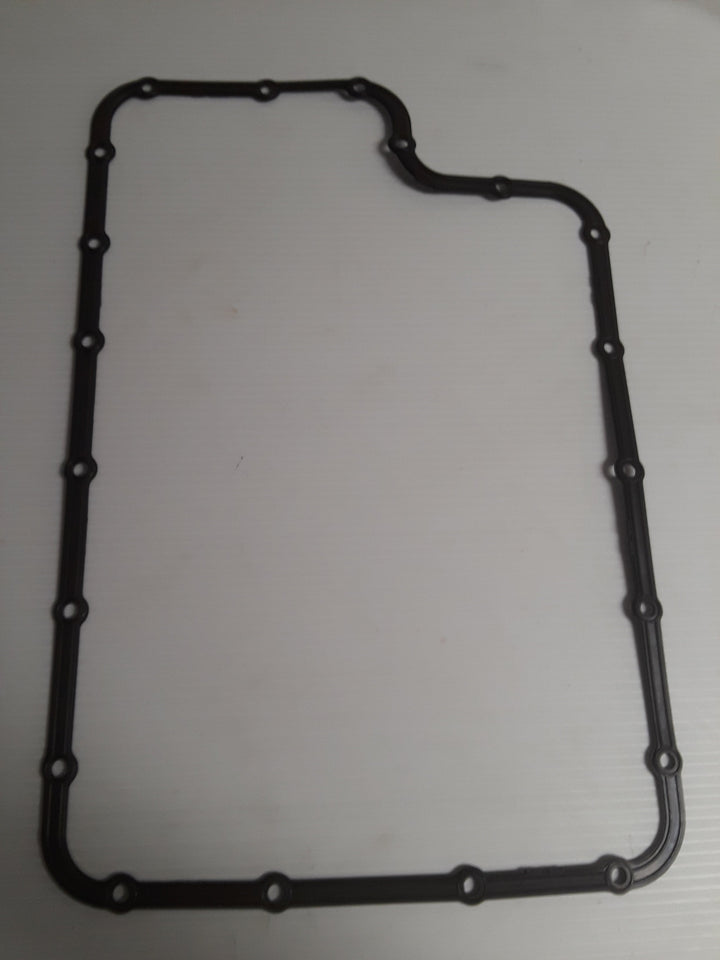

5R110W Bottom pan Bonded Rubber pan Gasket. Each seal is formed to the groove and bore it serves.

Seal lips have a direction, and installed backwards they leak from the first mile. The pistons are bonded rather than lip sealed. Shipping weight is 0.2 lb.

The parts list below is exactly what ships. Compare it against your teardown before ordering.

REMCO has supplied automatic transmission parts since 1991, and every order ships with its part listing so the receiving technician can check what arrived against what was ordered.

• Transmission Gasket for 5R110W - replacement component designed for proper fit and function
• Designed to support proper case sealing, port isolation and fluid retention during a reseal
• Package Includes: one transmission gasket as described, supplied loose for a reseal
• Gasket material cut to the stock bolt pattern and port layout - designed for dependable service in the intended application. Ships at 0.20 lb, 15x10x1 in
• Intended for shops resealing the unit. Clean both surfaces to bare metal and torque in sequence to the service manual figure

What's in the box

• 1 x Pan Gasket, 5R110W Bottom Pan Bonded Rubber

Compatible vehicles

• Fits F-250 Super Duty [03-10], F-350 Super Duty [03-10], F-450 Super Duty [03-16], F-550 Super Duty [03-16], Excursion [03-05], E-350 Super Duty [04-16], E-450 Super Duty [04-16], E-350 Club Wagon [04-05], F-53 Motorhome Chassis [06-17], F-59 Commercial Stripped Chassis [11-17].
