TH700-R4 4L60E [84-UP] Automatic Transmission Gasket Outer Servo Cover

For TH700-R4 automatic transmissions. Seals do not usually tear; they take a set, and a set seal leaks at exactly the pressure the circuit needs most.

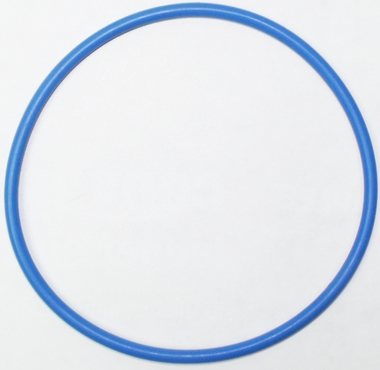

4L60E outer servo cover (outer) (blue) o-ring. Each seal is formed to the groove and bore it serves.

Seal lips have a direction, and installed backwards they leak from the first mile. Shipping weight is 1 lb.

The parts list below is exactly what ships. Compare it against your teardown before ordering.

REMCO has supplied automatic transmission parts since 1991, and every order ships with its part listing so the receiving technician can check what arrived against what was ordered.

• Transmission Gasket for 4L60E, TH700-R4 - replacement component designed for proper fit and function
• Designed to support proper case sealing, port isolation and fluid retention during a reseal
• Package Includes: one transmission gasket as described, supplied loose for a reseal
• Gasket material cut to the stock bolt pattern and port layout - designed for dependable service in the intended application. Ships at 1.00 lb, 18x16x5 in
• Intended for shops resealing the unit. Clean both surfaces to bare metal and torque in sequence to the service manual figure

What's in the box

• 1 x Servo, TH700-R4-4L60E Outer Cover [Blue] O-ring

Compatible vehicles

• Fits Express G1500 1/2 Ton - Van [96], S10 - Pickup [93-96], Silverado 3500 1 Ton - Pickup [01-03], Sierra 2500 3/4 Ton 2WD - Pickup [99-03], Rainier [04-06], Camaro [93-96], Corvette [93-96], Blazer S10 2WD [93-03], C1500 1/2 Ton - Pickup [93-96], C2500 3/4 Ton - Pickup [93-96], Express G2500 3/4 Ton - Van [97-03], K1500 1/2 Ton 4WD - Pickup [93-96].
