6L80E [06-UP] Automatic Transmission Gasket SUB Kit D Rings DRUM 1-2-3-4

A rebuild with reused seals is a rebuild that comes apart again.

6L80E d rings DRUM 1-2-3-4 3-5 REV. This is the sealing set a rebuild replaces from end to end.

Seal lips have a direction, and installed backwards they leak from the first mile. Shipping weight is 1 lb.

The parts list below is exactly what ships. Compare it against your teardown before ordering.

REMCO has supplied automatic transmission parts since 1991, and every order ships with its part listing so the receiving technician can check what arrived against what was ordered.

• Transmission Gasket for 6L80E - replacement component designed for proper fit and function
• Designed to support proper case sealing, port isolation and fluid retention during a reseal
• Package Includes: one transmission gasket as described, supplied loose for a reseal
• Gasket material cut to the stock bolt pattern and port layout - designed for dependable service in the intended application. Ships at 1.00 lb, 11.25x9.75x0.5 in
• Intended for shops resealing the unit. Clean both surfaces to bare metal and torque in sequence to the service manual figure

What's in the box

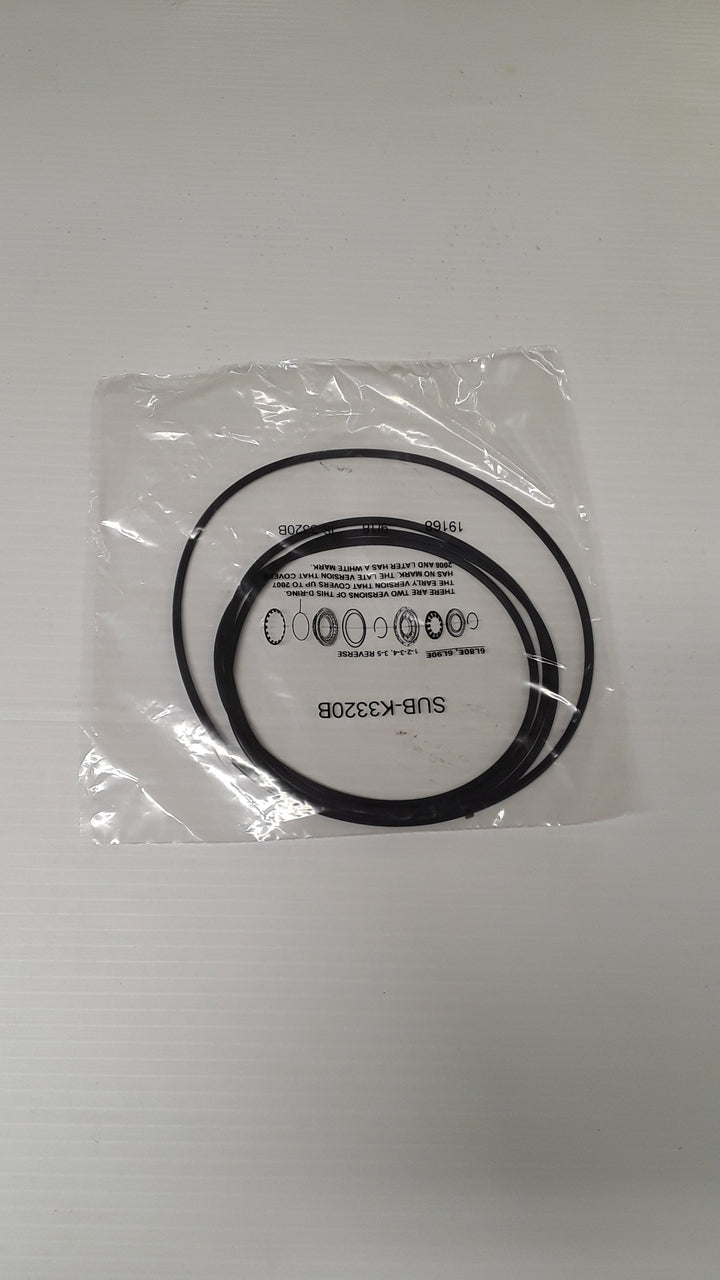

• 1 x Drum, 6L80E SUB KIT D Rings 1-2-3-4 3-5 Reverse

Compatible vehicles

• Fits CTS-V [06-15], Escalade/ESV/EXT [07-15], SRX [06-09], STS [06-11], XLR [06-11], Camaro [10-13], Corvette [06-11], SS [14-17], Avalanche [08-13], Express 2500 [10-11], Express 3500 [10-11], Silverado 1500 1/2 Ton [07-09].
